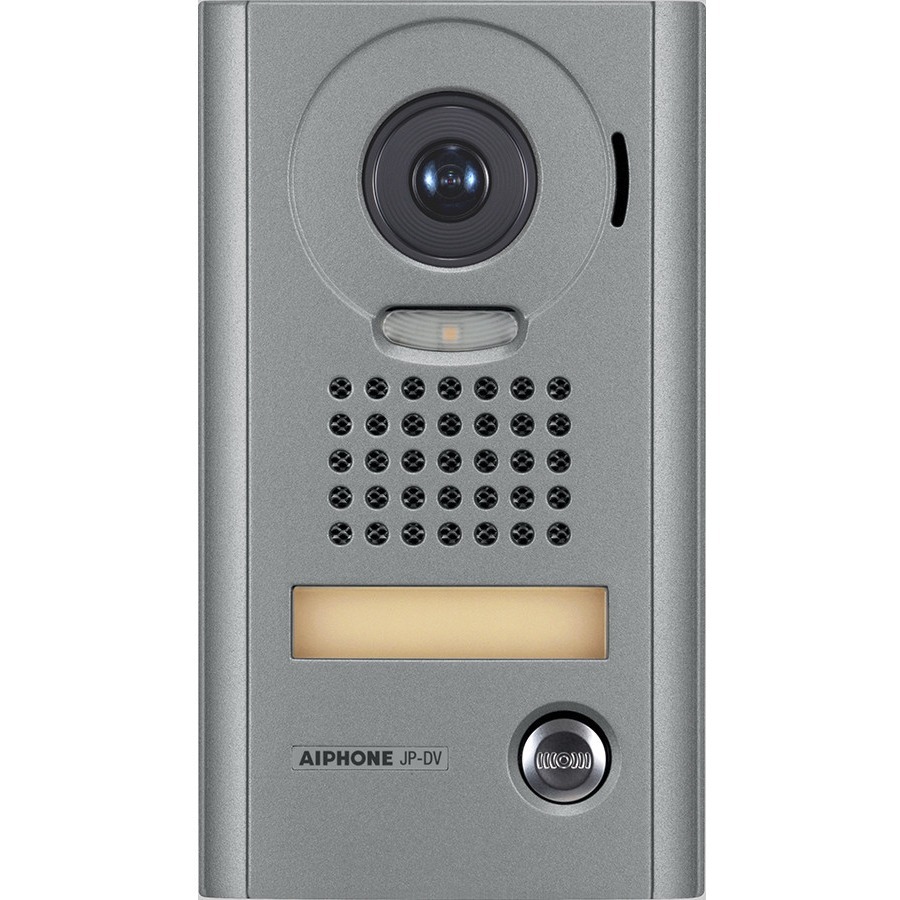

Aiphone JP-DV Telecommunication Equipment

Aiphone - Aiphone JP-DV Video Door Phone - CMOS170° Horizontal - 100° Vertical5 lux - 2-wire - Full-duplex
  • Color video camera with audio intercom
  • PanTilt Zoom camera lens
  • 2-way hands-free voice communication with JP master/sub stations
  • Call button to initiate call to master(s)
  • White LED illuminator for low light conditions
  • Simple 2-conductor wiring
  • Surface (JP-DA, JP-DV) or fl ush mount (JP-DVF) styles available
  • 330' wiring distance to Master on 18AWG 2 conductor cable
Read More
$413.28
In Stock
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Aiphone Parts Accessory Model Overview
Products and parts from Aiphone.
Aiphone JP-DV Telecommunication Equipment Overview
The JP-DA is a surface mount plastic color video door station. The JP-DV is an aluminum die cast surface mount color video door station. The JP-DVF is a stainless steel fl ush mount color video door station. All of these units work with the JP Series and connect to the master station using an 18AWG 2-conductor solid core cable. Each unit includes a camera, microphone, speaker, and call button. Tamper resistant screws are provided for mounting the JP-DV and JP-DVF units.

When the call button on the door station is pushed, the inside master station(s) ring and the video monitor comes on with the image from the door station's camera. The master station user will initiate communication. The person at the door station speaks hands-free.

The JP door stations can be located up to 330' from the master monitor using 18AWG 2 conductor solid core cable (Aiphone wire #871802). Additional equipment is available to extend the wire distance up to 980' to the door (JPW-BA long distance adaptor and 851602 cable).
Technical Information
Communication Mode:
Full-duplex
Wiring Type:
2-wire
Maximum Wiring Distance:
330 ft
Camera
Image Sensor Type:
CMOS
Minimum Illumination:
5 lux
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
100°
Power Description
Input Voltage:
24 V DC
Physical Characteristics
Product Material:
Die-cast Aluminum
Durability:
Weather Resistant
Height:
6.8"
Width:
3.9"
Depth:
1"
Weight (Approximate):
1.43 lb
Miscellaneous
Application/Usage:
Door Entry
Country of Origin:
Thailand
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0790143597344, 0993248881862
UPC: 790143597344, 993248881862
EAN: 0790143597344, 0993248881862
UNSPSC: 43191513
