Form Factor:
- Wall Mountable
- Surface-mountable
Height:
4.3"
Width:
4.9"
Depth:
2.4"
Weight (Approximate):
7.36 oz
Aiphone Parts Accessory Model Overview
Products and parts from Aiphone.

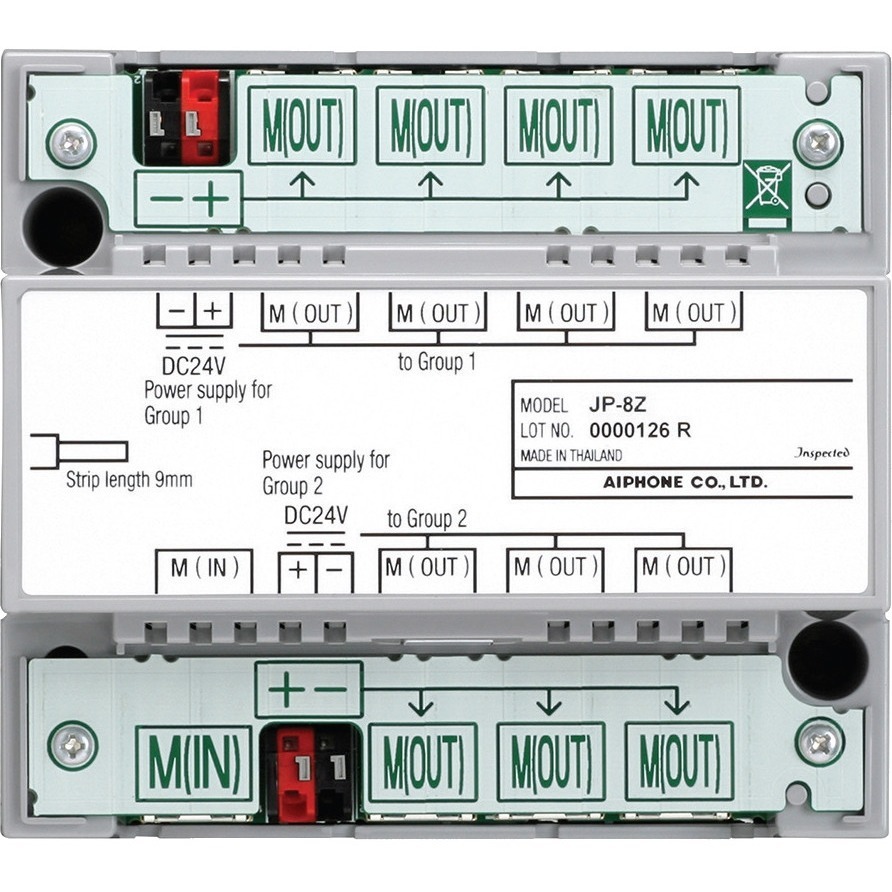

Aiphone JP-8Z Telecommunication Equipment Overview
The JP-8Z is a distribution adaptor for the JM Series. The adaptor is utilized when homerun wiring is desired. The JP-4MED master station and each JP-4HD sub master station will connect to this adaptor using CAT-5e/CAT-6 cable. The JP-8Z can surface mount using the mounting holes or with the W-DIN11 mounting rail. One or two PS-2420UL power supplies are used, depending on how many sub master stations are connected.
Physical Characteristics
Miscellaneous
Additional Information:
- Temperature: 32-104°F (0-40°C)
- Wire Type: CAT-5e / CAT-6 for stations 18AWG 2 conductor for power
- Power Source: 24V DC - use PS-2420UL (1 per 4 JP-4HD)
- Homerun up to 7 sub monitors
- 165' wiring distance to each JP-4HD
Application/Usage:
Intercom System
Compatibility:
Aiphone Sub Masters:
- JP Series
- JM Series
Item Numbers
GTIN:
0790143597566
UPC:
790143597566
EAN:
0790143597566
UNSPSC:
39121900
