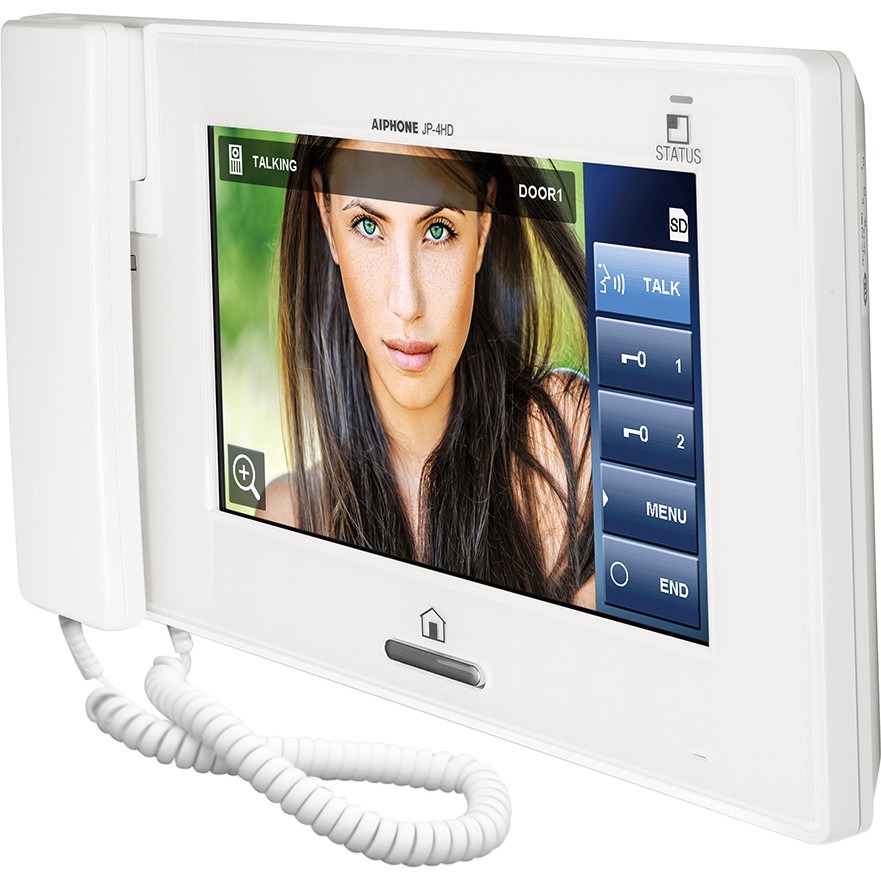

Aiphone JP-4HD Telecommunication Equipment

Part Number: JP-4HD
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$1,596.00
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Communication Mode
Full-duplex
Maximum Wiring Distance
165 ft
Screen Size
7"
Display Screen Type
TFT LCD

Product Description:

  Aiphone JP-4HD Video Door Phone Sub Station - 7" LCDFull-duplex
Explore all Aiphone Parts Accessories
Add to Quote
Aiphone JP-4HD Telecommunication Equipment
Aiphone JP-4HD Telecommunication Equipment

Aiphone Parts Accessory Model Overview

Products and parts from Aiphone.
Aiphone JP-4HD Telecommunication Equipment Overview
The JP-4HD is a video sub master station for use with the JP-4MED master station. A maximum of 7 sub master stations can be used in the JP Series. The JP-4HD offers a 7" color touchscreen LCD and allows for handset (duplex) and hands-free (VOX) communication. This unit is equipped with a door release button for the user to allow visitor entry. The JP-4HD is also equipped with PTZ and brightness controls, giving the user control of the door station camera angle and camera lighting for better visibility. The JP-4HD connects to either the master station or JP-8Z distribution unit using CAT-5e / CAT-6 cable.
Technical Information
Communication Mode:
Full-duplex
Maximum Wiring Distance:
165 ft
Display & Graphics
Screen Size:
7"
Display Screen Type:
TFT LCD
Screen Resolution:
800 x 480
Touchscreen:
Yes
Power Description
Input Voltage:
24 V DC
Physical Characteristics
Height:
5.7"
Width:
10"
Depth:
1.2"
Weight (Approximate):
1.72 lb
Miscellaneous
Application/Usage:
Door Entry
Additional Information:
  • Picture Memory: Internal / Built-In: record max. 20 calls (6 images per call) with up to 5 calls protected from overwriting SD / SDHC card: record max. 1,000 calls (40 images per call) with up to 100 calls protected from overwriting
  • Door Release: N/O dry contact, 24V AC/DC, 500mA - use EL-12S (use RY-24L for larger contact rating and use RY-3DL for 3~4 doors)



Country of Origin:
Thailand
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0013580401426, 0053926347544, 0790143596262, 4968249596264
UPC: 013580401426, 053926347544, 706919623216, 790143596262
EAN: 0013580401426, 0053926347544, 0790143596262, 4968249596264
UNSPSC: 43191513
