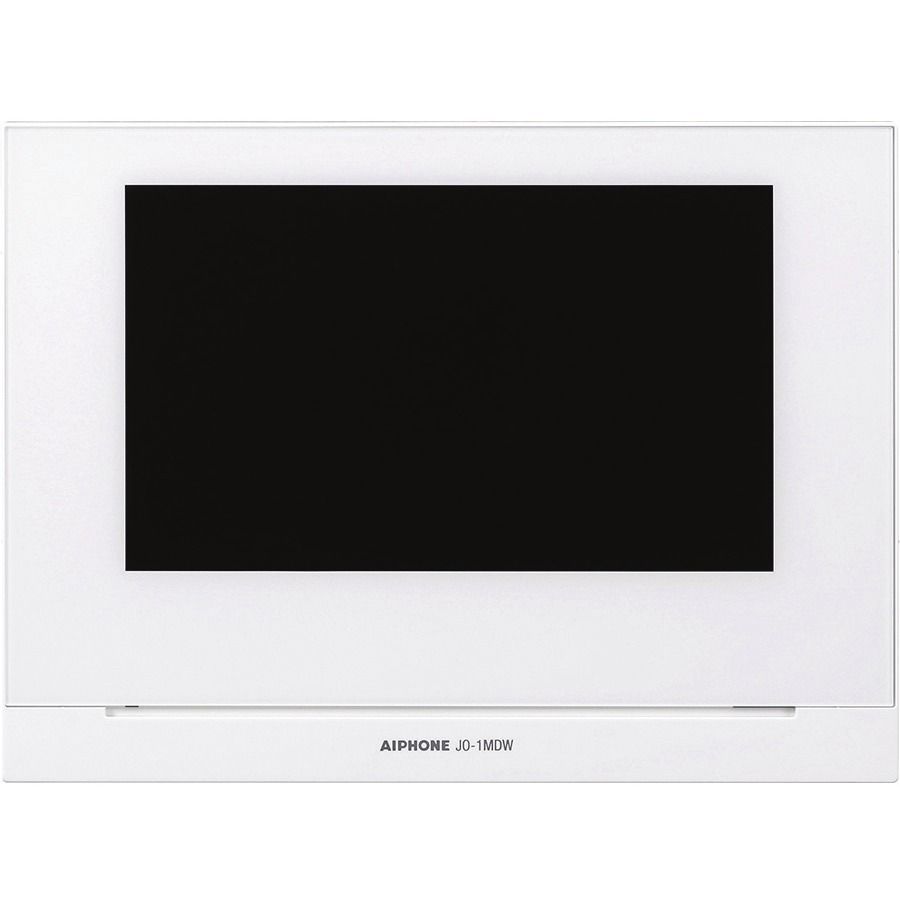

Aiphone JO-1MDW Telecommunication Equipment

Aiphone - Aiphone JO-1MDW App Enabled 7" Touchscreen Monitor - 7" TFT LCD2-wire - ABS Plastic - Door Entry
  • App capable master can replace existing JO-1MD to provide mobile connectivity
  • Talk to visitors at your door from your mobile device
  • Connect up to 8 mobile devices, like smartphones or tablets, per system
  • On-site monitor ensures all calls get answered or recorded
  • Store and view calls with no added fees using onboard memory
  • Add a MicroSD card to increase memory to max 32G
  • Activate door release on site or off (With mobile app)
  • 7" Touchscreen makes identification easy
  • Zoom in for greater details
Read More
$737.52
Add to Quote
Aiphone Parts Accessory Model Overview
Products and parts from Aiphone.
Aiphone JO-1MDW Telecommunication Equipment Overview

The best of both worlds!

A call from your video doorbell rings the JO-1MDW monitor and up to eight smartphones or tablets. After answering the call, you can see and speak with your visitor then easily unlock the door with the touchscreen monitor or using the slider button on the app.

The JO-1MDW is unique as it is a hardwired monitor to ensure calls are answered even when the internet is down or slow, while the mobile app establishes a connection when you're on the go. The monitor features built-in memory that can be manually activated to record video from the doorbell or set to automatically record all calls. Expand storage using the MicroSD card slot and view recorded calls on both the monitor and the app.

All this security and convenience is backed by Aiphone's quality and award-winning customer support. Our commitment to your satisfaction is equivalent to our commitment to supplying quality products. Second to none.

Use Aiphone when you need unparalleled product quality. Use the JO Series when you need on-the-go security and convenience in a single package.

Technical Information
Wiring Type:
2-wire
Maximum Wiring Distance:
330 ft
Display & Graphics
Screen Size:
7"
Display Screen Type:
TFT LCD
Touchscreen:
Yes
Power Description
Input Voltage:
18 V DC
Physical Characteristics
Product Color:
White
Product Material:
ABS Plastic
Height:
6.1"
Width:
8.3"
Depth:
1.1"
Weight (Approximate):
1.37 lb
Miscellaneous
Application/Usage:
Door Entry
Compatibility:
Aiphone JO-1FD Expansion Station
Additional Information:
  • Door Release: N/O dry contact, 24V AC/DC, 500mA (use RY-18L for larger contact)
  • Internal Call Recording: 10 calls max. @ 10 seconds/call
  • Recording: First in, first out Save up to 5 calls(max.)
  • Memory Expansion: micro SDHC card: 4GB-32GB (Not Supplied by Aiphone)
  • Call Recording with max memory: 1,000 calls(max.)(10 seconds/call) First in, first out Save up to 100 calls(max.)
  • Wireless Protocol: IEEE802.11b/g/n
  • Download Minimum Bandwidth: 1.3MBs
  • Upload Minimum Bandwidth: 1.3MBs
  • Communication style: Handsfree or PTT
Certifications & Standards:

IP54

Country of Origin:
Thailand
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43191513
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Aiphone JO-1MDW Telecommunication Equipment is also known as AIP-JO1MDW
