Device Supported:
- Entrance Panel
- Intercom System
Aiphone IXGW-LC Access Control Reader
Part Number:
IXGW-LC
Model:
Parts
Aiphone Parts Accessory Model Overview
Products and parts from Aiphone.
Aiphone IXGW-LC Access Control Reader Overview

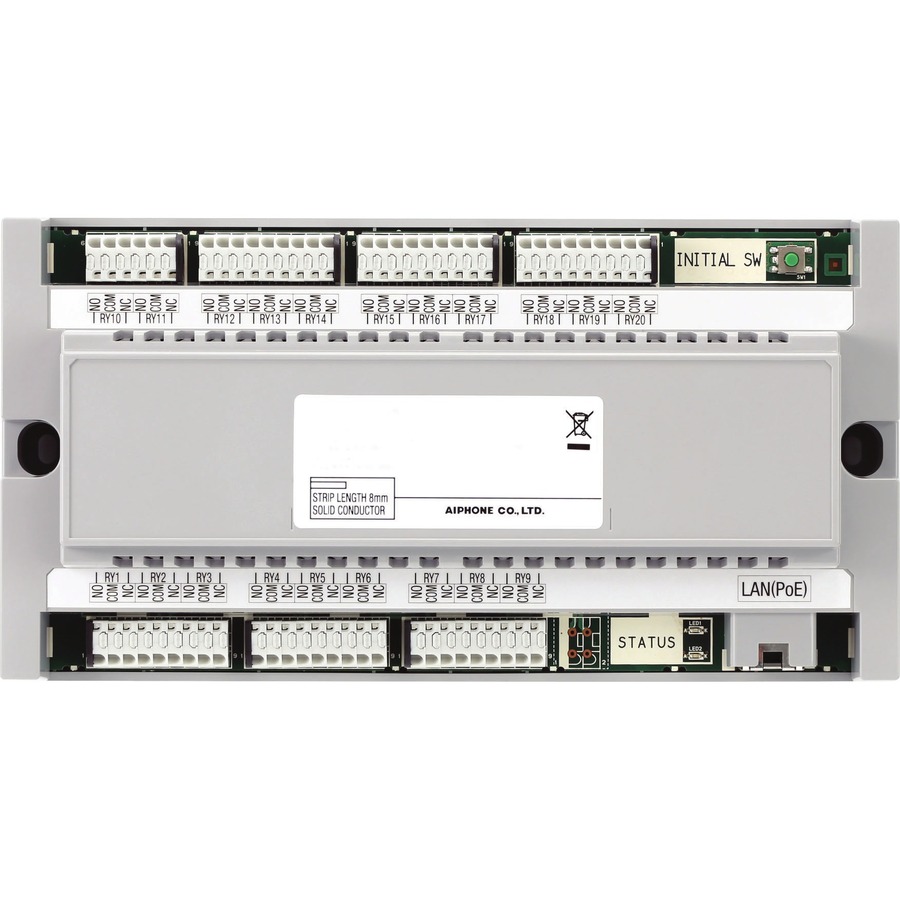

IXGW-LC-RY20 Relay Adaptor
The IXGW-LC-RY20 is a relay adaptor for the IXG Series IP multi-tenant video intercom system. This adaptor provides a Form C dry contact closure used for door release when paired with an IXG-DM7-HID entrance station.
The IXGW-LC-RY20 is equipped with 20 Form C relays. Up to 16 adaptors, along with the IXGW-LC, can be included in a building. Each relay can be configured and assigned to a specific IXG-DM7-HID entrance station. Individual relay contacts will activate when the door release for that entrance is activated. The elevator recall button on the IXG-2C7 tenant station can be used to activate a contact to recall the elevator to that specific floor.
Technical Information
Physical Characteristics
Height:
4.3"
Width:
8.3"
Depth:
2.4"
Miscellaneous
Additional Information:
- Power Source: PoE
- Consumption: 2.1W standby, 4.4W max.
- LAN: Ethernet (10BASE-T, 100BASE-TX)
- Packet Delivery: Unicast, Multicast
- Protocol: IPv4/v6, TCP, UDP, HTTP, HTTPS, IGMP, MLD, FTP, DHCP NTP, , DNS, TLS
- Encryption: TLS 1.0, 1.1, 1.2
- Operating Temp: 14° ~ 122°F (-10° ~ 50°C)
Application/Usage:
- Entrance
- Door
- Building
Compatibility:
Aiphone Products:
- IXG Series IP Multi-tenant Video Intercom System
- IXG-DM7-HID IP Video Entrance Station
Environmentally Friendly:
Yes
Environmental Certification:
WEEE
Questions? Get help from
an ID Expert!
an ID Expert!
The Aiphone IXGW-LC Access Control Reader is also known as
AIP-IXGWLC
