Communication Mode:
Full-duplex
Aiphone IXG-DM7-HID Access Control Reader
Part Number:
IXG-DM7-HID
Model:
Parts
Aiphone Parts Accessory Model Overview
Products and parts from Aiphone.

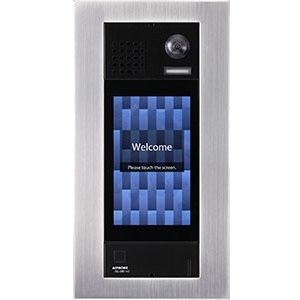

Aiphone IXG-DM7-HID Access Control Reader Overview
The IXG-DM7-HID is an IP video entrance station for the IXG Series multi-tenant system. It is equipped with a 7 inch LCD directory screen that is used for calling a tenant or entering an access entry code. Up to 9,999 names/numbers can be stored in the station. A motion sensor will activate the screen when the visitor approaches. Once a call is placed, the visitor will be displayed on the tenant station or app using the 720p HD camera. The station is equipped with an HID card reader for card access. It supports Prox or iCLASS® 26 bit cards. Up to 10 entrance stations can be within a unit (i.e. interior, exterior) with multiple units allowed in the system.
Technical Information
Display & Graphics
Screen Size:
7"
Display Screen Type:
TFT LCD
Touchscreen:
Yes
Power Description
Power Consumption:
11.60 W
Physical Characteristics
Product Material:
Stainless Steel
Height:
13.7"
Width:
7.2"
Depth:
2"
Miscellaneous
Application/Usage:
- Commercial Building
- Parking Lot
- Door Entry
Certifications & Standards:
- IP65
- IK08
- IEEE 802.3af Class 0
Country of Origin:
Thailand
Item Numbers
UNSPSC:
43191513
