Aiphone IX-SSA-2RA Access Control Equipment

Aiphone - Aiphone IX-SSA-2RA Intercom Sub Station - Cable - Flush Mount
  • SIP 2.0 compliant
  • 2 call buttons (IX-SSA-2RA), 1 call button (IX-SSA-RA)
  • ADA compliant raised lettering and Braille signage
  • Slot for micro SD card (not provided by Aiphone)
  • Weather and vandal resistant (IP65)
  • 2 contact outputs
  • 6 trigger inputs
  • Stainless steel
  • 802.3af PoE compliant
  • RJ45 in/out with PoE pass through (802.3at Type 2 PoE+)
Read More
$1,641.36
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Aiphone Parts Accessory Model Overview
Products and parts from Aiphone.
Aiphone IX-SSA-2RA Access Control Equipment Overview

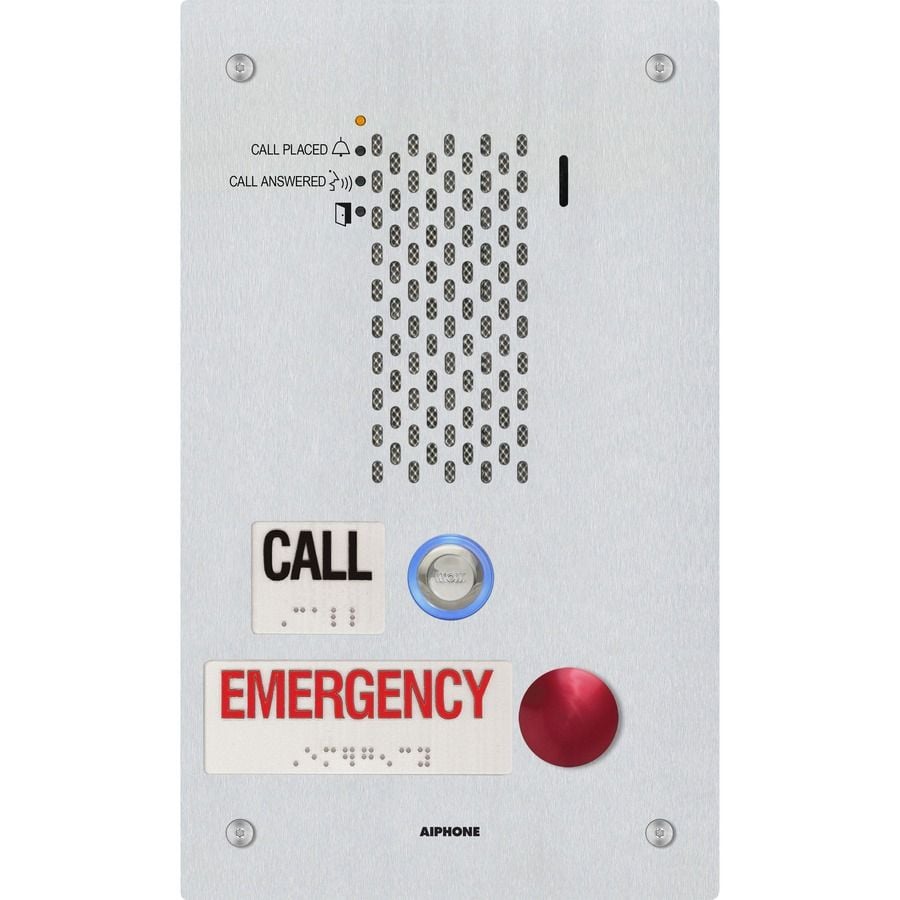

The IX-SSA-RA and IX-SSA-2RA are flush mount, IP addressable emergency call stations. The IX-SSA-RA has a single emergency call button and placard with raised lettering and Braille signage. The IX-SSA-2RA has an emergency button and a standard call button with a call and emergency placard with raised lettering and Braille signage. The emergency button can be programmed to call up to 20 different stations. The call button can call up to 20 different stations. Both units are weather resistant (IP65) and connect to a network using Cat-5e/6 cable. Both stations are SIP compliant. Audio can be captured on a micro SD card. The stations have a 600Ω output that can be used for paging or communication. There are 2 contact outputs that can be programmed to trigger during door release, when the 600Ω output is used, or based on the status of the station. Sound files can be uploaded for custom messages to be played during certain functions. The stations have audible and visual indications for calling, communication, and door release.
Network & Communication
Connectivity Technology:
Cable
Power Description
Input Voltage:
24 V DC
Power Source:
  • PoE
  • Power Supply
Physical Characteristics
Form Factor:
Flush Mount
Height:
11.7"
Width:
7"
Miscellaneous
Application/Usage:
Door Entry
Item Numbers
UNSPSC: 43221525
Questions? Get help from
an ID Expert!

How many IDs will you
print per year?

The Aiphone IX-SSA-2RA Access Control Equipment is also known as AIP-IXSSA2RA
