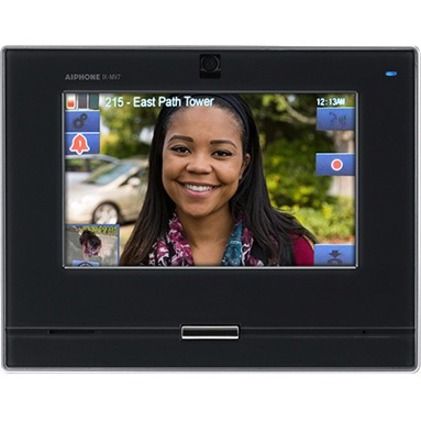

Aiphone IX-MV7-B Access Control Equipment

Aiphone - Aiphone IX-MV7-B Video Master Station - 7" TFT LCD - CMOS5 lux - Door Entry
  • SIP 2.0 Compliant allowing integration with Cisco Unified Call Manager®
  • ONVIF® Profile S Compliant
  • 802.3af PoE, Class 0
  • 7" TFT LCD touchscreen
  • Use built-in cameras for two-way master-to-master video conferencing (w/ privacy shutter)
  • Hands-free or push-to-talk communication
  • 8 customizable speed dial buttons
  • Turn your master into a virtual receptionist - ideal for unmanned waiting areas or unstaffed lunch hours
  • Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
  • Picture-in-Picture (PIP) allows an ONVIF Profile S IP camera and an Aiphone video intercom to be viewed simultaneously
Read More
$1,661.52
In Stock
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Aiphone Parts Accessory Model Overview
Products and parts from Aiphone.
Aiphone IX-MV7-B Access Control Equipment Overview
The IX-MV7 is an IP addressable hands-free master station with a 7" color touchscreen. It can be wall or desk mounted (desk stand included). It connects to a network using Cat-5e/6 cable and is SIP compliant. Audio and video of active conversations can be captured and stored on a microSD™ card. Each master station has an address book of 500 stations and can monitor a single station or scan monitor several stations with-in the address book. The master station offers line supervision and a scheduled device check of stations in its address book. It has the ability to page all units or groups of units and offers bell scheduling with 50 events per day. The master station has 8 speed dial buttons that can be used to call, page, monitor, or control a contact closure. It has a built in camera with privacy shutter. The master station can view a selected intercom's camera as well as an associated ONVIF Profile S camera by using the picture in picture function. It has the ability to release the door that is associated with the station that it is communicating with. Stations can be called by using the directory or by direct dialing the stations number. The master is available in black (IX-MV7-B) or white (IX-MV7-W).
Display & Graphics
Screen Size:
7"
Display Screen Type:
TFT LCD
Touchscreen:
Yes
Camera
Image Sensor Type:
CMOS
Minimum Illumination:
5 lux
Power Description
Power Consumption:
4.32 W
Physical Characteristics
Product Color:
Black
Height:
6.8"
Width:
8.7"
Depth:
1.3"
Miscellaneous
Package Contents:
  • IX-MV7-B Video Master Station
  • Desk Stand
  • Bracket
Application/Usage:
Door Entry
Certifications & Standards:
  • SIP 2.0
  • ONVIF Profile S
  • IEEE 802.AF PoE, Class 0
  • IEEE 802.1X
  • ONVIF Profile S
Audio Codec:
  • G.711 (µ-law
  • A-law)
  • G.722
Video Codec:
  • H.264/AVC
  • Motion JPEG
Country of Origin:
Thailand
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43191513
Questions? Get help from
an ID Expert!

How many IDs will you
print per year?

The Aiphone IX-MV7-B Access Control Equipment is also known as AIP-IXMV7B
