Aiphone IX-DVF-4 Access Control Equipment

The Aiphone IX-DVF-4 Access Control Equipment has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

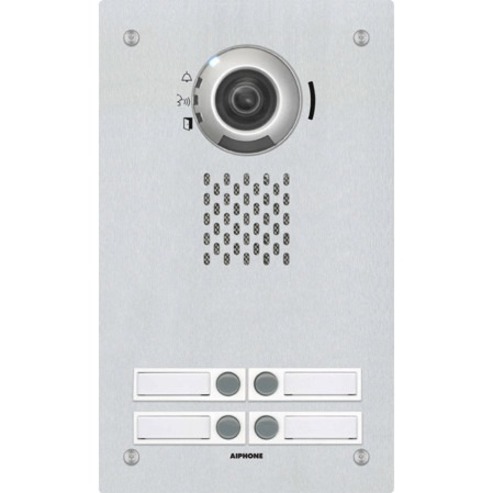

Aiphone - IX-DVF-4 - IP Video Door Station, 4 Call Buttons, SIP Compatible, Vandal Resistant, Flush Mount, Stainless Steel

Use SIP to integrate with Cisco Unified Call Manager® and answer calls off-site
ONVIF® Profile S Compliant
802.3af PoE with PoE pass through (802.3at Type 2 PoE+)
1.23 megapixel fixed color video camera
Camera vertical adjustment +15º, 0º, or -8º (manual)
Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
IP65 rated, weather resistant
Stainless steel faceplate
2 contact outputs (door release, external signaling)
2 additional trigger inputs (4 used by call buttons)

Need a different version? See all Aiphone Parts Accessories

Aiphone Parts Accessory Model Overview

Products and parts from Aiphone.

Aiphone IX-DVF-4 Access Control Equipment Overview

4 Button SIP Compatible Flush Mounted IP Video Door Station Vandal Resistant Stainless Steel Faceplate

Camera

Image Sensor Type:

CMOS

Camera Resolution:

1.2 Megapixel

Minimum Illumination:

5 lux

Vertical Viewing Angle:

15°

Physical Characteristics

Product Material:

Stainless Steel

Durability:

Height:

11.7"

Width:

Miscellaneous

Package Contents:

Application/Usage:

Additional Information:

Power Source: PoE (IEEE 802.3af class 0)
Power Draw: 5.28 Watts
Audio Codec: G.711 (µ-law, A law), G.722
Video Codec: H.264/AVC, motion JPEG
Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
Port Security: IEEE 802.1X
Operating Temp: -40° - 140°F (-40° - 60°C)
Mounting: Flush mounted or surface mount

Country of Origin:

United States

Item Numbers

UNSPSC: 43191513

Questions? Get help from
an ID Expert!

The Aiphone IX-DVF-4 Access Control Equipment is also known as AIP-IXDVF4
