Maximum Wiring Distance:
980 ft
Aiphone AX-DVP Access Control Equipment
Part Number:
AX-DVP
Model:
AX-DVP
Aiphone AX-DVP Access Control Equipment Model Overview

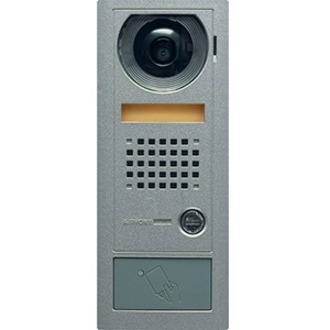

The AX-DV-P is a vandal resistant, surface mount door station used with the AX open voice, color video entry series. The unit has an embedded HID card reader with a standard Wiegand output to an access control panel. The AX-DV-P is wired using CAT-5e cable to ease installation. The unit mounts directly to wall surface. The AX-DV-P faceplate is cast aluminum, the camera is protected with a clear Lexan lens cover. The AX-DV-P features a color CCD camera, speaker and mic for communication, illuminated call directory and white illumination LED for low light conditions.
Aiphone AX-DVP Access Control Equipment Overview
Video Door Station W/HID® Reader - The AX-DV-P is a vandal resistant, surface mount door station used with the AX open voice, color video entry series. The unit has an embedded HID® card reader with a standard Wiegand output to an access control panel. The AX-DV-P is wired using CAT-5e cable to ease installation. The unit mounts directly to wall surface. The AX-DV-P faceplate is cast aluminum, the camera is protected with a clear polycarbonate lens cover. The AX-DV-P features a color CCD camera, speaker and mic for communication, illuminated call directory and white illumination LED for low light conditions.
Technical Information
Camera
Image Sensor Type:
CCD
Minimum Illumination:
5 lux
Power Description
Input Voltage:
24 V DC
Physical Characteristics
Height:
9.6"
Width:
3.9"
Depth:
1"
Weight (Approximate):
15.84 oz
Miscellaneous
Additional Information:
- CAT-5e wiring homerun from each station
- Up to 8 masters and 120 remote stations
- Two talk channels
- PTT or VOX operation
- Master-to-master selective calling
- All Call between master stations only
- Composite video output from CEU and master station
- Standard or priority call levels from door stations
- Communication privacy
- Electronic access control integration
- CCTV system integration
- Selective remote control (e.g. door release)
- PC interface for programming and event logging
- Scan monitoring of selected remote stations
- Rack or wall mountable CEU
- Calls queued in order of priority and call-in time
- Compatible with IE Series door stations
Item Numbers
GTIN:
0788255381005, 0790143415464
UPC:
788255381005, 790143415464
EAN:
0788255381005, 0790143415464
UNSPSC:
43191513
