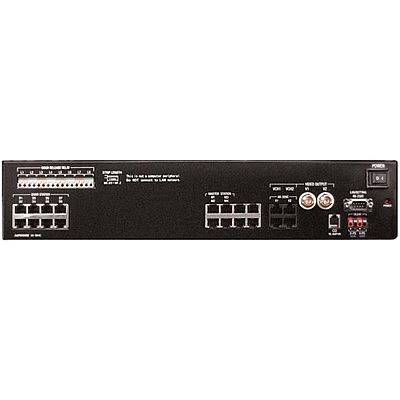

Aiphone AX-084C Access Control Equipment

Aiphone TouchScreen Series - CCU (4 MASTER - 24 DOOR)
  • Wiring hub for AX system using CAT-5e cable
  • Controls all functionality of AX system
  • 4 Master station ports (RJ45)
  • 8 Door / sub station ports (RJ45)
  • 2 24V DC power supply input terminals
  • 8 Door release dry contacts (24V AC/DC 500mA)
  • 2 BNC composite video outputs and video switching triggers
  • Outputs for AX-320C add-on exchanges to support the maximum capacity of 104 doors (3 AX-320C's max.)
  • CO Line transfer output to Viking K-1900-5 programmable auto-dialer Rack mountable
  • Programmable functionality via supplied software
Read More

Need a different version? See all Aiphone TouchScreen Series Accessories

$1,738.80
In Stock
Add to Quote
Add to My Shopping List Add to Compare
Aiphone AX-084C Access Control Equipment
Aiphone AX-084C Access Control Equipment
Aiphone AX-084C Access Control Equipment
Physical Characteristics
Product Color:
Black
Product Material:
Metal
Form Factor:
  • Wall Mountable
  • Surface-mountable
  • Desk Mountable
  • Rack-mountable
Height:
3.5"
Width:
18.9"
Depth:
13.2"
Weight (Approximate):
10.35 lb
Miscellaneous
Package Contents:
  • AX-084C Intercom Central Exchange Unit
  • Mounting Screws (For 19-inch Rack Mounting)
  • USB to Serial Programming Cable With Driver
  • Rack/Wall Mounting Brackets
  • Mounting Screws
  • QuikStart Guide
  • Installation CD
Additional Information:
  • Eight Door release dry contacts (24V AC/DC 500mA)
  • Wiring hub for AX system using CAT-5e cable
  • Two BNC composite video outputs and video
  • Two 24V DC power supply input terminals
  • Controls all functionality of AX system
  • Eight door/sub station ports (RJ45)
  • Four master station ports (RJ45)
  • Switching triggers
Application/Usage:
  • Security System
  • Audio/Video System
  • Door Station
  • Signaling System
Compatibility:

Aiphone AX Series Integratable Audio/Video Security System

Country of Origin:
Japan
Item Numbers
GTIN: 0053926347193, 0790143180010, 0790143415914
UPC: 053926347193, 790143180010, 790143415914
EAN: 0053926347193, 0790143180010, 0790143415914
UNSPSC: 39121900
