Aiphone 85220710C Telecommunication Equipment

Aiphone - WIRE 7COND/22AWG LOW CAP PE NON SHEILDED
  • Low capacitance, non-shielded
  • Technically matched to designated system's wire specifications
  • Color coded conductors to match MC Series
  • Extends product warranty by one additional year
  • UL and c(UL)us listed
  • RoHS III and REACH compliant
  • Made in USA
Read More

Need a different version? See all Aiphone Parts Accessories

$1,150.80
In Stock
Add to Quote
Add to My Shopping List Add to Compare
Aiphone 85220710C Telecommunication Equipment
Aiphone 85220710C Telecommunication Equipment
Aiphone 85220710C Telecommunication Equipment
Aiphone Parts Accessory Model Overview
Products and parts from Aiphone.
Aiphone 85220710C Telecommunication Equipment Overview

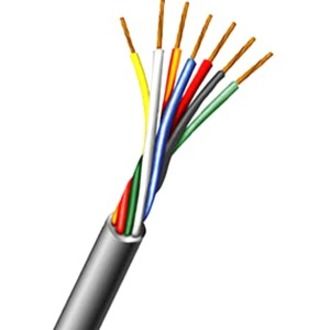

22 AWG 7 conductors 7 strands bare copper wire with foamed PE insulation, unshielded and an overall PVC jacket for low-voltage electronic cable applications.
Technical Information
Cable Type:
Bare Wire
Cable Length:
1000 ft
Connector Type on First End:
Bare Wire
Connector on First End Details:
Bare Wire
Conductor:
Annealed Copper
Shielding:
No
Jacket Type:
  • CL3
  • FPL
  • CM
Device Supported:
Communication System
American Wire Gauge:
22 AWG
Number of Conductors:
7
Features:
Stranded
Physical Characteristics
Product Color:
Gray
Insulation Color:
  • Black
  • Red
  • Green
  • White
  • Orange
  • Yellow
  • Blue
Product Material:
  • Bare Copper
  • Annealed Copper
Insulation Material:
Foam Polyethlene (FPE)
Jacket Material:
Polyvinyl Chloride (PVC)
Material Details:

Annealed Copper - Conductor
Bare Copper - Wire

Weight (Approximate):
27 lb
Miscellaneous
Compatibility:
  • Aiphone MC Series Communication System
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS 2
  • RoHS 3
  • REACH
Country of Origin:
United States
Item Numbers
UNSPSC: 26121603
