Screen Size:
7"
Display Screen Type:
TFT LCD
Aiphone Parts Accessory Model Overview
Products and parts from Aiphone.
Aiphone 229994 Telecommunication Equipment Overview

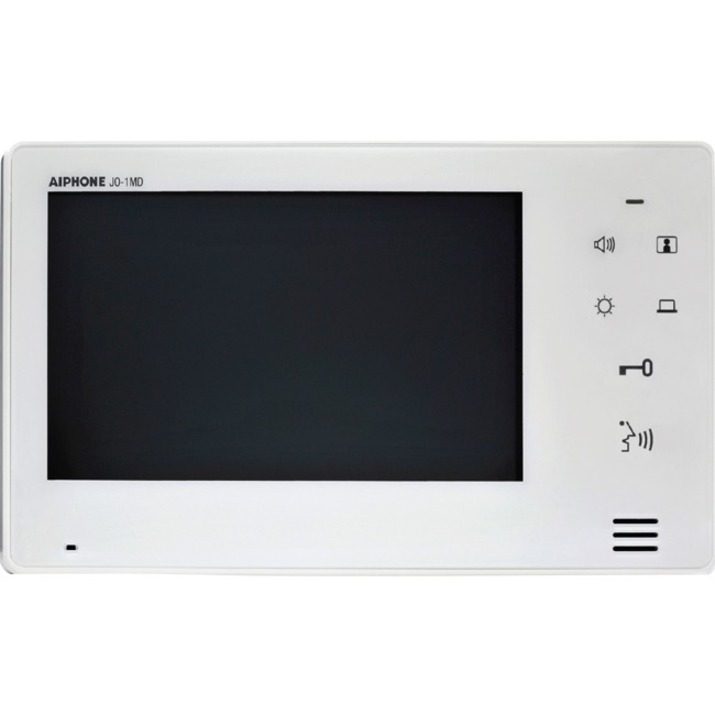

The JO Series is a 1 x 2 system which features a 7" screen with electrostatic touch buttons and door release. The JO master is less than an inch thick and allows VOX or PTT communication. The JO Series is available in three easy to install kits, each featuring a single master station, a power supply, and one of three different door stations.
The JOS-1A kit includes the JO-DA surface mount plastic door station. The JOS-1V kit features the JO-DV surface mount door station with a zinc die cast faceplate. The JOS-1F kit contains the JO-DVF flush mount door station with a stainless steel faceplate.
The JO-1MD master station is included in all kits and the JO-1FD expansion station can be purchased separately. The system connects easily using 2-conductor to the door station and 6-conductor between internal stations.
The JOS-1A kit includes the JO-DA surface mount plastic door station. The JOS-1V kit features the JO-DV surface mount door station with a zinc die cast faceplate. The JOS-1F kit contains the JO-DVF flush mount door station with a stainless steel faceplate.
The JO-1MD master station is included in all kits and the JO-1FD expansion station can be purchased separately. The system connects easily using 2-conductor to the door station and 6-conductor between internal stations.
Display & Graphics
Physical Characteristics
Product Color:
White
Product Material:
- Die-cast Zinc
- ABS Resin
Height:
5.1"
Width:
0.4"
Depth:
0"
Weight (Approximate):
1.04 lb
Miscellaneous
Application/Usage:
Door Entry
Compatibility:
Aiphone JO-1FD Video Station
Additional Information:
- Current Consumption: Max. 410mA
- Dry Ccontacts: N/O 24V AC/DC, 500mA
- Hands-free: Auto-voice Actuation
- PTT: Press-to-talk, Release to listen
- Mounting: Wall Mount
- Electrical Box: 3-gang box
Country of Origin:
Japan
Item Numbers
UNSPSC:
43191513
