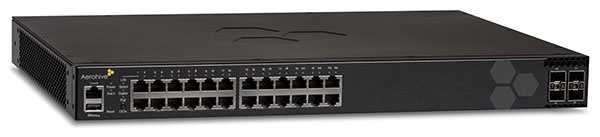

Aerohive AH-SR-2024P Ethernet Switch

Aerohive SR2024P - Aerohive SR2024P Ethernet Switch - 24 Ports - Manageable - 2 Layer Supported - 1U High - Desktop, Rack-mountable
  • Features 24 networking ports to establish large network
  • Cascade to other network devices through the uplink port to expand your local area network
  • With PoE+ Port, transfer data and up to 25.5 W of power on a single cable to places where a power outlet is not present
  • Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
  • Gigabit Ethernet port for ultra-fast network speeds
  • Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
Read More

Full specifications (PDF)

Cloud-enabled enterprise-class gigabit access switch with PoE, 802.1X, integrated routing, and VPN
The SR2024P platforms combine enterprise-class access switching with cloud- enabled management, on-demand provisioning, and secure branch routing to provide the industry"s most advanced networking feature set to the edge of your network. Built on the deep, feature-rich HiveOS operating system, the SR platforms offer gigabit switching with advanced features like user-based QoS, storm control, and 802.1X multiple authentication for voice and data coexistence, along with traditional switch features such as LLDP, Spanning Tree, and IGMP snooping.
Aerohive AH-SR-2024P Overview
Aerohive Networks SR platforms combine enterprise-class access switching with cloudenabled management and on-demand provisioning to provide the industry's most advanced networking feature set to the edge of your network. Built on the deep, feature-rich HiveOS operating system, the SR platforms offer state-of-the-art gigabit switching with advanced features like user-based QoS, storm control, and 802.1X multiple authentication for voice and data coexistence, along with traditional switch features such as LLDP, Spanning Tree, and IGMP snooping. Combining these capabilities with cloud-based services such as on-demand provisioning, hands-free configuration and updates, and unified wired and wireless policies allows the SRs to join the rest of the Aerohive Cooperative Control network to provide a seamless, high-quality enterprise-class experience for all connected users.
Protect Your Product

Full specifications (PDF)

Interfaces/Ports
Total Number of Network Ports:
24
Token Ring Port:
No
LRE Port:
No
Uplink Port:
Yes
Bypass:
No
Modular:
No
Management Port:
Yes
USB:
Yes
Number of PoE+ (RJ-45) Ports:
24
Stack Port:
No
Port/Expansion Slot Details:
  • 24 x Gigabit Ethernet Network
  • 4 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Ethernet Technology:
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 1000Base-X
  • 10GBase-X
I/O Expansions
Number of Total Expansion Slots:
4
Expansion Slot Type:
  • SFP
  • SFP+
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
Yes
Management:
  • QoS
  • VLAN
Reliability
MTBF:
220000 Hour
Power Description
PoE (RJ-45) Port:
No
Input Voltage:
  • 120 V AC
  • 230 V AC
Power Source:
Power Supply
Redundant Power Supply Supported:
No
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
  • Desktop
  • Rack-mountable
Depth:
12.3"
Miscellaneous
Certifications & Standards:
IEEE Standards:
  • 802.1X
  • 802.3at
  • 802.3af
  • 802.3az
  • 802.1p
  • 802.1ab
  • 802.1Q
Item Numbers
GTIN: 0714953356472, 0887988626169, 4943783144737, 4963263162730
UPC: 714953356472, 887988626169
EAN: 0714953356472, 0887988626169, 4943783144737, 4963263162730
UNSPSC: 43222612

Recommended Accessories for Model: Aerohive SR2024P Ethernet Switch

Category

  • Accessories (1)
  • Miscellaneous (5)
Recommended Accessories for Model: Aerohive SR2024P Ethernet Switch

Accessories

Aerohive (AH-ACC-SERIAL-RJ45)
Aerohive RJ45 to DB-9 Serial Console Cable - Serial Data Transfer Cable for Access Point - First End: 1 x DB-9 Serial - Second End: 1 x RJ45 Serial

Miscellaneous

Aerohive (AH-ACC-SFP-1G-SX)
Aerohive Gigabit Ethernet SFP-module - SX (150 m) - For Data Networking, Optical Network - 1 1000Base-SX Network - Optical FiberGigabit Ethernet - 1000Base-SX - 1 Gbit/s
In Stock: Ships Same Day
$155.35
+ Add to Quote
Aerohive (AH-ACC-SFP-1G-LX)
Aerohive Gigabit Ethernet SFP-module - LX (10k m) - For Data Networking, Optical Network - 1 1000Base-LX Network - Optical FiberGigabit Ethernet - 1000Base-LX - 1 Gbit/s
In Stock: Ships Same Day
$258.92
+ Add to Quote
Aerohive (AH-ACC-SFP-10G-SR)
Aerohive 10 Gigabit Ethernet SFP+ module - SR (400 m) - For Data Networking, Optical Network - 1 10GBase-SR Network - Optical Fiber10 Gigabit Ethernet - 10GBase-SR - 10 Gbit/s
Aerohive (AH-ACC-SFP-10G-LR)
Aerohive SFP+ Module - For Data Networking, Optical Network - 1 10GBase-LR Network - Optical Fiber - 9/125 & micro, m - Single-mode - 10 Gigabit Ethernet - 10GBase-LR - 10 Gbit/s
Aerohive (AH-ACC-SFP-10G-LRM)
Aerohive SFP+ Module - For Data Networking, Optical Network - 1 10GBase-LRM Network - Optical Fiber - 62.5/125 & micro, m - Single-mode - 10 Gigabit Ethernet - 10GBase-LRM - 10 Gbit/s

The Aerohive AH-SR-2024P is also known as AH-SR-2024P or AHSR2024P .
