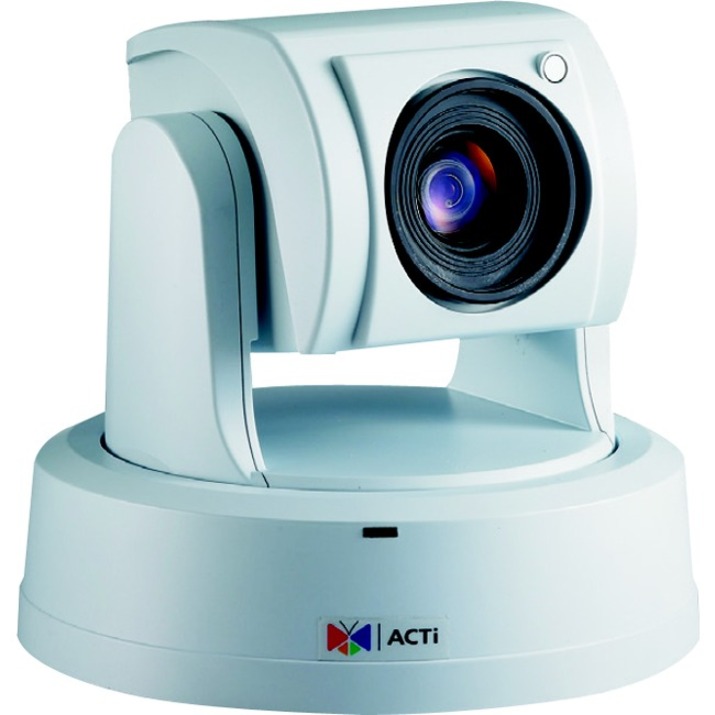

ACTi ACM8511N Security Camera

The ACTi ACM8511N Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
ACTi ACM8511N - M-JPEG/MPEG-4 NTSC DAY AND NIGHT IP PTZ CAMERA SUPPORTS UP TO FULL D1 RESOLUTION, W/ TWO-WAY AUDIO, 480 TV LINE, CCD, P
  • Network camera - Helps achieve high-quality video results
  • Features Interlaced Scan CCD sensor
  • Up to 720 x 480 resolution for surveillance in real-time
Read More

Need a different version? See all ACTi ACM8511N Security Cameras

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
ACTi ACM8511N Security Camera
ACTi ACM8511N Security Camera ACTi ACM8511N Security Camera ACTi ACM8511N Security Camera
ACTi ACM8511N Security Camera
ACTi ACM8511N Security Camera
ACTi ACM8511N Security Camera
Full specifications (PDF)
ACTi ACM8511N Security Camera Model Overview
M-JPEG/MPEG-4 NTSC DAY AND NIGHT IP PTZ CAMERA SUPPORTS UP TO FULL D1 RESOLUTION, W/ TWO-WAY AUDIO, 480 TV LINE, CCD, P
Full specifications (PDF)
Display & Graphics
Image Sensor Type:
Interlaced Scan CCD
Image Sensor Size:
1/4"
Minimum Illumination:
0.1 lux
Color Supported:
  • Color
  • Monochrome
Tilt:
-25° to 90°
Swivel:
0° to 354°
Field of View:
-5.0° to 48.0°
Video
Video Formats:
  • MJPEG
  • MPEG-4
Maximum Video Resolution:
720 x 480
Maximum Frame Rate:
30 fps
Video Signal Format:
NTSC
Audio
Audio Formats:
PCM
Lens
Lens Type:
Zoom
Minimum Focal Length:
4.20 mm
Maximum Focal Length:
42 mm
Lens Included:
Yes
Minimum Aperture:
f/1.8
Maximum Aperture:
f/2.9
Optical Zoom:
10x
Digital Zoom:
10x
Focus Modes:
Automatic
Exposure
Shortest Shutter Speed:
1/120000 Second
Longest Shutter Speed:
1/60 Second
Exposure Control:
Auto
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • TCP
  • UDP
  • HTTP
  • HTTPS
  • DHCP
  • PPPoE
  • RTP
  • RTSP
  • DNS
  • DDNS
  • NTP
  • ICMP
  • ARP
  • IGMP
  • SMTP
  • FTP
  • UPnP
  • SNMP
  • Bonjour
Power Description
Maximum Power Consumption:
5.80 W
Physical Characteristics
Mount Type:
  • Surface Mount
  • Wall Mount
  • Corner Mount
  • Flush Mount
  • Pole Mount
  • Pendant Mount
Height:
5.2"
Diameter:
5.2"
Weight (Approximate):
1.21 lb
Miscellaneous
Features:
  • Day/Night
  • Motion Detection
  • Privacy Masking
System Requirements:
Browser: Microsoft Internet Explorer 6.0 or Newer
Certifications & Standards:
  • CE
  • EN 55022 Class A
  • EN 55024
  • FCC (Part15 Subpart B Class A)
Security Features:
  • IP Address Filtering
  • HTTPS Encryption
  • Password Protected User Levels
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 46171610
