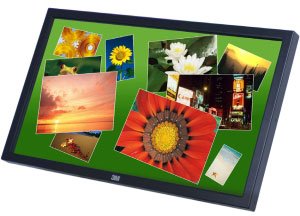

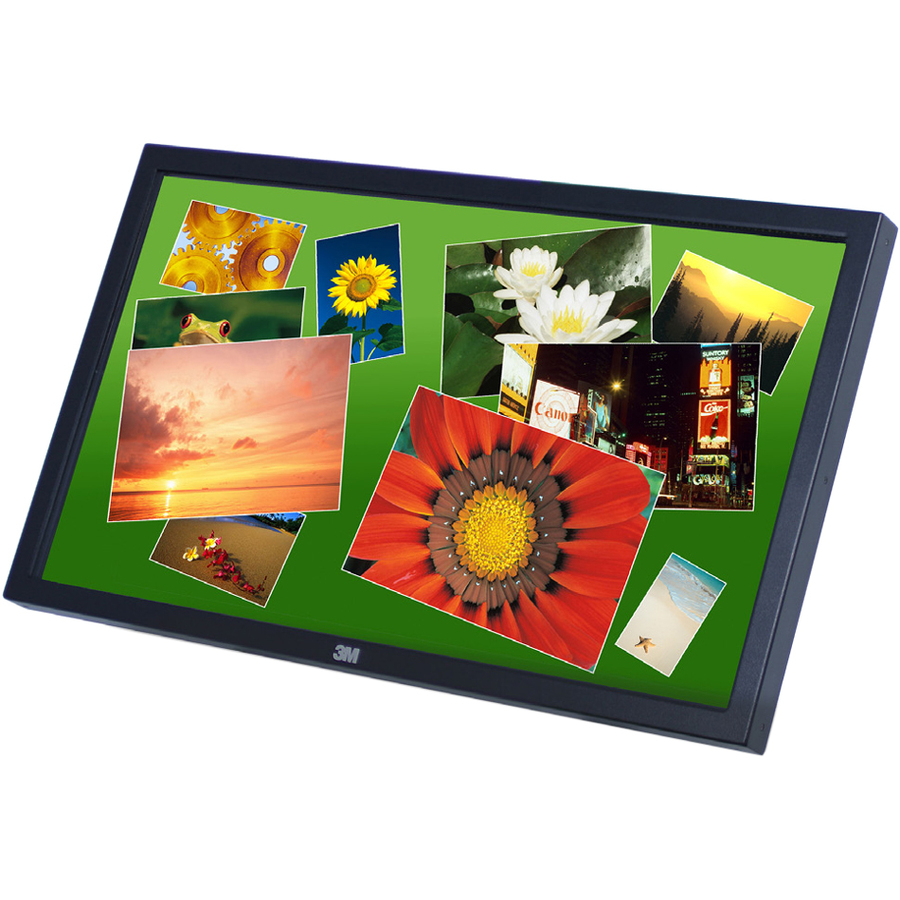

3M Touch Systems C3266PW Touchscreen

Part Number: C3266PW
Model: C3266PW

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
32"
Viewable Screen Size
32"
Screen Mode
Full HD
Response Time
5 ms

Product Description:

  3M TOUCH, CHASSIS LCD MULTI-TOUCH DISPLAY, C3266PW, 32 INCH, CAPACITIVE 40 FINGER MULTI-TOUCH, WINDOWS 7, 1920 X 1080

3M Touch Systems C3266PW Touchscreen Model Overview

The 3M-MicroTouch C3266PW is engineered by 3M as a fullyintegrated 32" multi-touch display that combines cutting-edge 3M Projected Capacitive Touch Technology (3M PCT) with a stunning industrial grade, full high-definition, 120Hz LCD display to create the ultimate user interface. This large format multi-touch capability enables true multi-user interaction for cutting edge collaborative and interactive applications. N, allowing developers to create a more natural, intuitive and responsive user experience when compared to infrared-based and optical-based systems. The C3266PW display is supplied with a robust bezel for interactive digital signage solutions or the bezel can be removed to create modern flat front surface interactive tables and kiosk solutions.
3M Touch Systems C3266PW Touchscreen Overview

The 3M Multi-Touch Display C3266PW is engineered by 3M as a fully-integrated 32" multi-touch display that combines cutting-edge 3M Projected Capacitive Touch Technology (3M PCT) with a stunning industrial grade, full high-definition, 120Hz LCD display to create the ultimate user interface. This large format multi-touch capability enables true multi-user interaction for cutting edge collaborative and interactive applications. 3M PCT delivers 10 simultaneous touches at an ultra-fast 10 millisecond response time while rejecting palms, allowing developers to create a more natural, intuitive and responsive user experience when compared to infrared-based and optical-based systems. The C3266PW display is ideal for interactive digital signage, interactive tables, and kiosk solutions by providing system architects with a high performance, easy to integrate, professional multi-touch display.

Technical Information
Screen Size Class:
32"
Viewable Screen Size:
32"
Screen Mode:
Full HD
Response Time:
5 ms
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Video
Maximum Resolution:
1920 x 1080
Standard Refresh Rate:
120 Hz
Color Supported:
1.06 Billion Colors
Contrast Ratio:
1,300:1
Brightness:
450 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Capacitive
Multi-touch Screen:
Yes
Interfaces/Ports
DVI:
Yes
HDMI:
Yes
USB:
Yes
VGA:
Yes
Serial Port:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
100 W
Physical Characteristics
Color:
Black
Height:
17.9"
Width:
29.9"
Depth:
2.6"
Weight (Approximate):
28 lb
Miscellaneous
Certifications & Standards:
  • FCC-B
  • CE
  • TUV
  • CCC
Platform Supported:
  • PC
  • Mac
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0551119964962, 4046719600427
UPC: 551119964962
EAN: 0551119964962, 4046719600427
UNSPSC: 43211903
