3M Touch Systems 98-0003-3695-2 Touchscreen

The 3M Touch Systems 98-0003-3695-2 Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

3M Touch Systems C3266PW - 3M C3266PW 32" LCD Touchscreen Monitor - 5 ms - 32" Class - CapacitiveMulti-touch Screen - 1920 x 1080 - Full HD - 1.06 Billion Colors - 1,300:1 - 450 Nit - DVI - HDMI - USB - VGA - Black - RoHS - 1 Year

The 1,300:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
View your content easily in well-lit areas with 450 Nit brightness
Capacitive touchscreens must be impelled with a stylus carrying an electrical charge or by the touch of human skin
HDMI (High Definition Multimedia Interface) delivers fantastic sound/video quality alongside a single-cable comfort

Need a different version? See all 3M Touch Systems C3266PW Touchscreens

Discontinued Need Assistance?

Add to Quote

3M Touch Systems 98-0003-3695-2 Touchscreen

Overview

Full specifications (PDF)

3M Touch Systems C3266PW Touchscreen Model Overview

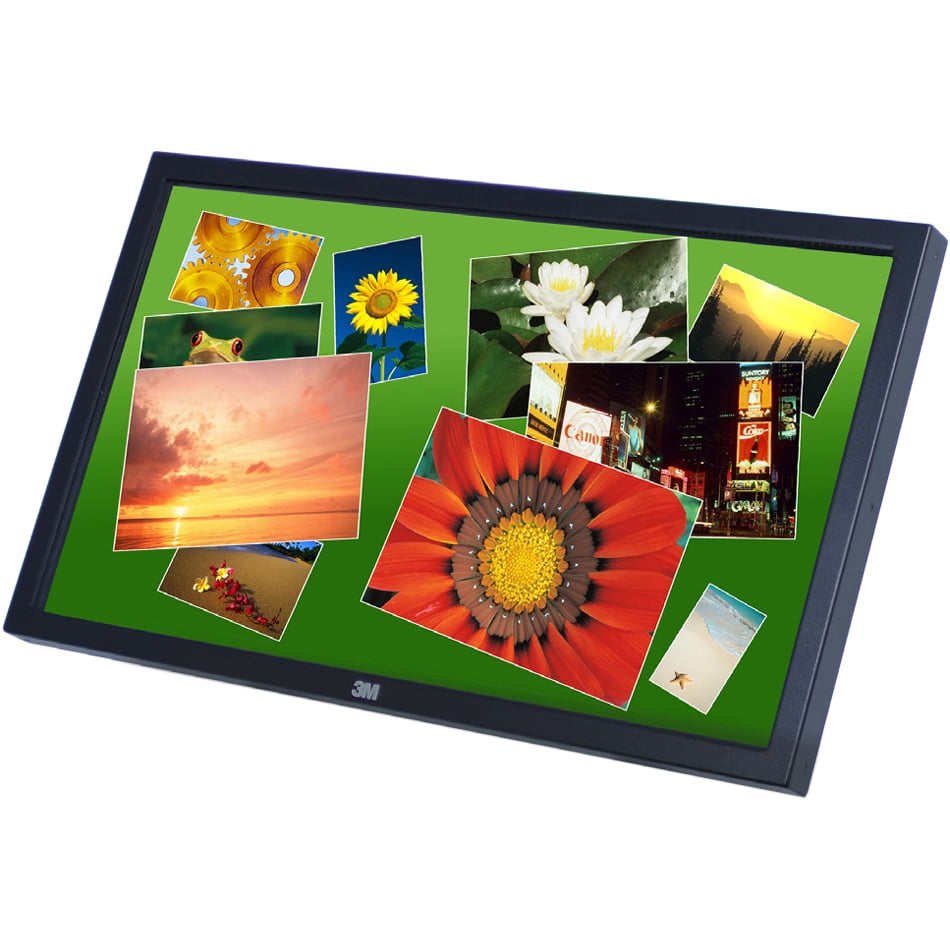

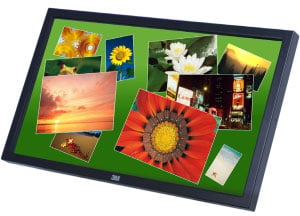

The 3M-MicroTouch C3266PW is engineered by 3M as a fullyintegrated 32" multi-touch display that combines cutting-edge 3M Projected Capacitive Touch Technology (3M PCT) with a stunning industrial grade, full high-definition, 120Hz LCD display to create the ultimate user interface. This large format multi-touch capability enables true multi-user interaction for cutting edge collaborative and interactive applications. N, allowing developers to create a more natural, intuitive and responsive user experience when compared to infrared-based and optical-based systems. The C3266PW display is supplied with a robust bezel for interactive digital signage solutions or the bezel can be removed to create modern flat front surface interactive tables and kiosk solutions.

3M Touch Systems 98-0003-3695-2 Touchscreen Overview

The 3M Multi-Touch Display C3266PW is engineered by 3M as a fully-integrated 32" multi-touch display that combines cutting-edge 3M Projected Capacitive Touch Technology (3M PCT) with a stunning industrial grade, full high-definition, 120Hz LCD display to create the ultimate user interface. This large format multi-touch capability enables true multi-user interaction for cutting edge collaborative and interactive applications. 3M PCT delivers 10 simultaneous touches at an ultra-fast 10 millisecond response time while rejecting palms, allowing developers to create a more natural, intuitive and responsive user experience when compared to infrared-based and optical-based systems. The C3266PW display is ideal for interactive digital signage, interactive tables, and kiosk solutions by providing system architects with a high performance, easy to integrate, professional multi-touch display.

Detailed Specs

Full specifications (PDF)

Technical Information

Screen Size Class:

32"

Viewable Screen Size:

32"

Screen Mode:

Full HD

Response Time:

5 ms

Horizontal Viewing Angle:

178°

Vertical Viewing Angle:

178°

Video

Maximum Resolution:

1920 x 1080

Standard Refresh Rate:

120 Hz

Color Supported:

1.06 Billion Colors

Contrast Ratio:

1,300:1

Brightness:

450 Nit

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

Capacitive

Multi-touch Screen:

Yes

Interfaces/Ports

DVI:

Yes

HDMI:

Yes

USB:

Yes

VGA:

Yes

Serial Port:

Yes

Power Description

Input Voltage:

110 V AC
220 V AC

Operating Power Consumption:

100 W

Physical Characteristics

Color:

Black

Height:

17.9"

Width:

29.9"

Depth:

2.6"

Weight (Approximate):

28 lb

Miscellaneous

Certifications & Standards:

FCC-B
CE
TUV
CCC

Platform Supported:

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0551119964962, 4046719600427

UPC: 551119964962

EAN: 0551119964962, 4046719600427

UNSPSC: 43211903

Reviews

Q&A

Questions? Get help from
a POS Expert!

The 3M Touch Systems 98-0003-3695-2 Touchscreen is also known as MCT-98000336952 or 98-0003-3695-2.
