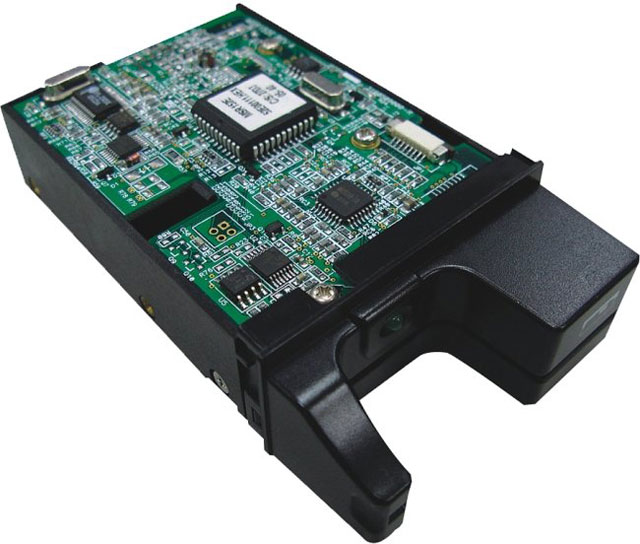

UIC MSR152 Credit Card Reader
UIC MSR152 -
The MSR152 is ideal for retail systems, time keeping systems, security systems and other card reader related systems. The MSR152 is designed to offer the user a card reader solution that will complement many applications. Triple tracks of MSR152 is uniquely designed to read both credit cards and Driver Licenses (AAMVA and California standard).
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$79.90
Questions? Get help from
a POS Expert!
a POS Expert!
Category
UIC MSR152 Credit Card Reader Options
-
MSR152-33RMBBWBR Credit Card Reader
MSR reader, Full insert, RS232 interface, B bezel, Port power cable, No PS, RoHS. triple tracks$79.90 -
UIC MSR152-33UMMUWBR Credit Card Reader
MSR reader, Full insert, USB interface, plastic M bezel, cable, Black, triple tracks, RoHS$79.90 -
UIC MSR152-33UMAUWBRACS Credit Card Reader
MSR READER, FULL INSERT, USB INTERFACE, PLASTIC M BEZEL, CABLE, BLACK,DUAL HEADS, TRIPLE TRACKS, ROHS$90.62
UIC MSR152 Credit Card Reader Model Overview
The MSR 152 Series Manual Insert Magnetic Card Reader offers a reliable and compact solution for your card reading needs. Designed for ease of use, it enables bi-directional manual insertion, accommodating various card types conforming to ISO7811 standards. With a power-efficient design, this card reader operates via RS232 communication, making it suitable for a range of applications while ensuring low power consumption. Its lightweight and small footprint make it an ideal choice for businesses looking to optimize space without compromising quality.
Key Features
- Manual Insertion for user-friendly operation
- Programmable track data output for tailored use
- Low power consumption with a maximum of 10mA
- Supports ISO7811 magnetic cards
- High and low coercivity stripes compatible (300-4000 Oe)
- Lightweight design with large coin drop
- Optional dual heads and LED indicators
Specifications
- Electrical
- Power Requirement: Port powered
- Power Consumption: 10mA max.
- Communication: RS232 (TTL optional)
- Mechanical
- Body Material: PC, UL94V-0
- Dimensions: 107mm(L) x 60mm(W) x 26mm(H)
- Weight: Approx. 65g
- Card Handling Method: Manual insertion, bi-directional
- Agency Approval: FCC class A, CE class A, UL, CUL
- Environment
- Operating Temperature: -10 to 55°C
- Humidity: 10 to 85%
- Storage Temperature: -30 to 70°C
- Humidity: 10 to 90%
- Performance
- Card Type: Magnetic card as per ISO7811, AAMVA
- Read Speed: 4-40ips (STD card)
- Card Thickness: 0.76 ± 0.08mm
- Error Rate: < 0.5%
- Head Life: 500K, 1M life optional
