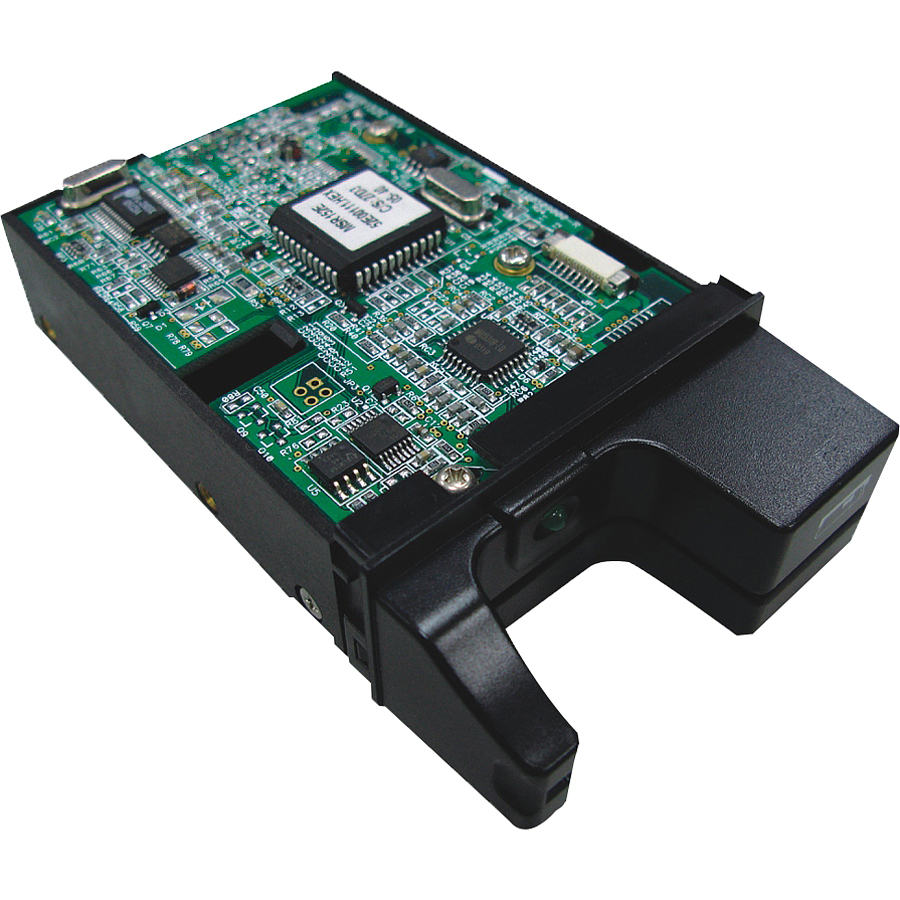

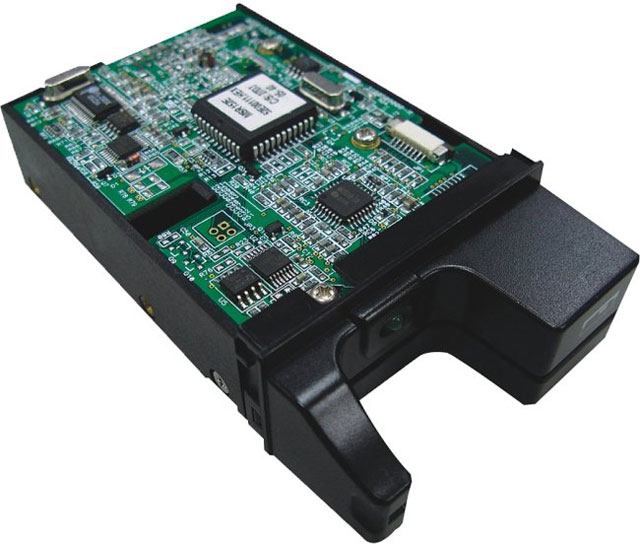

UIC MSR152-33UMMUWBR Credit Card Reader

The MSR 152 Series Manual Insert Magnetic Card Reader offers a reliable and compact solution for your card reading needs. Designed for ease of use, it enables bi-directional manual insertion, accommodating various card types conforming to ISO7811 standards. With a power-efficient design, this card reader operates via RS232 communication, making it suitable for a range of applications while ensuring low power consumption. Its lightweight and small footprint make it an ideal choice for businesses looking to optimize space without compromising quality.

Key Features

• Manual Insertion for user-friendly operation
• Programmable track data output for tailored use
• Low power consumption with a maximum of 10mA
• Supports ISO7811 magnetic cards
• High and low coercivity stripes compatible (300-4000 Oe)
• Lightweight design with large coin drop
• Optional dual heads and LED indicators

Specifications

• Electrical
  • Power Requirement: Port powered
  • Power Consumption: 10mA max.
  • Communication: RS232 (TTL optional)
• Mechanical
  • Body Material: PC, UL94V-0
  • Dimensions: 107mm(L) x 60mm(W) x 26mm(H)
  • Weight: Approx. 65g
  • Card Handling Method: Manual insertion, bi-directional
  • Agency Approval: FCC class A, CE class A, UL, CUL
• Environment
  • Operating Temperature: -10 to 55°C
  • Humidity: 10 to 85%
  • Storage Temperature: -30 to 70°C
  • Humidity: 10 to 90%
• Performance
  • Card Type: Magnetic card as per ISO7811, AAMVA
  • Read Speed: 4-40ips (STD card)
  • Card Thickness: 0.76 ± 0.08mm
  • Error Rate: < 0.5%
  • Head Life: 500K, 1M life optional
