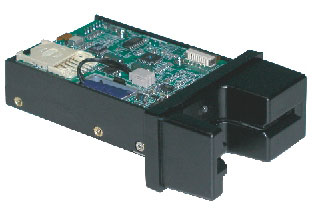

UIC HCR331 Credit Card Reader
UIC HCR331 -
The HCR331 is ideal for retail systems, time keeping systems, security systems and other card reader related systems. The HCR331 are designed to offer the user a hybrid card reader solution that will complement many applications; except reading credit cards and Driver Licenses (AAMVA and California standard) and its uniquely designed to smart card that the integrated smart card processing is EMV Level 1 type approved.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$131.08
Questions? Get help from
a POS Expert!
a POS Expert!
Category
UIC HCR331 Credit Card Reader Options
-
UIC HCR331-33UH1BUWBR Credit Card Reader
Hybrid reader, Full insert, USB interface, B Bezel, triple tracks, RoHS$131.08 -
UIC HCR331-33RH1MDWNR Credit Card Reader
Hybrid reader, Full insert, RS232 interface, M Bezel, cable, No PS, triple tracks, RoHS$131.08
UIC HCR331 Credit Card Reader Model Overview
The HCR331 Hybrid Card Reader is designed for superior performance in card reading applications, combining convenience and reliability in a compact package. This robust device supports EMV Level 1 certification and can read/write various smart cards conforming to ISO standards. With its manual insertion method, built-in SAM Security Access Module socket, and exceptional read capabilities, the HCR331 is perfect for environments requiring flexible card handling solutions. It's ideal for commercial use with features that ensure security and efficiency, making it a top choice for businesses.
Key Features:
Specifications:
Key Features:
- EMV Level 1 Certified: Ensures compliance with industry standards.
- Multi-card Support: Reads magnetic stripe and smart cards (ISO 7811/7816).
- Built-in SAM Socket: Enhances security with a dedicated access module.
- Error Rate < 0.5%: Reliable performance for high-volume transactions.
- Firmware Upgradeability: Future-proof your investment with software enhancements.
- Bi-color LED Indication: User-friendly visual feedback.
Specifications:
- Model: HCR331
- Power Requirement: +5VDC ±5%
- Power Consumption: 500mA maximum surge current
- Interfaces: RS232 (USB optional)
- Dimensions: 107L x 62W x 26H mm
- Weight: Approx. 165g (without power adapter)
- Operation Temperature: -10°C to +50°C
- Storage Temperature: -30°C to +70°C
- Read Speed: 4-40 ips
- Magnetic Head Life: 500K insertion cycles
- IC Card Contract Life: 500K times minimum
