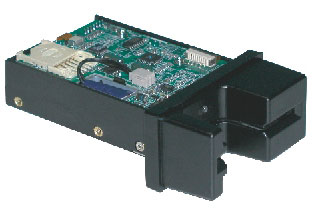

UIC HCR331-33UH1BUWBR Credit Card Reader

The HCR331 Hybrid Card Reader is designed for superior performance in card reading applications, combining convenience and reliability in a compact package. This robust device supports EMV Level 1 certification and can read/write various smart cards conforming to ISO standards. With its manual insertion method, built-in SAM Security Access Module socket, and exceptional read capabilities, the HCR331 is perfect for environments requiring flexible card handling solutions. It's ideal for commercial use with features that ensure security and efficiency, making it a top choice for businesses.
Key Features:

• EMV Level 1 Certified: Ensures compliance with industry standards.
• Multi-card Support: Reads magnetic stripe and smart cards (ISO 7811/7816).
• Built-in SAM Socket: Enhances security with a dedicated access module.
• Error Rate < 0.5%: Reliable performance for high-volume transactions.
• Firmware Upgradeability: Future-proof your investment with software enhancements.
• Bi-color LED Indication: User-friendly visual feedback.

Specifications:

• Model: HCR331
• Power Requirement: +5VDC ±5%
• Power Consumption: 500mA maximum surge current
• Interfaces: RS232 (USB optional)
• Dimensions: 107L x 62W x 26H mm
• Weight: Approx. 165g (without power adapter)
• Operation Temperature: -10°C to +50°C
• Storage Temperature: -30°C to +70°C
• Read Speed: 4-40 ips
• Magnetic Head Life: 500K insertion cycles
• IC Card Contract Life: 500K times minimum
