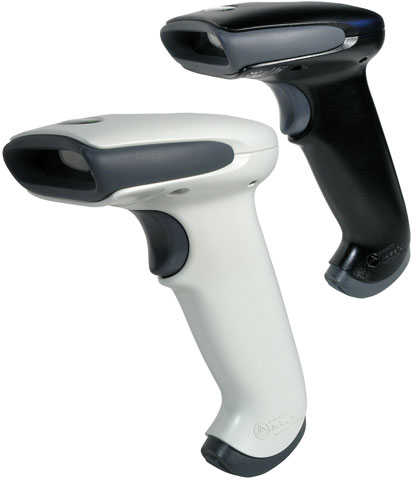

Honeywell 3800G14-USBKITE Barcode Scanner

Honeywell 1300G-2USB Barcode Scanner A newer version of this item is available.
It is replaced by the Honeywell 1300G-2USB Barcode Scanner.
Honeywell 3800g - USB kit, 1D Linear Imager. Includes USB cable. Color: Black
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Scan barcodes with a staggering speed of 270 scan/s
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • LED aimer is a perfect choice for patient-facing applications
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Honeywell 3800g Barcode Scanner Model Overview
The 3800g is built to deliver world-class performance for a broad range of applications in retail, manufacturing, warehousing, distribution and all points in between. Featuring the ideal balance of performance, durability, ergonomics and connectivity options, the 3800g will deliver years of hassle-free service. The 3800g features improved depth of field, fast barcode reading and high tolerance to motion, plus a convenient variety of connectivity options, including USB, PS/2 Keyboard Wedge and RS232 Serial.
Honeywell 3800G14-USBKITE Barcode Scanner Overview

The first linear imager 3800g Bar Code Reader to earn the Adaptus Imaging Technology brand, the new 3800g is powered by Adaptus 5.0, delivering breakthrough linear imaging performance and versatility. Fast, intuitive bar code reading across a range of high and low density codes, the 3800g quickly reads even damaged and poorly printed bar codes all in a single device.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Codabar
  • Code 3 of 9 including PARAF
  • Interleaved 2 of 5
  • Straight 2 of 5 Industrial
  • Matrix 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • China Postal Code
  • GS1 DataBar
Light Source:
LED
Image Sensor Type:
Imager
Scan Rate:
270 scan/s
Maximum Scan Resolution:
3 mil
Depth of Field:
  • 2" - 8"@5mil
  • 1.5" - 12"@7.5mil
  • 1" - 15"@10mil - 80% UPC
  • 0.5" - 18"@13mil - 100% UPC
  • 1" - 22"@15mil
  • 1" - 26"@20mil
Scan Pattern:
Linear
Cable Type Included:
USB
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Height:
5.9"
Width:
3.1"
Depth:
4.4"
Weight (Approximate):
5.60 oz
Miscellaneous
Package Contents:
  • 3800g Bar Code Reader
  • Straight USB Cable
  • Quick Start Guide
Additional Information:

Supported Interfaces:

  • USB
  • TTL level RS-232

USB Cable separate

Certifications & Standards:
  • FCC Class B
  • CE EMC Class B
  • CE Low Voltage Directive
  • IEC60825-1 LED Safety: Class 1
  • UL
  • cUL listed
  • RoHS
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 5052217220653
EAN: 5052217220653
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Honeywell 3800G14-USBKITE Barcode Scanner is also known as HHP-3800G14-USBKITE or 3800G14USBKITE.
