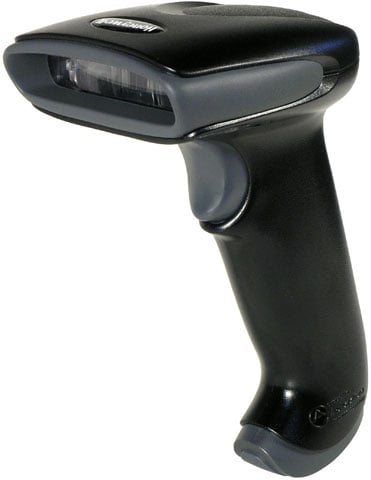

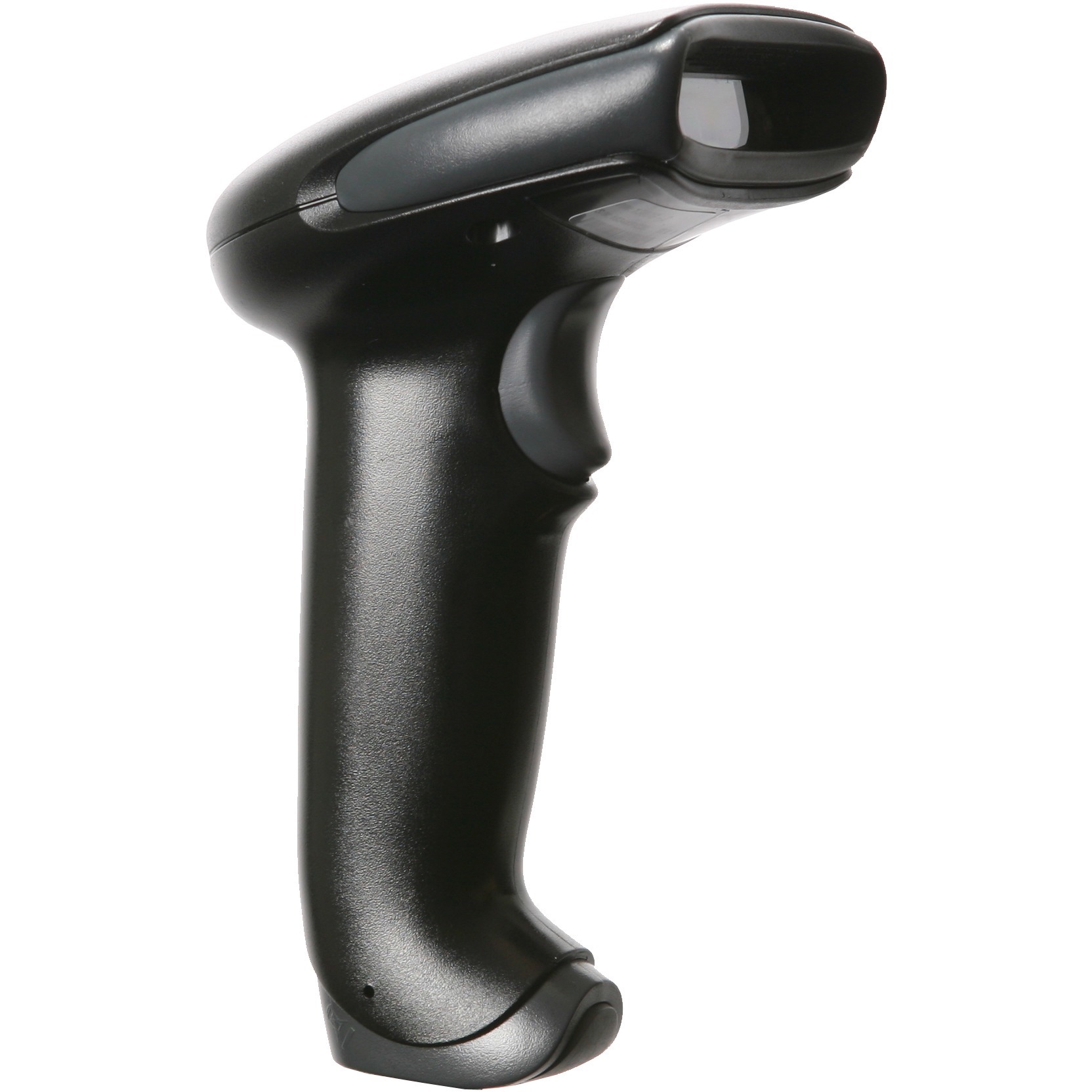

Honeywell Hyperion 1300g – Barcode Scanner

Part Number: 1300G-2USB
Model: Hyperion 1300g
Add to My Shopping List Add to Compare
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D
Barcode Symbology Supported
Reads Standard 1D and GS1 DataBar Symbologies
Image Sensor Type
ImagerLinear

Product Description:

  USB Kit, Honeywell Hyperion 1300g, 1D Imager, corded. Includes USB cable. Color: Black.
Explore all Honeywell Hyperion 1300g Barcode Scanners
Add to Quote
Honeywell 1300G-2USB Barcode Scanner
Honeywell 1300G-2USB Barcode Scanner
Honeywell 1300G-2USB Barcode Scanner
Honeywell 1300G-2USB Barcode Scanner
Honeywell 1300G-2USB Barcode Scanner Honeywell 1300G-2USB Barcode Scanner Honeywell 1300G-2USB Barcode Scanner Honeywell 1300G-2USB Barcode Scanner
Full specifications (PDF)

Honeywell Hyperion 1300g Barcode Scanner Model Overview

The Hyperion 1300g Linear-Imaging Scanner combines exceptional performance with unrivaled durability and ergonomic design, making it the perfect choice for businesses requiring hassle-free scanning in scan-intensive or light industrial settings. With its robust construction and user-friendly capabilities, this scanner delivers lightning-fast barcode reading up to 18 inches away, ensuring you can handle a variety of scanning needs without the need for additional specialized equipment. Its resilience is unmatched, designed to withstand tough environments, providing reliability that keeps your operations running smoothly.
Key Features
  • Superior Hand-Held Scanning: Offers intuitive and aggressive scanning to increase throughput.
  • Highly Versatile: Reads out to 18 inches (457mm) on 13 mil bar codes and high-density bar codes.
  • Class-Leading Durability: No moving parts and impact-resistant bumpers enhance uptime and minimize service costs.
  • Comfortable, Ergonomic Design: Gun-shaped form factor optimized for comfortable, extended scanning.
  • Automatic Interface Detection: Supports popular interfaces, streamlining integration and configuration.
  • Remote MasterMind® Scanner Management Software: Simplifies management of multiple scanners from a single location.

Specifications
  • Dimensions: 150 mm x 112 mm x 79 mm (5.9" x 4.4" x 3.1")
  • Weight: 160 g (5.6 oz)
  • Input Voltage: 5V ± 5%
  • Operating Power: 1000mW; 200 mA (typical)
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Drop/Tumble: Designed to withstand 50 drops onto concrete from 1.5m
  • Environmental Sealing: IP41
  • Scan Rate: Up to 270 scans per second
  • Decode Capabilities: Reads standard 1D and GS1 DataBarTM symbologies
  • Warranty: 5 year factory warranty
Honeywell 1300G-2USB Barcode Scanner Overview

"Honeywell's Hyperion 1300g linear-imaging barcode scanner features an ideal balance of performance, best-in-class durability and ergonomics to provide years of hassle-free scanning, especially in scan-intensive or light industrial applications. Fast intuitive reading of 13 mil barcodes out to 18 inches (457 mm), as well as reading of high density barcodes as small as 3 mil are both enabled in a single linear imager, eliminating the need to purchase specialty scanners. Get the most out of the Hyperion linear imager with compatible Remote MasterMind® scanning management software. "

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:

Reads Standard 1D and GS1 DataBar Symbologies

Image Sensor Type:
  • Imager
  • Linear
Scan Rate:
270 scan/s
Maximum Scan Resolution:
3 mil
Depth of Field:
  • 2" - 8"@5mil
  • 1.5" - 12"@7.5mil
  • 1" - 15"@10mil
  • 0.5" - 18"@13mil
  • 1" - 26"@20mil
Scan Pattern:
Single Line
Scanning Distance:
18"
Cable Type Included:
USB
Reading Angle (Skew):
65°
Reading Angle (Pitch):
65°
Motion Tolerance:
65 in/s
Maximum Ambient Light:
70000 lux
Drop Specification:
Designed to withstand 50 drops on concrete from 1.5m
Minimum Print Contrast:
20%
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Height:
5.9"
Width:
4.4"
Depth:
3.1"
Weight (Approximate):
5.60 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0783555104811, 0801940465030, 5711045218996, 7898409753053
UPC: 091361706670, 321324354656, 783555104811, 801940465030
EAN: 0783555104811, 0801940465030, 5711045218996, 7898409753053
UNSPSC: 43211701
