Bogen VAR1 Public Address Equipment
The Bogen VAR1 Public Address Equipment has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
No direct replacement is available.
Please contact us for a suitable substitute.
Audio signal activated DPDT relay device
Bogen VAR1 -

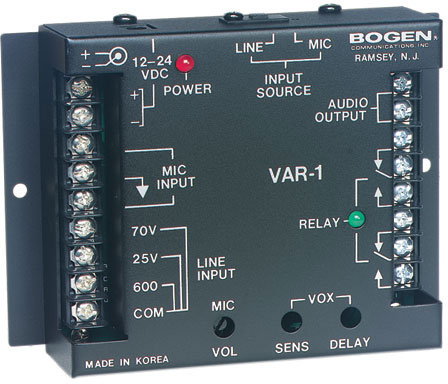

The Bogen VAR1 Voice-Activated Relay is a DPDT relay device that is activated when an audio signal is detected at the microphone pre-amp or at 70V, 25V, or 600-ohm line level inputs. A slide switch is included to select the pre-amp or the line inputs. The VOX detect circuit also includes volume, sensitivity, and delay controls. The audio output is an isolated 600-ohm transformer. The unit operates from a DC power source. Its applications include muting a sound system in response to a microphone or telephone page, activation of accessory security equipment or activation of a zone paging module.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Questions? Get help from a
Printer Expert!
Printer Expert!
Bogen VAR1 Public Address Equipment Options
-
Bogen VAR1 Public Address Equipment
Voice Activated Relay, DPDT relay, VOX detect circuit, 600-ohm transformer, Slide switch to select pre-amp or line inputs$151.33
Bogen VAR1 Public Address Equipment Model Overview
The Bogen VAR1 Voice-Activated Relay is a DPDT relay device that is activated when an audio signal is detected at the microphone pre-amp or at 70V, 25V, or 600-ohm line level inputs. A slide switch is included to select the pre-amp or the line inputs. The VOX detect circuit also includes volume, sensitivity, and delay controls. The audio output is an isolated 600-ohm transformer. The unit operates from a DC power source. Its applications include muting a sound system in response to a microphone or telephone page, activation of accessory security equipment or activation of a zone paging module.
