Full specifications (PDF)
Minimum Frequency Response:
20 Hz
Bogen X300 Public Address Equipment
Part Number:
X300
Model:
Black Max Power Amplifier
Bogen Black Max Power Amplifier Public Address Equipment Model Overview

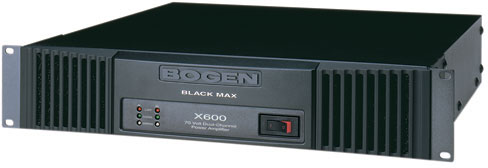

The Bogen Black Max™ X600 is a powerful 70V dual-channel amplifier designed for maximum performance in constant voltage speaker systems. With a robust output of 600 watts per channel, it delivers exceptionally clean audio while catering to the most demanding sound environments. The amplifier features advanced cooling technology and high-quality components to ensure reliability and longevity, making it an ideal choice for professional audio setups. Its sleek, compact design allows for easy stacking and integration with existing systems, all while providing the ultimate in sound clarity and amplification efficiency.
- 600 watts per channel for high-performance sound
- Built-in Power Sequencing Inputs to eliminate current in-rush
- Auto Sleep Mode to reduce power consumption
- Continuous variable-speed cooling fans for optimal temperature management
- Clip limiting circuits and protection for speaker safety
- Power Output: 600W per channel
- Frequency Response: 20-20kHz +/- 0.25dB
- THD: < 0.02% at 1 kHz
- Signal-to-Noise Ratio: 104 dB ref. 70V, F.P.
- Product Weight: 46 lbs.
- Dimensions: 19" W x 3" H x 18" D
Bogen X300 Public Address Equipment Overview
Bogen's Black Max amplifiers are designed to provide maximum performance in constant voltage speaker systems. Dual 70V transformerless outputs deliver exceptionally clean audio to speaker systems requiring up to 300 watts of total power in a single package. High efficiency class H amplifier design and auto-sleep feature reduce power consumption on continuously-powered systems. Rear-mounted volume controls, independent low-cut filters on each input, and pluggable input terminal strips were specifically designed for the fixed install market. Built-in power sequencing for controlling multiple Black Max amplifiers combats current in-rush problems of large audio systems. Massive power toroid and heat sinks; heavy 14-gauge chassis; Back-Slope AC voltage stabilization; clip limiters; and DC voltage, over-current, and thermal protection circuits make this a workhorse amplifier.
Technical Information
Audio
RMS Output Power:
300 W
Power Description
Input Voltage:
110 V AC
Frequency:
60 Hz
Physical Characteristics
Product Color:
Black
Height:
3.5"
Width:
17"
Depth:
16"
Weight (Approximate):
41 lb
Miscellaneous
Additional Information:
Features:
- Heavy-gauge steel chassis with cast aluminum front panel
- DC, overload, short circuit, and thermal protection circuits
- Built-in power sequencing of other Black Max amps
- Electronically balanced high-impedance inputs
- Pluggable terminal strip for sequencing wiring
- Low noise, low distortion, and high slew rate
- Easily removable front fan grilles with filters
- Transformerless direct drive outputs
Item Numbers
GTIN:
0765368140033
UPC:
765368140033
EAN:
0765368140033
UNSPSC:
52161547
