Zebra WherePort Data Networking
Versatile
Zebra WherePort -
Zebra's WherePort is used as part of Zebra's WhereNet real-time locating system (RTLS) solutions. The WherePort proximity communication exciters indicate an asset's proximity to a known area by triggering WhereTag asset tags to transmit an alternate "blink" pattern. When a WhereTag asset tag passes through the WherePort exciter magnetic field, the asset tracking tag initiates a pre-programmed and typically faster blink rate to allow more location points as the tagged asset traverses a critical threshold?for example passing through a shipping/receiving dock door or from one zone to another. Multiple WherePort IV exciters can be interconnected to provide a larger coverage area for especially large thresholds such as very large dock doors or areas where there may be signal blockage.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$1,342.11
In Stock
Get help from a Barcoding Expert!
Zebra WherePort Data Networking Options
-
Zebra WPT-3200-T1AA Data Networking
Location Solutions, Zebra WherePort III, Dart Support$1,369.50 -
Zebra WPT-3200-02DA Data Networking
Location Solutions, Zebra WherePort III, Heavy-Duty$1,929.40
Zebra WherePort Data Networking Model Overview

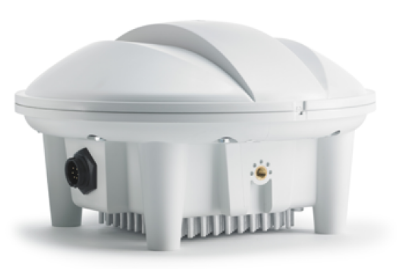

The Where Port IV® from Zebra Technologies is a cutting-edge indoor Ethernet enabled exciter designed to revolutionize asset tracking and management within your facility. With remarkable range control and configurability, it delivers precise proximity detection by triggering WhereTag IV asset tags, enhancing visibility at critical workstations such as entry gates and assembly lines. This sleek and compact device is perfect for fixed indoor applications, featuring robust dust and water resistance, ensuring reliable performance even in demanding environments.
Key Features:
Specifications:
Key Features:
- Indoor Ethernet Enabled Exciter for advanced asset tracking
- IEEE 802.3af POE Compliant for seamless installation
- Thin Profile Design ideal for confined spaces
- High Precision Range Control configurable from 0.5 m to 7 m
Specifications:
- Model: WPT-3400
- Operating Temperature: -20° C to +50° C (-4° F to +122° F)
- Storage Temperature: -40° C to +60° C (-40° F to +140° F)
- Sealing: NEMA 12, IP54
- Input Voltage: 48 VDC or PoE (802.3af compliant)
- Diameter: 19.35 cm (7.62 in)
- Depth: 6.66 cm (2.62 in)
- Weight: 1.0 Kg (2.2 lbs)
- Power (max): 12.95 Watts (PoE)
- Power (typical): 8 Watts
- RS-232c Data Rate: 19.2Kbps
- Ethernet Interface: 10/100 Mbps, RJ-45 Jack
- Transmission Frequency: 115 kHz - 127 kHz
