Zebra UWB Wand Data Networking
Zebra UWB Wand -

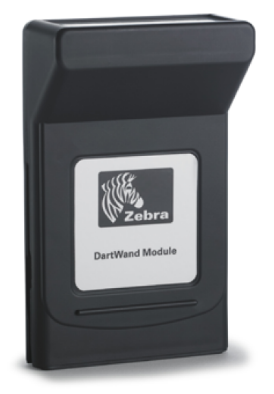

The Zebra UWB Wand Module is a smart-phone sized table-top device that supports easy wireless set up and configuration of Zebra UWB Tags as well as UWB Tag inventory and reporting.?The UWB Wand Module enables end users to easily set-up, configure and manage thousands of Zebra UWB Tags. The UWB Wand Module transmits LF commands to the UWB Tags to turn tags on/off, and to set their reporting rate. In turn, the UWB Wand Module receives command acknowledgement from the UWB Tags via their UWB channel. The UWB Wand Module is powered via a USB connector and is controlled via the included UWB Wand application software.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$5,322.31
Get help from a Barcoding Expert!
Zebra UWB Wand Data Networking Options
-
Zebra WND-3100-A-00AB Data Networking
Location Solutions, Zebra UWB Wand Module, Enables End Users to Easily Set-Up, Configure and Manage Thousands of Zebra UWB Tags, DartWand Module, ISO/IEEE Compliant$5,322.31
Zebra UWB Wand Data Networking Model Overview
The Zebra UWB Wand Module enables end users to easily set-up, configure and manage thousands of Zebra UWB Tags. UWB Tags are small, battery powered Ultra-wideband (UWB) wireless devices that periodically transmit their unique ID, typically utilized in asset management applications. UWB Tags are configured using low-frequency (LF) wireless transmissions. The UWB Wand Module transmits LF commands to the UWB Tags to turn tags on/off, and to set their reporting rate. In turn, the UWB Wand Module receives command acknowledgement from the UWB Tags via their UWB channel. The UWB Wand Module is powered via a USB connector and is controlled via the included UWB Wand application software. A typical UWB Wand Module system consists of a computer with the UWB Wand software, the Zebra UWB Wand Module with included USB cable and an optional barcode scanner.
Features and Benefits
- Easy tag list generation/association via barcode or LF wireless ping
- Capable of configuring up to 100 tags at once
- Configurable UWB Tag on and off
- Compliant with International UWB Standard, IEEE 802.15.4.f, as well as ISO-2430-61 Draft International standard
- 12 configurable UWB Tag blink rates from 0.01 to 200 Hz
- Controllable UWB read range from one foot to over 500 ft line-of-sight
- Capable of inventorying and providing reports on thousands of UWB Tags
