Zebra ZT61042-T0102A0Z RFID Printer

Zebra ZT61042-T0101A0Z RFID Printer A newer version of this item is available.
It is replaced by the Zebra ZT61042-T0101A0Z RFID Printer.
Zebra ZT610R - Industrial RFID Label Printer, Zebra ZT610R, Color Touch, Thermal Transfer, UHF Frequency Range, Bluetooth/Gigabit Ethernet/RS-232 Serial/USB, 4-inch Print Width, 203 dpi, ZPL, Tear, RFID UHF Encoder, US Cord, US/Canada
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Bluetooth, Ethernet, Serial (RS-232), USB
Print Resolution
203 dpi
Printer Options
Tear Bar
Max Print Width
4.5 inch
  • Thermal Transfer Printer provides high-quality label/receipt printing with maximum dependability
  • 203 maximum print resolution (dpi) for better reliance and added usability
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Ideal for retail tagging, manufacturing as well as healthcare tracking
  • Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
  • 4.49" maximum label width for your convenience and feasible usability
  • Supports black mark media type for maximum feasibility and better accommodation of your requirements
  • Thermal Transfer Printer with industrial application/usage provides dependable printing solution with added productivity
  • UFH Encoder feature for maximum efficiency and convenience
  • Comes with 1 GB standard memory for timely printing with added reliability
Read More

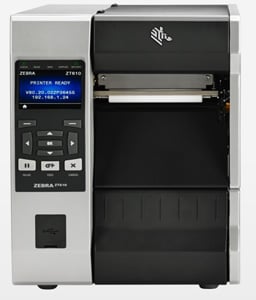

Zebra ZT610R RFID Printer Model Overview
The ZT610 is an industrial RFID printer with a 4-inch print width and a field-upgradeable RFID encoder. It is designed for applications that require high-volume RFID printing.

Key Features:
  • Field-upgradeable RFID encoder
  • Adaptive Encoding Technology simplifies RFID setup and optimizes encoding
  • Fast print speeds of up to 14 inches per second
  • Highly visible color display with easy-to-use icon menu
  • Link-OS software for easy printer management and maintenance


To stay ahead in today’s highly competitive manufacturing or transportation & logistics industries, you need technology solutions that will grow with your business. ZT610 Series printers combine industrial durability and user-friendly features with future-proof adaptability—including a factory- or field-installable RFID encoder—to meet your evolving needs for years to come. Gain greater visibility of your printing systems with Link-OS applications and managed Operational & Asset Visibility Services (OVS/AVS), plus the ability to deepen your insight into your entire business with advanced RFID printing and encoding.


Get unparalleled visibility and control with Link-OS

At Zebra, we believe printers should be as intuitive, user-friendly and integrated as the smartphones and other devices that keep us connected outside of work. With Link-OS, they are. This unique software platform gives you unprecedented, real-time visibility and control of your printing systems, on-site or remotely, with cloud-accessible applications that simplify everything from setup to management to troubleshooting.


Expand your view with industry-leading tracking technology

It only takes five minutes to upgrade the ZT610 and ZT620 to RFID encoding in the field. Once RFID-enabled, these printers are engineered to accurately and efficiently print and encode labels for today’s most advanced item-level tracking applications. Adaptive encoding enables media flexibility and simple RFID calibration, eliminating complex placement guides. An intuitive menu further reduces setup time. And Zebra’s RFID technology is certified on six continents, providing operational visibility and business insight across complex, multinational supply chains.


Get 24/7 reliability, even in the harshest environments

Built to deliver outstanding print quality under the most challenging industrial conditions, ZT600 Series printers virtually eliminate operational downtime due to printer failure. Their durable, all-metal designs hold up against extreme temperatures, dust, debris, moisture and worse. Guided instructions and feedback eliminate common errors and reduce manual adjustments for highly consistent printing. And high-quality print mechanisms and internal components deliver superior print quality and speed across the widest range of applications. A field-installable, full-width, guillotine-style cutter with catch tray is ideal for apparel tag applications.


Reduce RFID Media Costs

Tags are spaced incredibly close together, with a distance (pitch) of 0.6"/16 mm or narrower on most RFID inlays—smaller than what other printer/ encoders can accommodate. By spacing inlays closer, label converters use less material, which reduces your cost per label, requires fewer media roll changes and gives you faster printer/encoder throughput.


Customize your configuration with flexible connectivity

System setup, integration and updates are a snap with virtually every modern connectivity option. Standard connectivity includes Serial, USB, Gb Ethernet, USB Host and Bluetooth® with optional Parallel, 802.11a/c, Applicator Port, IPv6 and BTLE capabilities. You also get two open media slots for non-standard connectivity options, design failover connections and provisioning for future protocols.


Increase your efficiency with a user-friendly design

Every detail of the ZT600 Series was designed to put time back in your day. An intuitive LCD interface simplifies daily use. Color-illuminated media and ribbon paths streamline routine maintenance. Adjustable media width and pressure toggles easily accommodate more applications. And onboard sensors, diagnostics and help resources empower you to manage issues without having to call in support.


ZT600 SERIES – THE INDUSTRIAL BRAWN AND NEXT-GEN BRAINS TO MEET EVERY CHALLENGE HEAD-ON.


Standard Features

• Print Methods: Thermal transfer and direct thermal printing • Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window • Side-loading supplies path for simplified media and ribbon loading • Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality • Communications: USB 2.0, high-speed, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.0 • Highly visible color display that turns red when the printer is in an error state allows operators to determine printer status from a distance • Simplified icon menu navigation system categorizes settings into logical groups of functions

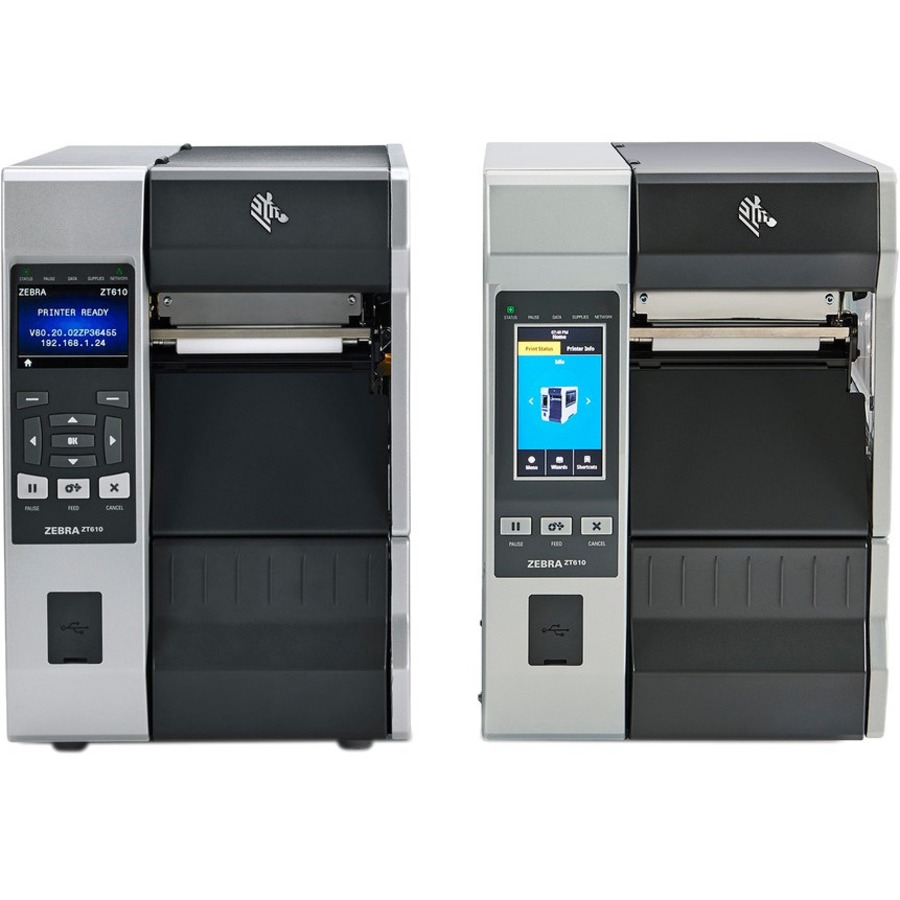

Zebra ZT61042-T0102A0Z RFID Printer Overview

The Next Generation Xi Series, now with more intelligenceand industrial brawn

Advancing the legacy of their industry-leading Xi Series predecessors, the ZT610 and ZT620 combine rugged durability and exceptional performance on a user-friendly, future-ready platform. These next-generation workhorses are designed to help you navigate the rapidly evolving business technology landscape. So, whether you're concerned about growing production line demands, increasing operational complexities, integrating disparate systems or controlling investment costs, ZT600 Series Industrial Printers have you covered today-and for years to come.

A Leap Forward in IndustrialThermal Printing

Zebra's industrial printers are well known for their durability, fast print speed, long life span and unparalleled reliability. The ZT610 and ZT620 build on that legacy, with the most advanced, comprehensive feature sets of any Zebra stationary printer series. To start, easily navigate printer settings and see status at a glance via the brightly lit, 4.3-inch full-color touch display. To keep your critical operations running smoothly across a broad range of applications, ZT600 Series printers provide:

24/7 Reliability in the Harshest Environments

ZT600 Series printers are built to withstand the most demanding industrial conditions, virtually eliminating operational downtime due to printer failure. Plus, they meet your high-volume production needs, day
in and day out, with superior print quality and speed across the widest range of applications.

Technical Information
Recommended Use:
RFID Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
14 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
12.50 ft
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128 (A/B/C)
  • ISBT-128
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • UPC-A with EAN 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • 2D
  • Codablock
  • PDF417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF
  • RSS-14
  • AZTEC
Application/Usage:
Industrial
Features:
  • UFH Encoder
  • Rugged
Mobile Device Printing:
Yes
Connectivity Technology:
Wired
Optional Connectivity:
  • Parallel
  • Wireless LAN
Memory
Standard Memory:
1 GB
Interfaces/Ports
Serial Port:
Yes
USB Host:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Gigabit Ethernet
Bluetooth:
Yes
RFID:
Yes
Display & Graphics
Display Screen:
Yes
Screen Size:
4.3"
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Black Mark
  • Notch
  • Continuous Label
  • Die-cut Label
  • RFID Label
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
9.84 mil
Maximum Roll Diameter:
7.99"
Maximum Label Width:
4.49"
Fonts & Emulation
Language Emulation:
  • ZPL
  • ZPL II
  • XML
  • ZBI 2.0
Software
Operating System Supported:
Link-OS
Power Description
Power Source:
AC Supply
Environmental Conditions
Operating Temperature:
41°F (5°C) - 104°F (40°C)
Operating Relative Humidity:
20% - 85%
Storage Temperature:
-22°F (-30°C) - 140°F (60°C)
Storage Relative Humidity:
20% - 85%
Physical Characteristics
Height:
15.6"
Width:
10.6"
Depth:
19.9"
Weight (Approximate):
50 lb
Miscellaneous
Power Cable Localization:
US
Platform Supported:
PC
Energy Star:
Yes
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra ZT61042-T0102A0Z RFID Printer is also known as ZEB-ZT61042T0102A0Z or ZT61042T0102A0Z.
