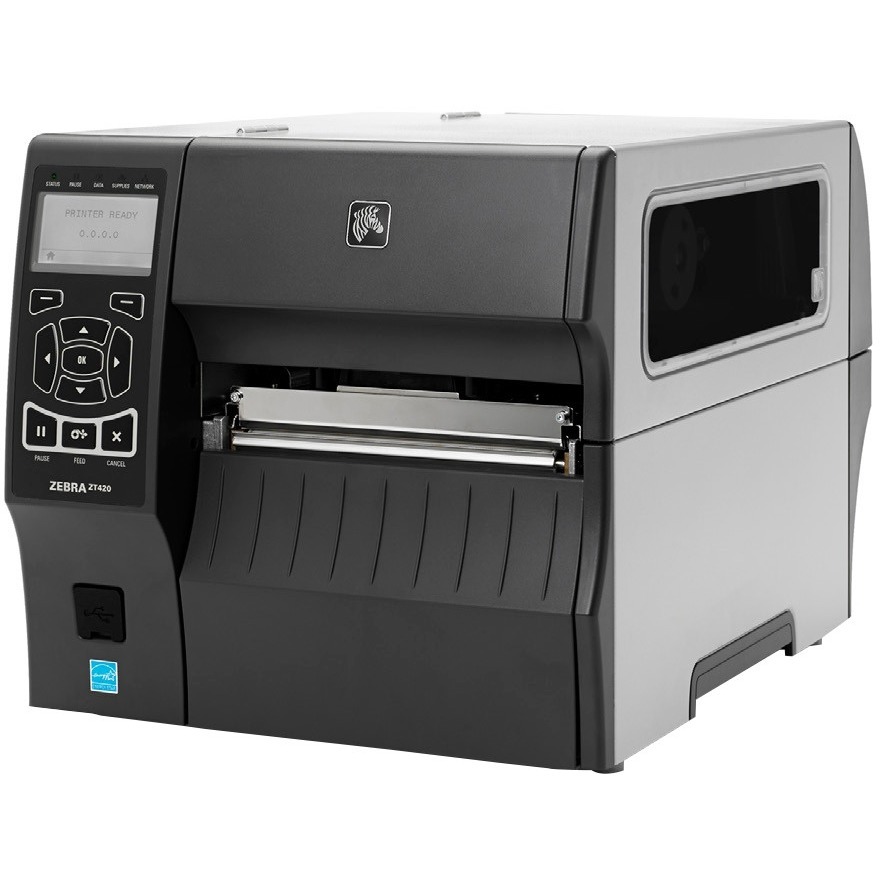

Zebra ZT42063-T0100A0Z Barcode Label Printer

Zebra ZT42163-T0100A0Z RFID Printer A newer version of this item is available.
It is replaced by the Zebra ZT42163-T0100A0Z RFID Printer.
Zebra ZT400 : ZT420 RFID - Thermal Transfer/Direct Thermal printing, RFID encoding, 300 dpi, 6" print width, USB/RS-232/Ethernet/Bluetooth interfaces
Printer Type
Industrial
Interface Options
Bluetooth, Ethernet, Serial (RS-232), USB
Print Resolution
300 dpi
  • Direct Thermal/Thermal Transfer Printer is a reliable label/receipt printing solution with maximum efficiency
  • 300 maximum print resolution (dpi) for your convenience and easy usage
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Ideal for retail tagging, manufacturing as well as healthcare tracking
  • Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
  • 7.01" maximum label width for your convenience and feasible usability
  • 39" maximum label length to easily accommodate your needs with added productivity
  • Supports label media type for maximum feasibility and better accommodation of your requirements
  • Direct Thermal/Thermal Transfer Printer with desktop application/usage provides dependable printing solution with added productivity
  • Element Energy Equalizer feature for maximum efficiency and convenience
Read More

Need a different version? See all Zebra ZT420 RFID Printers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Zebra ZT42063-T0100A0Z Barcode Label Printer
Zebra ZT42063-T0100A0Z Barcode Label Printer Zebra ZT42063-T0100A0Z Barcode Label Printer Zebra ZT42063-T0100A0Z Barcode Label Printer
Zebra ZT42063-T0100A0Z Barcode Label Printer
Zebra ZT42063-T0100A0Z Barcode Label Printer
Zebra ZT42063-T0100A0Z Barcode Label Printer
Full specifications (PDF)
Zebra ZT420 RFID Printer Model Overview
Fast and reliable, the ZT420 RFID printer/encoder has a print width of 6 inches and can print up to 12 ips. The ZT400 Series RFID features adaptive encoding technology for excellent media flexibility and simple RFID calibration.
Zebra ZT42063-T0100A0Z Barcode Label Printer Overview
Keep your critical operations running efficiently with Zebra's durable ZT400 Series printers,designed for years of performance in a wide array of applications.

The ZT400 Series builds on the field-proven reliability of the Z Series™ with advancements in print speed, print quality and connectivity options. Designed for ease of use, the ZT400 Series printers offer an intuitive iconbased LCD graphical user interface and easy supplies loading. And, they include standard USB, Serial, Ethernet and Bluetooth® capabilities. Expanded RFID capacities deliver greater tracking abilities, deeper visibility and enterprise insights.
Full specifications (PDF)
Technical Information
Recommended Use:
RFID Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
6.61"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • UPC-E
  • UPC-A
  • EAN-13
  • EAN-8
  • UPC-E with EAN 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • Codablock
  • PDF-417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF
  • RSS-14
  • RSS Composite
  • Aztec Code
Encoding Technology:
  • RFID Encoder
  • UFH Encoder
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
  • Element Energy Equalizer
  • Bi-color LED
  • Tear Bar
Memory
Standard Memory:
256 MB
Flash Memory:
512 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Bluetooth:
Yes
RFID:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Label
  • Continuous Label
  • Die-cut Label
  • Notch
  • Black Mark
  • RFID Label
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
9.84 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
7.01"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL
  • EPL
  • ZPL II
  • XML
Software
Operating System Supported:
Zebra's Link-OS
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
12.8"
Width:
13.3"
Depth:
19.5"
Weight (Approximate):
40 lb
Miscellaneous
Power Cable Localization:
US
Package Contents:
  • ZT400 ZT420 RFID Label Printer
  • US Power Cords
  • Software and Drivers CD
  • User Documentation
Cables Included:
AC
Platform Supported:
PC
Certifications & Standards:
  • Uni Code
  • PFC
  • IEC 60950
  • EN 55022 Class B
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3
  • cTUVus
  • CE Marking
  • FCC-B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • S-Mark (Arg)
  • CCC
  • CU
  • BSMI
  • KCC
  • SABS
  • IN-Metro
Energy Star:
Yes
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0783555019160
UPC: 783555019160
EAN: 0783555019160
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra ZT42063-T0100A0Z Barcode Label Printer is also known as ZEB-ZT42063T0100A0Z or ZT42063T0100A0Z.
