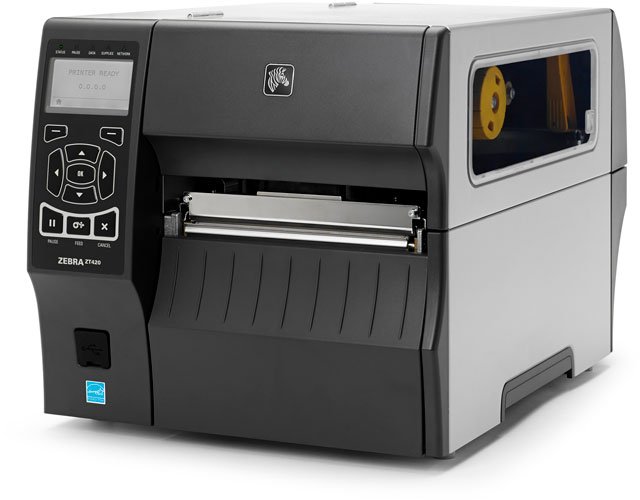

Zebra ZT400: ZT420 – Barcode Label Printer – 203 dpi – Cutter

Part Number: ZT42062-T210000Z
Model: ZT420
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Interface Options
Bluetooth, Serial (RS-232), USB
Print Resolution
203 dpi
Printer Options
Cutter

Product Description:

  Thermal Transfer/Direct Thermal printing, 203 dpi, 6" print width, RS-232/USB/Bluetooth interfaces, US Power Cord, Cutter and Catch Tray.
Explore all Zebra ZT420 Barcode Label Printers
Add to Quote
Zebra ZT42062-T210000Z Barcode Label Printer
Zebra ZT42062-T210000Z Barcode Label Printer
Zebra ZT42062-T210000Z Barcode Label Printer
Zebra ZT42062-T210000Z Barcode Label Printer Zebra ZT42062-T210000Z Barcode Label Printer

Full specifications (PDF)

Zebra ZT420 Barcode Label Printer Model Overview

The ZT420 Series printers are rugged and loaded with a standard set of advanced features allowing for use in the widest array of Manufacturing, Transportation and Logistics, Healthcare and Retail applications. Building on the Z Series' reliability with advancements in print speed, connectivity options, management and support tools, the ZT420 can be integrated into a wide range of environments.
Zebra ZT42062-T210000Z Barcode Label Printer Overview

Keep your critical operations running efficiently. Constructed with an all-metal frame and bi-fold door, ZT400 Series printers deliver advancements in print speed, registration and connectivity as well as additional advanced features.

ZT400 printers feature USB, Serial, Ethernet and Bluetooth® connectivity along with expanded RFID capabilities. And with Zebra's Link-OS® environment, an innovative operating system, you can easily integrate, manage and maintain these printers from anywhere in the world.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
6.61"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • UPC-E
  • UPC-A
  • EAN-13
  • EAN-8
  • UPC-E with EAN 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • Codablock
  • PDF-417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF
  • RSS-14
  • RSS Composite
  • Aztec Code
Real Time Clock:
Yes
Application/Usage:
Industrial
Features:
  • Element Energy Equalizer
  • Bi-color LED
  • Tear Bar
Memory
Standard Memory:
256 MB
Flash Memory:
512 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Bluetooth:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Label
  • Continuous Label
  • Die-cut Label
  • Notch
  • Black Mark
Media Handling:
Catch Tray
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
9.84 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
7.01"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL
  • EPL
  • ZPL II
  • XML
Software
Operating System Supported:
Zebra's Link-OS
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
12.8"
Width:
13.3"
Depth:
19.5"
Weight (Approximate):
40 lb
Miscellaneous
Power Cable Localization:
US
Package Contents:
  • ZT400 ZT420 Label Printer
  • US Power Cords
  • Software and Drivers CD
  • User Documentation
Cables Included:
AC
Platform Supported:
  • PC
  • Handheld
Certifications & Standards:
  • Uni Code
  • PFC
  • IEC 60950
  • EN 55022 Class B
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3
  • cTUVus
  • CE Marking
  • FCC-B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • S-Mark (Arg)
  • CCC
  • CU
  • BSMI
  • KCC
  • SABS
  • IN-Metro
Energy Star:
Yes
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0024606604813, 0783555113264
UPC: 024606604813, 783555113264
EAN: 0024606604813, 0783555113264
UNSPSC: 43212108

Recommended Accessories

Category

  • Barcode Label Rewinder (1)
  • Printer Accessories (8)

Recommended Accessories for Model: Zebra ZT42062-T210000Z Barcode Label Printer

Top Barcode Label Rewinder Purchased With Zebra ZT42062-T210000Z

Top Printer Accessories Purchased With Zebra ZT42062-T210000Z

See All Printer Accessories for Zebra ZT42062-T210000Z Barcode Label Printer >
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra ZT42062-T210000Z Barcode Label Printer is also known as ZEB-ZT42062T210000Z or ZT42062T210000Z.
