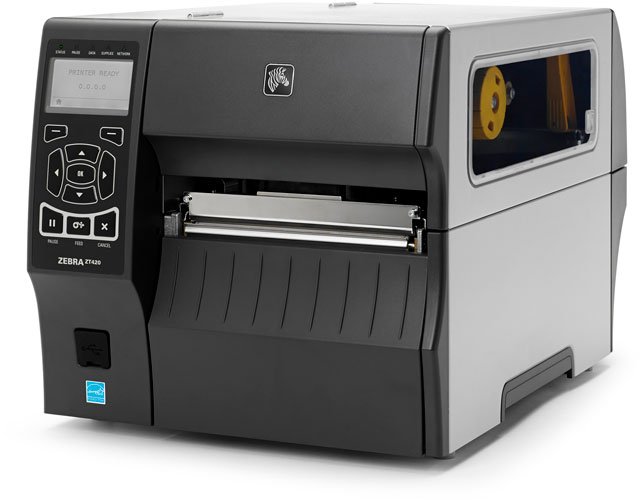

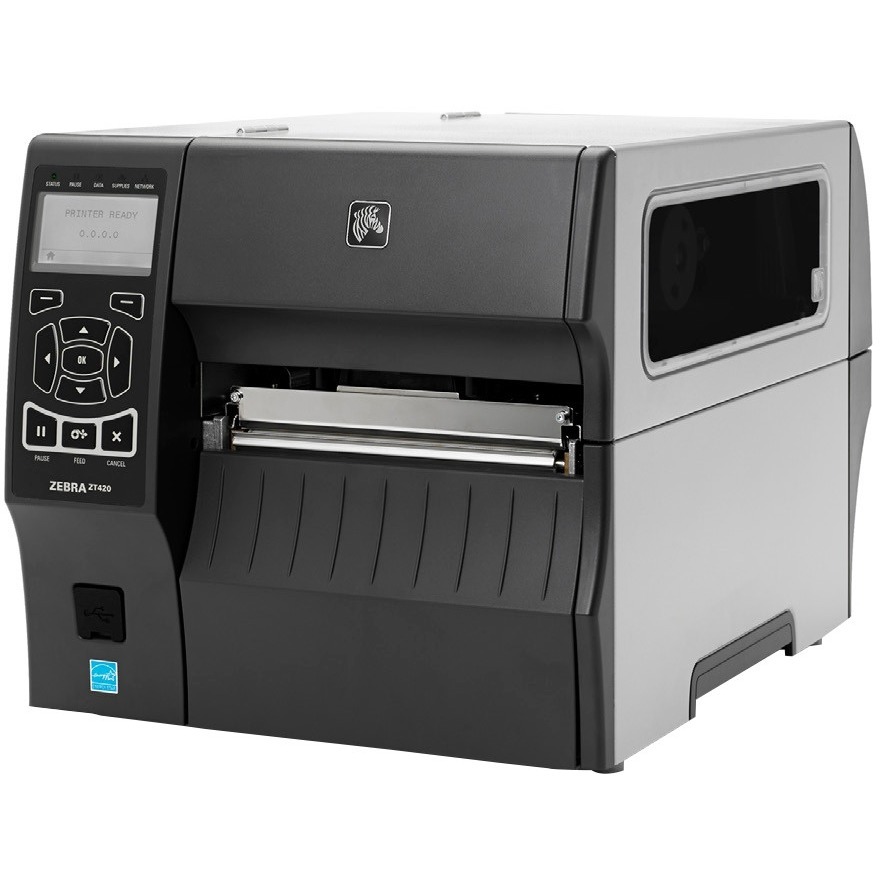

Zebra ZT400 : ZT420 – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: ZT42062-T01A000Z

Model: ZT420

Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Printer Type

Industrial

Printing Technology

Thermal Transfer

Print Resolution

203 dpi

Max Print Width

6.5 inch

Product Description:

Thermal Transfer/Direct Thermal printing, 203 dpi, 6" print width, USB/RS-232/Ethernet/Bluetooth/WiFi interfaces

Explore all Zebra ZT420 Barcode Label Printers

Add to Quote

Zebra ZT42062-T01A000Z Barcode Label Printer

Overview

Full specifications (PDF)

Zebra ZT420 Barcode Label Printer Model Overview

The ZT420 Series printers are rugged and loaded with a standard set of advanced features allowing for use in the widest array of Manufacturing, Transportation and Logistics, Healthcare and Retail applications. Building on the Z Series' reliability with advancements in print speed, connectivity options, management and support tools, the ZT420 can be integrated into a wide range of environments.

Zebra ZT42062-T01A000Z Barcode Label Printer Overview

Keep your critical operations running efficiently with Zebra's durable ZT400 Series printers,designed for years of performance in a wide array of applications.

The ZT400 Series builds on the field-proven reliability of the Z Series™ with advancements in print speed, print quality and connectivity options. Designed for ease of use, the ZT400 Series printers offer an intuitive iconbased LCD graphical user interface and easy supplies loading. And, they include standard USB, Serial, Ethernet and Bluetooth® capabilities. Expanded RFID capacities deliver greater tracking abilities, deeper visibility and enterprise insights.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

12 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

6.61"

Barcode Symbology Supported:

Code 11
Code 39
Code 93
Code 128-A
Code 128-B
Code 128-C
UCC Case Codes
ISBT-128
UPC-E
UPC-A
EAN-13
EAN-8
UPC-E with EAN 2 or 5 Digit Extension
Plessey
POSTNET
Standard 2 of 5
Industrial 2 of 5
Interleaved 2 of 5
LOGMARS
MSI
Codabar
Planet Code
Codablock
PDF-417
Code 49
Data Matrix
Maxi Code
QR Code
TLC 39
Micro PDF
RSS-14
RSS Composite
Aztec Code

Real Time Clock:

Yes

Application/Usage:

Desktop

Features:

Element Energy Equalizer
Bi-color LED
Tear Bar

Memory

Standard Memory:

256 MB

Flash Memory:

512 MB

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Bluetooth:

Yes

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11a/b/g/n

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Label
Continuous Label
Die-cut Label
Notch
Black Mark

Media Sensor:

Transmissive Media Sensor
Reflective Media Sensor

Media Thickness:

9.84 mil

Maximum Roll Diameter:

Maximum Label Width:

7.01"

Maximum Label Length:

39"

Label Core Size:

Ribbon Core Size:

Fonts & Emulation

Language Emulation:

ZPL
EPL
ZPL II
XML

Software

Operating System Supported:

Zebra's Link-OS

Power Description

Power Source:

AC Supply

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

12.8"

Width:

13.3"

Depth:

19.5"

Weight (Approximate):

40 lb

Miscellaneous

Power Cable Localization:

Package Contents:

ZT400 ZT420 Label Printer
US Power Cords
Software and Drivers CD
User Documentation

Cables Included:

Platform Supported:

Certifications & Standards:

Uni Code
PFC
IEC 60950
EN 55022 Class B
EN 55024
EN 61000-3-2
EN 61000-3-3
cTUVus
CE Marking
FCC-B
ICES-003
VCCI
C-Tick
NOM
S-Mark (Arg)
CCC
CU
BSMI
KCC
SABS
IN-Metro

Energy Star:

Yes

Environmentally Friendly:

Yes

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0024606604790, 0640213048712, 4943793119381, 4963273147185

UPC: 024606604790, 640213048712

EAN: 0024606604790, 0640213048712, 4943793119381, 4963273147185

UNSPSC: 43212108
