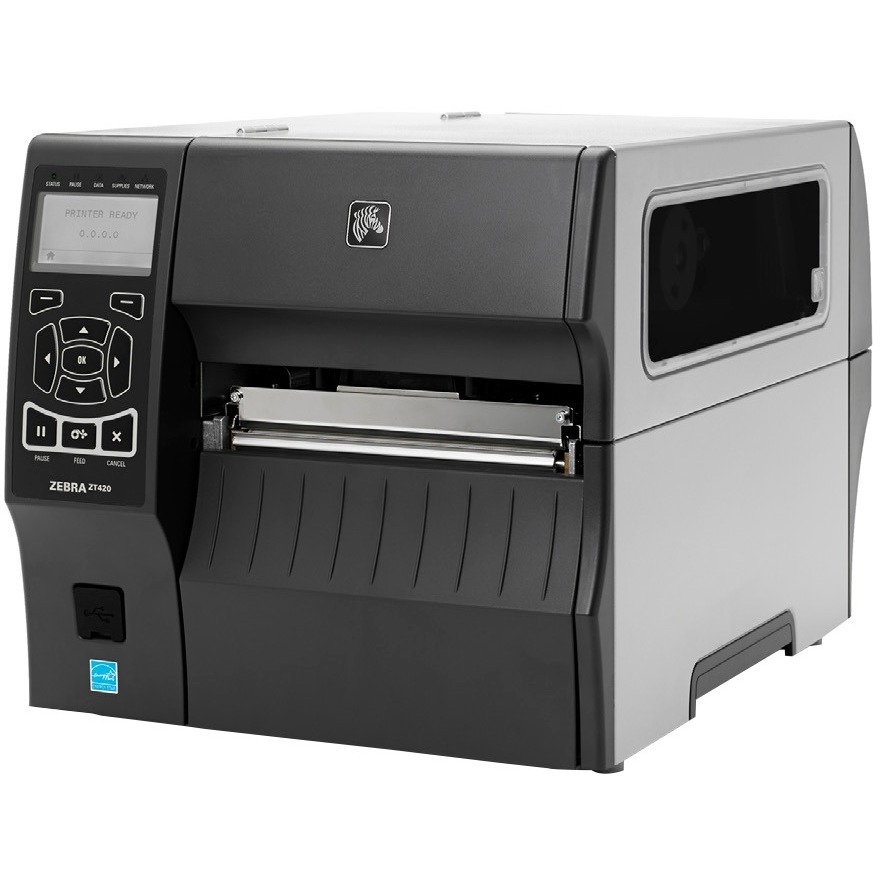

Zebra ZT400 : ZT420 RFID – Barcode Label Printer – 203 dpi

Part Number: ZT42062-T0100A0Z
Model: ZT420 RFID
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Printer Type
Industrial
Print Resolution
203 dpi

Product Description:

  Thermal Transfer/Direct Thermal printing, RFID encoding, 203 dpi, 6" print width, USB/RS-232/Ethernet/Bluetooth interfaces
Explore all Zebra ZT420 RFID Printers
Add to Quote
Zebra ZT42062-T0100A0Z Barcode Label Printer
Zebra ZT42062-T0100A0Z Barcode Label Printer
Zebra ZT42062-T0100A0Z Barcode Label Printer
Zebra ZT42062-T0100A0Z Barcode Label Printer Zebra ZT42062-T0100A0Z Barcode Label Printer Zebra ZT42062-T0100A0Z Barcode Label Printer
Full specifications (PDF)

Zebra ZT420 RFID Printer Model Overview

Fast and reliable, the ZT420 RFID printer/encoder has a print width of 6 inches and can print up to 12 ips. The ZT400 Series RFID features adaptive encoding technology for excellent media flexibility and simple RFID calibration.
Zebra ZT42062-T0100A0Z Barcode Label Printer Overview
Keep your critical operations running efficiently with Zebra's durable ZT400 Series printers,designed for years of performance in a wide array of applications.

The ZT400 Series builds on the field-proven reliability of the Z Series™ with advancements in print speed, print quality and connectivity options. Designed for ease of use, the ZT400 Series printers offer an intuitive iconbased LCD graphical user interface and easy supplies loading. And, they include standard USB, Serial, Ethernet and Bluetooth® capabilities. Expanded RFID capacities deliver greater tracking abilities, deeper visibility and enterprise insights.
Full specifications (PDF)
Technical Information
Recommended Use:
RFID Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
6.61"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • UPC-E
  • UPC-A
  • EAN-13
  • EAN-8
  • UPC-E with EAN 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • Codablock
  • PDF-417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF
  • RSS-14
  • RSS Composite
  • Aztec Code
Encoding Technology:
  • UFH Encoder
  • RFID Encoder
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
  • Element Energy Equalizer
  • Bi-color LED
  • Tear Bar
Memory
Standard Memory:
256 MB
Flash Memory:
512 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Bluetooth:
Yes
RFID:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Label
  • Continuous Label
  • Die-cut Label
  • Notch
  • Black Mark
  • RFID Label
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
9.84 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
7.01"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL
  • EPL
  • ZPL II
  • XML
Software
Operating System Supported:
Zebra's Link-OS
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
12.8"
Width:
13.3"
Depth:
19.5"
Weight (Approximate):
40 lb
Miscellaneous
Power Cable Localization:
US
Package Contents:
  • ZT400 ZT420 RFID Label Printer
  • US Power Cords
  • Software and Drivers CD
  • User Documentation
Cables Included:
AC
Platform Supported:
PC
Certifications & Standards:
  • Uni Code
  • PFC
  • IEC 60950
  • EN 55022 Class B
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3
  • cTUVus
  • CE Marking
  • FCC-B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • S-Mark (Arg)
  • CCC
  • CU
  • BSMI
  • KCC
  • SABS
  • IN-Metro
Energy Star:
Yes
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0783555113271
UPC: 783555113271
EAN: 0783555113271
UNSPSC: 43212108

Recommended Accessories

Category

  • Barcode Label Rewinder (1)
  • Printer Accessories (8)

Recommended Accessories for Model: Zebra ZT42062-T0100A0Z Barcode Label Printer

Top Barcode Label Rewinder Purchased With Zebra ZT42062-T0100A0Z

Top Printer Accessories Purchased With Zebra ZT42062-T0100A0Z

See All Printer Accessories for Zebra ZT42062-T0100A0Z Barcode Label Printer >
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra ZT42062-T0100A0Z Barcode Label Printer is also known as ZEB-ZT42062T0100A0Z or ZT42062T0100A0Z.
