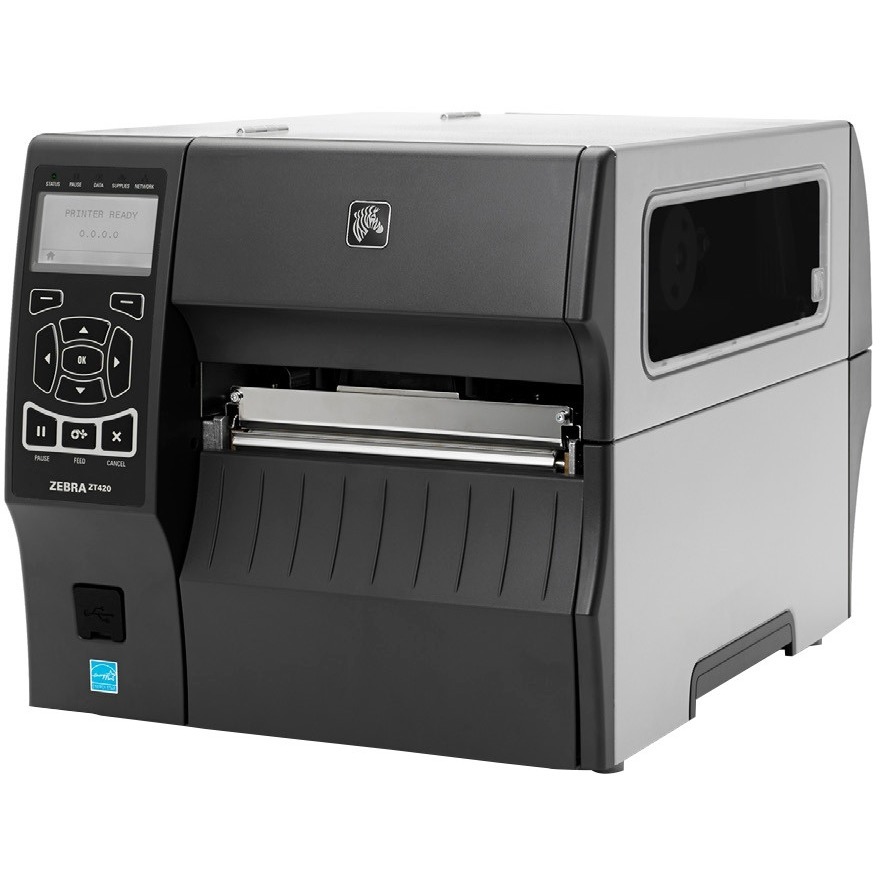

Zebra ZT42062-T010000Z Barcode Label Printer

Zebra ZT400: ZT420 - Thermal transfer printing, 203 dpi, 6" print width, USB/RS-232/Ethernet/Bluetooth interfaces, Tear bar, EPL/ZPL2, US Power cord.
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
Read More

Full specifications (PDF)

The ZT420 Series printers are rugged and loaded with a standard set of advanced features allowing for use in the widest array of Manufacturing, Transportation and Logistics, Health care and Retail applications. Building on the Z Series' reliability with advancements in print speed, connectivity options, management and support tools, the ZT420 can be integrated into a wide range of environments.
Zebra ZT42062-T010000Z Overview
Keep your critical operations running efficiently with Zebra's durable ZT400 Series printers,designed for years of performance in a wide array of applications.

The ZT400 Series builds on the field-proven reliability of the Z Series™ with advancements in print speed, print quality and connectivity options. Designed for ease of use, the ZT400 Series printers offer an intuitive iconbased LCD graphical user interface and easy supplies loading. And, they include standard USB, Serial, Ethernet and Bluetooth® capabilities. Expanded RFID capacities deliver greater tracking abilities, deeper visibility and enterprise insights.
Loading...

Full specifications (PDF)

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution:
203 dpi
Maximum Print Width:
6.61"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • UPC-E
  • UPC-A
  • EAN-13
  • EAN-8
  • UPC-E with EAN 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • Codablock
  • PDF-417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF
  • RSS-14
  • RSS Composite
  • Aztec Code
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
  • Element Energy Equalizer
  • Bi-color LED
  • Tear Bar
Memory
Standard Memory:
256 MB
Flash Memory:
512 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Bluetooth:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Label
  • Continuous Label
  • Die-cut Label
  • Notch
  • Black Mark
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
9.84 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
7.01"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL
  • EPL
  • ZPL II
  • XML
Software
Operating System Supported:
Zebra's Link-OS
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
12.8"
Width:
13.3"
Depth:
19.5"
Weight (Approximate):
40 lb
Miscellaneous
Power Cable Localization:
US
Package Contents:
  • ZT400 ZT420 Label Printer
  • US Power Cords
  • Software and Drivers CD
  • User Documentation
Cables Included:
AC
Platform Supported:
PC
Certifications & Standards:
  • Uni Code
  • PFC
  • IEC 60950
  • EN 55022 Class B
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3
  • cTUVus
  • CE Marking
  • FCC-B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • S-Mark (Arg)
  • CCC
  • CU
  • BSMI
  • KCC
  • SABS
  • IN-Metro
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
ENERGY STAR
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0005314021031, 0595612263924, 0783555037911
UPC: 005314021031, 595612263924, 783555037911
EAN: 0005314021031, 0595612263924, 0783555037911
UNSPSC: 43212108

Loading...
Loading...
Loading...
Loading...

The Zebra ZT42062-T010000Z is also known as ZEB-ZT42062T010000Z or ZT42062T010000Z .
