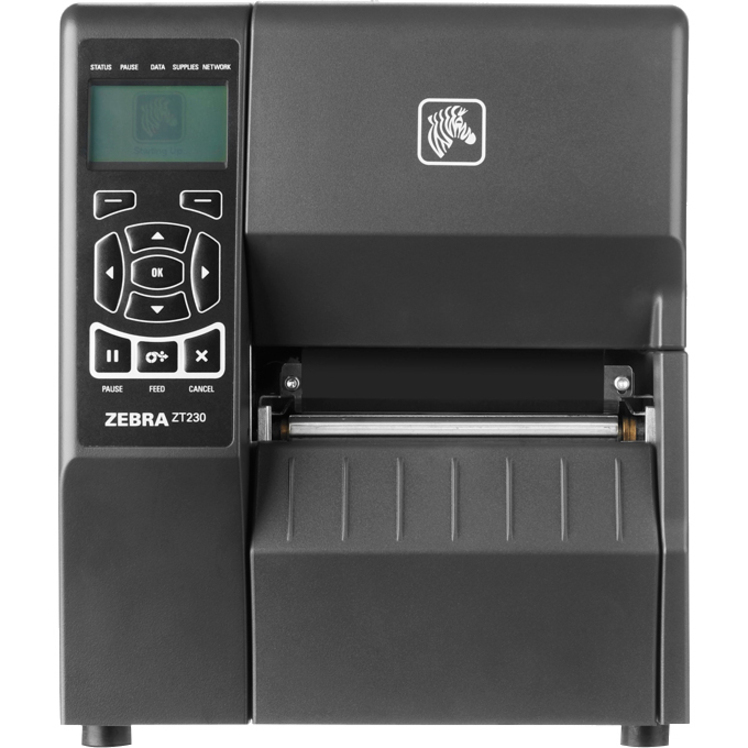

Zebra ZT230 – Barcode Label Printer – 300 dpi

Part Number: ZT23043-T01A00FZ
Model: ZT230
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Interface Options
Serial (RS-232), USB, Wi-Fi
Print Resolution
300 dpi
Max Print Width
4.5 inch

Product Description:

  Industrial Label Printer, Zebra ZT230, Thermal Transfer, 300 dpi, 6ips, Serial/USB/Wireless, 4-inch Print Width, US/Canada, Cables Sold Separately

Zebra ZT200 Series Barcode Label Printer Model Overview

Zebra's ZT200 Series Printers deliver exceptional value with an innovative, space-saving design crafted from extensive customer feedback. Ideal for businesses transitioning to barcode technology or upgrading from older models, the ZT200 Series offers intuitive operation and ease of maintenance. With features such as tool-less component replacement and minimal operator training required, this series ensures a seamless experience across various labeling applications, from manufacturing to retail. Equipped with Zebra's Link-OS® environment, the ZT200 Series simplifies integration and management, making it a smart choice for diverse operational needs.
Key Features
  • Compact Design: Streamlined footprint fits perfectly in tight spaces.
  • Effortless Setup: Quick installation with multiple connectivity options.
  • Intuitive Media Loading: Side-loading design with color-coded cues for easy operation.
  • Outstanding Print Quality: Engineered for precision with fine-tuned adjustments.
  • Durability: Built to withstand light industrial environments.
  • Simplified Serviceability: Easy tool-less maintenance for increased uptime.

Specifications
  • Print Methods: Direct-thermal or thermal-transfer (optional)
  • Construction: Metal frame (ZT230) or high-impact polymer case (ZT220)
  • Print Resolution: 203 dpi standard, 300 dpi optional
  • Maximum Print Width: 4.09" / 104 mm
  • Maximum Print Speed: 6” / 152 mm per second
  • Media Sensors: Transmissive and reflective
  • Operating Temperature: 40° F / 5° C to 105° F / 40° C (Thermal Transfer)
  • Weight: 17 lbs / 7.8 kg (ZT220), 20 lbs / 9.1 kg (ZT230)
  • ENERGY STAR Qualified: Yes
Zebra ZT23043-T01A00FZ Barcode Label Printer Overview
Zebra incorporated extensive customer feedback, as well as the legacy of our industry leading Stripe and S4M printers, to create the new ZT200 Series family of printers with elegant space saving design, effortless setup, intuitive user operation, and ease of service and maintenance.
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • UPC-A
  • UPC-E
  • EAN-13
  • EAN-8
  • EAN With 2 or 5 Digit Extension
  • UPC 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • RSS Composite
  • Planet Code
  • Codablock
  • PDF-417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF
  • RSS-14
  • Aztec Code
  • Micro PDF-417
Application/Usage:
Industrial
Features:
  • Tear Bar
  • Clear Bi-fold Media Side Door
  • Element Energy Equalizer
  • Bi-color LED
  • Icon-graphics
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
128 MB
Memory Technology:
DRAM
Flash Memory:
128 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Continuous Label
  • Die-cut Label
  • Notch
  • Black Mark
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
10.9"
Width:
9.5"
Depth:
17"
Weight (Approximate):
20 lb
Miscellaneous
Package Contents:
  • ZT230 Industrial Printer
  • Power Cord with US Plug
Platform Supported:
PC
Certifications & Standards:
  • IEC 60950
  • EN 55022 Class B
  • EN55024
  • EN 61000-3-2
  • EN 61000-3-3
  • UL
  • CE Marking
  • FCC-B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • IRAM
  • CCC
  • GOST-R
  • Unicode
  • KCC
  • BSMI
  • UkrSepro
Energy Star:
Yes
Environmentally Friendly:
Yes
Item Numbers
GTIN: 0032017083448, 0637698606469, 0783555012772
UPC: 032017083448, 637698606469, 783555012772
EAN: 0032017083448, 0637698606469, 0783555012772
UNSPSC: 43212108
