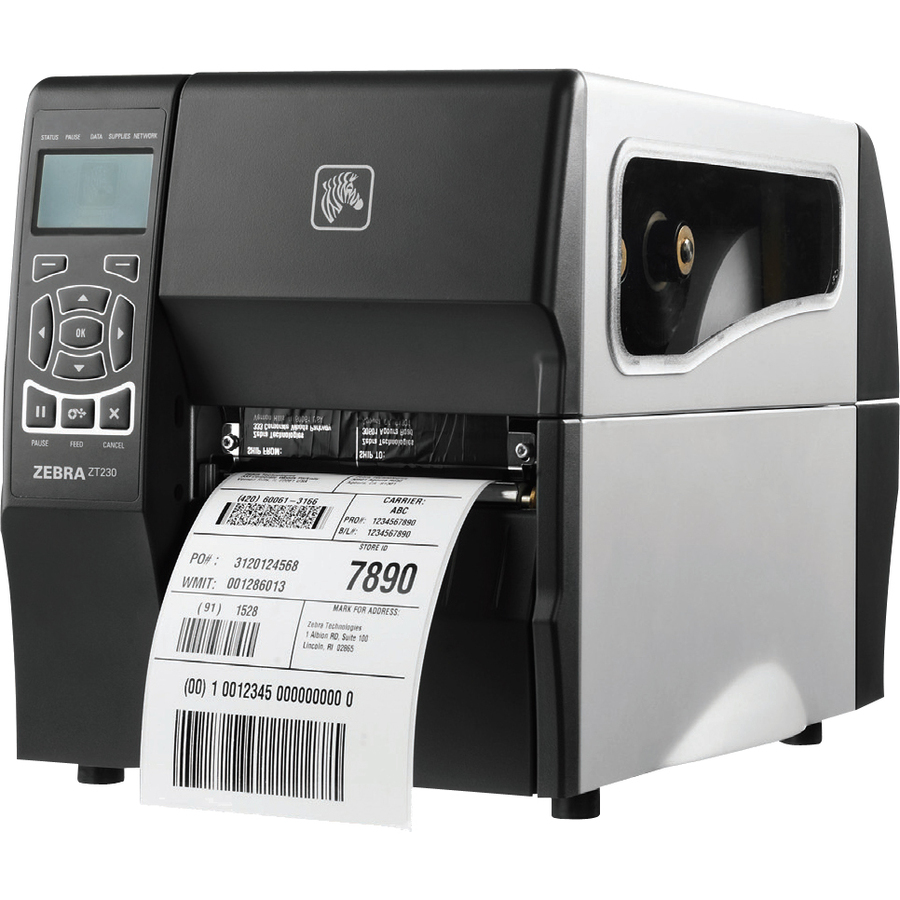

Zebra ZT230 – Barcode Label Printer – 300 dpi – Peeler

Part Number: ZT23043-D11A00FZ
Model: ZT230
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Interface Options
Serial (RS-232), USB, Wi-Fi
Print Resolution
300 dpi
Printer Options
Peeler

Product Description:

  Industrial Label Printer, Zebra ZT230, Direct Thermal, 300 dpi, 6ips, Serial/USB/Wireless, Peeler, 4-inch Print Width, Includes US Power Cord, Cables Sold Separately
Explore all Zebra ZT230 Barcode Label Printers
Add to Quote
Zebra ZT23043-D11A00FZ Barcode Label Printer
Zebra ZT23043-D11A00FZ Barcode Label Printer
Zebra ZT23043-D11A00FZ Barcode Label Printer
Zebra ZT23043-D11A00FZ Barcode Label Printer Zebra ZT23043-D11A00FZ Barcode Label Printer

Full specifications (PDF)

Zebra ZT230 Barcode Label Printer Model Overview

The ZT230 Industrial label printer from Zebra has been designed for ease of use, versatility and outstanding value. Zebra’s most affordable industrial printer, the ZT230 incorporates extensive customer feedback and the learnings from legacy printers—creating innovative printers with a space saving design. Featuring Zebra’s Link-OS® environment, the ZT200 Series provides users with effortless setup, intuitive operation and ease of service and maintenance. Ideal for manufacturing, transportation & logistics, healthcare, retail, and government, The ZT230 printer offers a streamlined design and smaller footprint that most industrial printers. Multiple connectivity options, including Parallel, 10/100 Ethernet, and 802.11a/b/g/n wireless provide options to integrate into any environment. Icon-based status LEDs provide immediate and easily visible printer status to allow you supreme efficiency in your printing operations.
Zebra ZT23043-D11A00FZ Barcode Label Printer Overview

Zebra incorporated extensive customer feedback, as well as the legacy of our industry leading Stripe and S4M printers, to create the new ZT200 Series family of printers with elegant space saving design, effortless setup, intuitive user operation, and ease of service and maintenance.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • EAN With 2 or 5 Digit Extension
  • UPC 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • Codablock
  • PDF-417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF
  • RSS-14
  • Aztec Code
  • Micro PDF-417
Peel Facility:
Yes
Application/Usage:
Industrial
Features:
  • Clear Bi-fold Media Side Door
  • Element Energy Equalizer
  • Icon-graphics
Memory
Standard Memory:
128 MB
Memory Technology:
DRAM
Flash Memory:
128 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Black Mark
  • Continuous Label
  • Die-cut Label
  • Notch
Media Handling:
1 x Catch Tray
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
39"
Label Core Size:
3"
Fonts & Emulation
Language Emulation:
ZPL
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
10.9"
Width:
9.5"
Depth:
17"
Weight (Approximate):
20 lb
Miscellaneous
Package Contents:
  • ZT230 Industrial Printer
  • Power Cord with US plug
Platform Supported:
PC
Certifications & Standards:
  • PFC
  • IEC 60950
  • EN 55022 Class B
  • EN55024
  • EN 61000-3-2
  • EN 61000-3-3
  • UL
  • CE Marking
  • FCC-B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • IRAM
  • CCC
  • GOST-R
  • Unicode
Energy Star:
Yes
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0783555107652
UPC: 783555107652
EAN: 0783555107652
UNSPSC: 45101512
