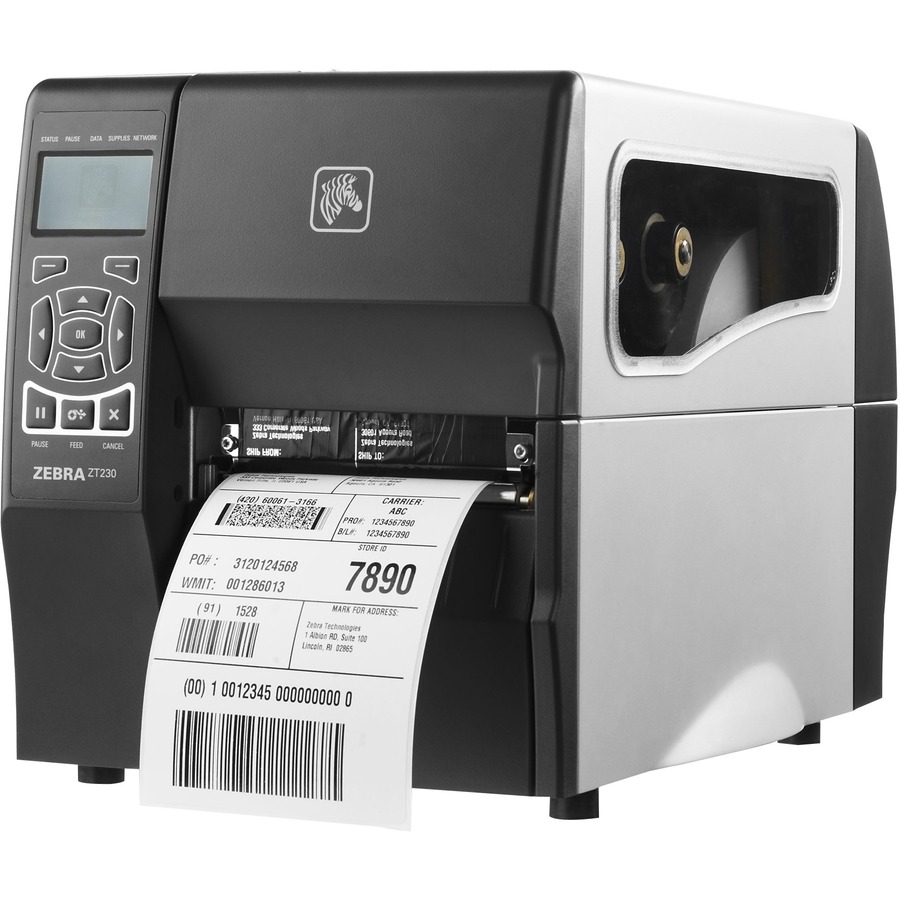

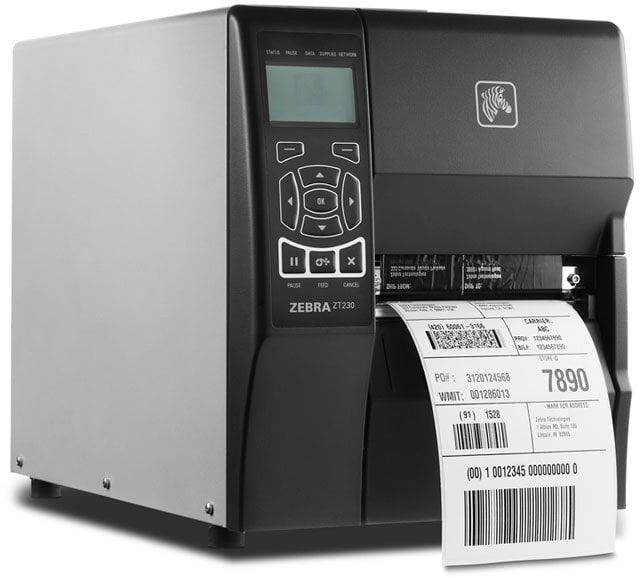

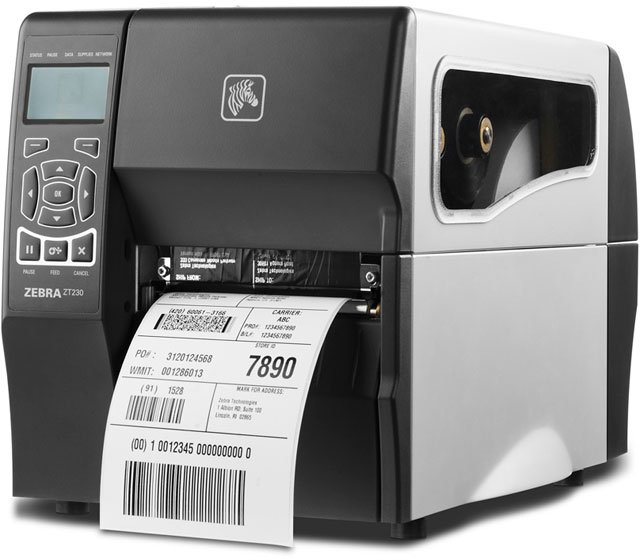

Zebra ZT230 – Barcode Label Printer – 203 dpi

Part Number: ZT23042-T0E200FZ
Model: ZT230
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Printer Type
Industrial
Print Resolution
203 dpi

Product Description:

  Thermal Transfer printing, 203 dpi, 4" print width, Serial, USB, and Ethernet Interfaces, and EU/UK Power cord. Cables sold separately.
Explore all Zebra ZT230 Barcode Label Printers
Add to Quote
Zebra ZT23042-T0E200FZ Barcode Label Printer
Zebra ZT23042-T0E200FZ Barcode Label Printer
Zebra ZT23042-T0E200FZ Barcode Label Printer
Zebra ZT23042-T0E200FZ Barcode Label Printer
Zebra ZT23042-T0E200FZ Barcode Label Printer
Zebra ZT23042-T0E200FZ Barcode Label Printer
Zebra ZT23042-T0E200FZ Barcode Label Printer Zebra ZT23042-T0E200FZ Barcode Label Printer Zebra ZT23042-T0E200FZ Barcode Label Printer Zebra ZT23042-T0E200FZ Barcode Label Printer Zebra ZT23042-T0E200FZ Barcode Label Printer

Full specifications (PDF)

Zebra ZT230 Barcode Label Printer Model Overview

The ZT230 Industrial label printer from Zebra has been designed for ease of use, versatility and outstanding value. Zebra’s most affordable industrial printer, the ZT230 incorporates extensive customer feedback and the learnings from legacy printers—creating innovative printers with a space saving design. Featuring Zebra’s Link-OS® environment, the ZT200 Series provides users with effortless setup, intuitive operation and ease of service and maintenance. Ideal for manufacturing, transportation & logistics, healthcare, retail, and government, The ZT230 printer offers a streamlined design and smaller footprint that most industrial printers. Multiple connectivity options, including Parallel, 10/100 Ethernet, and 802.11a/b/g/n wireless provide options to integrate into any environment. Icon-based status LEDs provide immediate and easily visible printer status to allow you supreme efficiency in your printing operations.
Zebra ZT23042-T0E200FZ Barcode Label Printer Overview

Zebra’s most affordable industrial printers, the ZT200â"¢ Series, incorporate extensive customer feedback and the learnings from legacy printersâ€"creating innovative printers with a space-saving design. Featuring Zebra’s Link-OS® environment, the ZT200 Series provides users with effortless setup, intuitive operation and easy service and maintenance. Whether you are adopting barcode technology for the first time or upgrading existing printer models, the ZT200 Series is the right choice for a variety of labeling applications. These innovative printers provide many user benefits, and they are ENERGY STAR® qualified to save you money throughout their lifecycle.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
5.98 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
13.08 ft
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • EAN With 2 or 5 Digit Extension
  • UPC 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • Codablock
  • PDF-417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF
  • RSS-14
  • Aztec Code
  • Micro PDF-417
Application/Usage:
Industrial
Features:
  • Clear Bi-fold Media Side Door
  • Element Energy Equalizer
  • Tear Bar
  • Icon-graphics
  • Rugged
Connectivity Technology:
Wired
Memory
Standard Memory:
128 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Network Ready:
Yes
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Black Mark
  • Continuous Label
  • Die-cut Label
  • Notch
  • Label
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Length:
4.50"
Fonts & Emulation
Language Emulation:
ZPL
Power Description
Power Source:
AC Supply
Environmental Conditions
Operating Temperature:
32°F (0°C) - 104°F (40°C)
Operating Relative Humidity:
20% - 85%
Storage Temperature:
-40°F (-40°C) - 140°F (60°C)
Storage Relative Humidity:
5% - 85%
Physical Characteristics
Height:
10.9"
Width:
9.5"
Depth:
17"
Weight (Approximate):
20 lb
Miscellaneous
Power Cable Localization:
  • EU
  • UK
Platform Supported:
PC
Energy Star:
Yes
Item Numbers
GTIN: 4054318563418, 5711045723087
EAN: 4054318563418, 5711045723087
UNSPSC: 43212108
