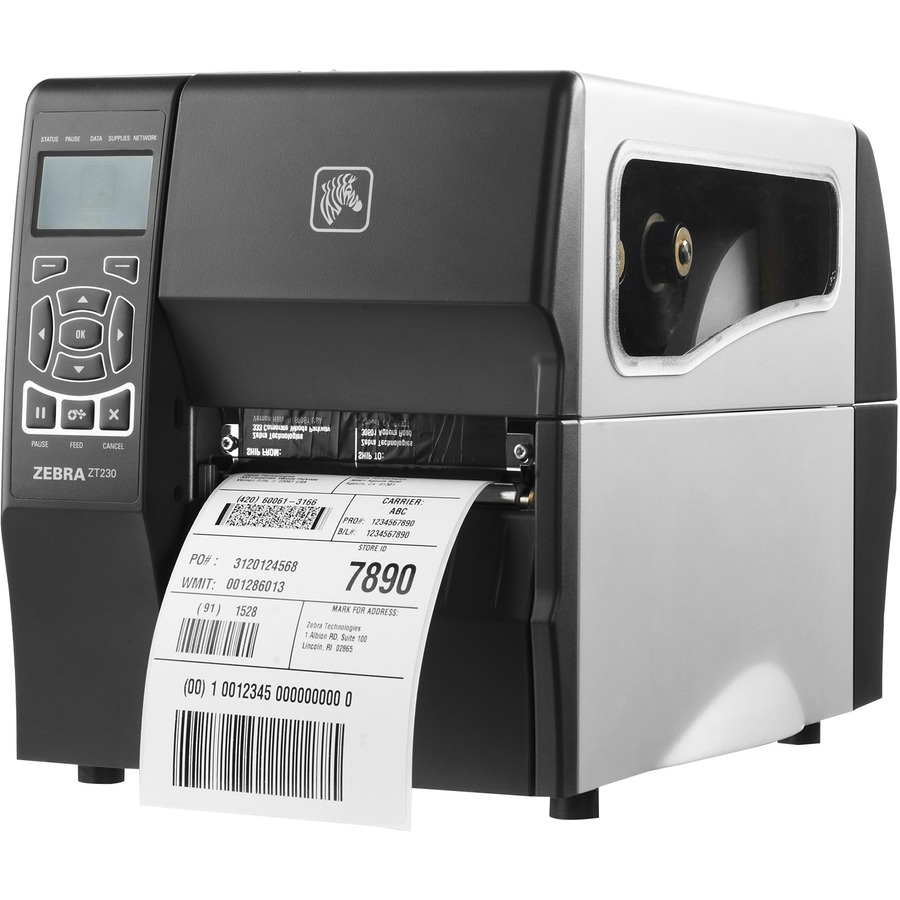

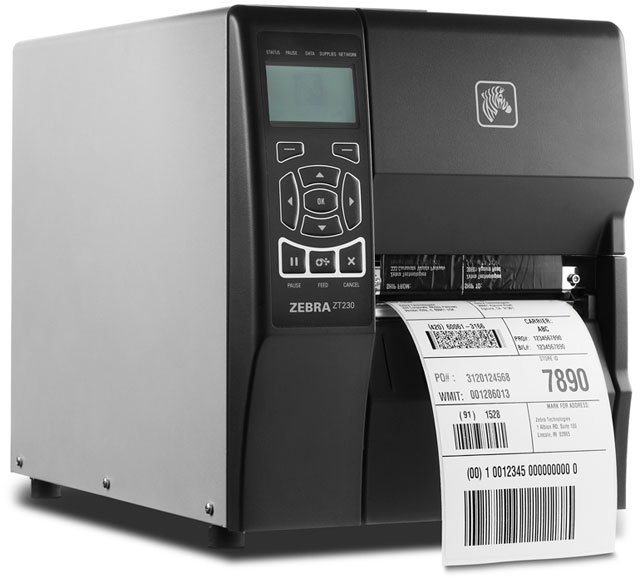

Zebra ZT23042-T0E000FZ Barcode Label Printer

Zebra ZT230 - Industrial Label Printer, Zebra ZT230, Thermal transfer, 203 dpi, 6 ips, Serial/USB, 4-inch Print width, EU/UK Power cords, Cables Sold Separately
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • Enjoy the optimal performance in today's on-demand labeling applications
  • Produce high-quality documents with this monochrome printer to increase your productivity
Read More

Full specifications (PDF)

Quality Construction and Performance
Zebra's ZT230 Industrial Printers are Zebra's rugged industrial printers that incorporate extensive customer feedback and the learnings from legacy printers-creating innovative printers with a space-saving design. Featuring Zebra's Link-OS environment, the ZT230 provides users with effortless setup, intuitive operation and easy service and maintenance. Whether you are adopting barcode technology for the first time or upgrading existing printer models, the ZT230 is the right choice for a variety of labeling applications. These innovative printers provide many user benefits, and they are ENERGY STAR qualified to save you money throughout their lifecycle. With its rugged all-metal case for long-lasting use, the ZT230 offers a graphical LCD user interface for easy printer setup and control, and S4M replacement that easily integrates into your environment. The ZT230 is ideal for barcode-labeling applications requiring more frequent format or printer setting changes.
Zebra ZT23042-T0E000FZ Overview

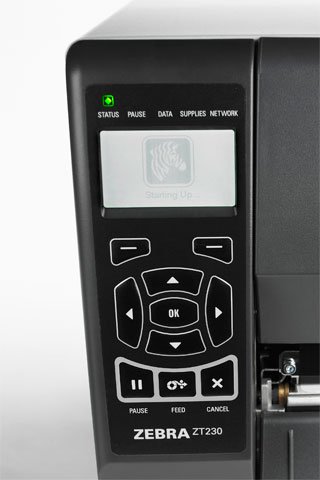

The durability of a metal frame and cover with an icon based LCD graphical user interface and larger ribbon capacity for long lasting use in demanding environments.

Loading...

Full specifications (PDF)

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
5.98 in/s
Maximum Print Resolution:
203 dpi
Maximum Print Length:
13.08 ft
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • EAN With 2 or 5 Digit Extension
  • UPC 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • Codablock
  • PDF-417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF
  • RSS-14
  • Aztec Code
  • Micro PDF-417
Application/Usage:
Industrial
Features:
  • Clear Bi-fold Media Side Door
  • Element Energy Equalizer
  • Tear Bar
  • Icon-graphics
  • Rugged
Memory
Standard Memory:
128 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Black Mark
  • Continuous Label
  • Die-cut Label
  • Notch
  • Label
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Length:
4.50"
Fonts & Emulation
Language Emulation:
ZPL
Power Description
Power Source:
AC Supply
Environmental Conditions
Operating Temperature (T-T):
32°F (0°C) - 104°F (40°C)
Storage Temperature (T-T):
-40°F (-40°C) - 140°F (60°C)
Operating Relative Humidity (H-H):
20% - 85%
Storage Relative Humidity (H-H):
5% - 85%
Physical Characteristics
Height:
10.9"
Width:
9.5"
Depth:
17"
Weight (Approximate):
20 lb
Miscellaneous
Power Cable Localization:
  • EU
  • UK
Platform Supported:
PC
Energy Star:
Yes
Item Numbers
GTIN: 5711045531057
EAN: 5711045531057
UNSPSC: 43212108

Loading...
Loading...
Loading...
Loading...

The Zebra ZT23042-T0E000FZ is also known as ZEB-ZT23042T0E000FZ or ZT23042T0E000FZ .
