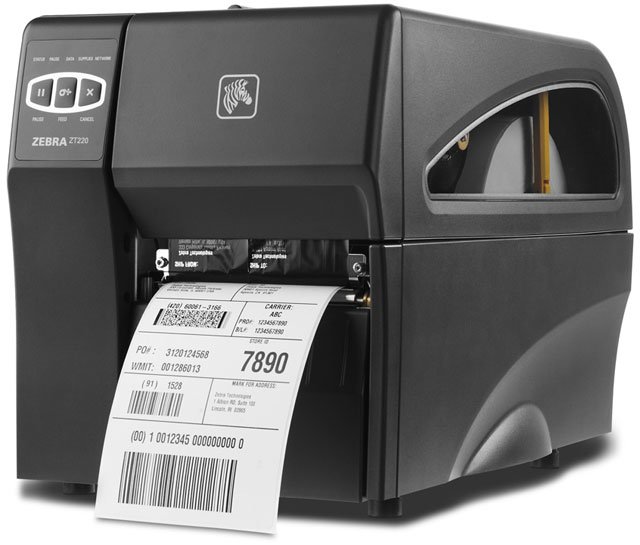

Zebra ZT220 – Barcode Label Printer – 300 dpi – Direct Thermal

Part Number: ZT22043-D01000FZ
Model: ZT220
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Direct Thermal
Interface Options
Serial (RS-232), USB
Print Resolution
300 dpi

Product Description:

  Industrial Label Printer, Zebra ZT220, Direct Thermal, 300 dpi, 6ips, Serial/USB, 4-inch Print Width, Includes US Power Cord with US Plug, Cables Sold Separately
Explore all Zebra ZT220 Barcode Label Printers
Add to Quote
Zebra ZT22043-D01000FZ Barcode Label Printer
Zebra ZT22043-D01000FZ Barcode Label Printer
Zebra ZT22043-D01000FZ Barcode Label Printer
Zebra ZT22043-D01000FZ Barcode Label Printer
Zebra ZT22043-D01000FZ Barcode Label Printer
Zebra ZT22043-D01000FZ Barcode Label Printer Zebra ZT22043-D01000FZ Barcode Label Printer Zebra ZT22043-D01000FZ Barcode Label Printer Zebra ZT22043-D01000FZ Barcode Label Printer

Full specifications (PDF)

Zebra ZT220 Barcode Label Printer Model Overview

Zebra's ZT220 Industrial Printers are Zebra's most affordable industrial printers that incorporate extensive customer feedback and the learnings from legacy printers—creating innovative printers with a space-saving design. Featuring Zebra's Link-OS environment, the ZT220 provides users with effortless setup, intuitive operation and easy service and maintenance. Whether you are adopting barcode technology for the first time or upgrading existing printer models, the ZT220 is the right choice for a variety of labeling applications. These innovative printers provide many user benefits, and they are ENERGY STAR qualified to save you money throughout their lifecycle. The ZT220 has a durable high-impact polymer case for long-lasting use, and a simple single-use three-button user interface. The ZT220 is ideal for barcode-labeling applications where minimal formal or printer setting changes are required.
Zebra ZT22043-D01000FZ Barcode Label Printer Overview

Zebra incorporated extensive customer feedback, as well as the legacy of our industry leading Stripe and S4M printers, to create the new ZT200 Series family of printers with elegant space saving design, effortless setup, intuitive user operation, and ease of service and maintenance.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • UPC-A
  • UPC-E
  • EAN-13
  • EAN-8
  • EAN With 2 or 5 Digit Extension
  • UPC 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • Codablock
  • PDF-417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF
  • RSS-14
  • Aztec Code
  • Micro PDF-417
Application/Usage:
Industrial
Features:
  • Tear-off
  • Element Energy Equalizer
  • Clear Bi-fold Media Side Door
  • Bi-color LED
Print Technology:
Direct Thermal
Memory
Standard Memory:
128 MB
Memory Technology:
DRAM
Flash Memory:
128 MB
Interfaces/Ports
Parallel Port:
No
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Continuous Label
  • Die-cut Label
  • Notch
  • Black Mark
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
39"
Label Core Size:
3"
Fonts & Emulation
Language Emulation:
ZPL
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
11"
Width:
9.4"
Depth:
17"
Weight (Approximate):
17 lb
Miscellaneous
Package Contents:
  • ZT220 Industrial Printer
  • Power Cord with US Plug
Platform Supported:
PC
Certifications & Standards:
  • IEC 60950
  • EN 55022 Class B
  • EN55024
  • EN 61000-3-2
  • EN 61000-3-3
  • UL
  • CE Marking
  • FCC-B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • IRAM
  • CCC
  • GOST-R
Energy Star:
Yes
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0783555109502, 0880959395569
UPC: 783555109502, 880959395569
EAN: 0783555109502, 0880959395569
UNSPSC: 45101512
