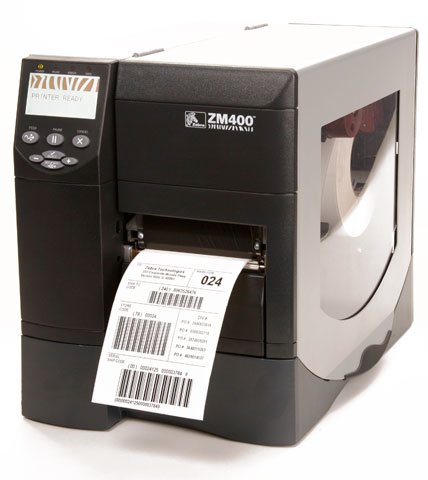

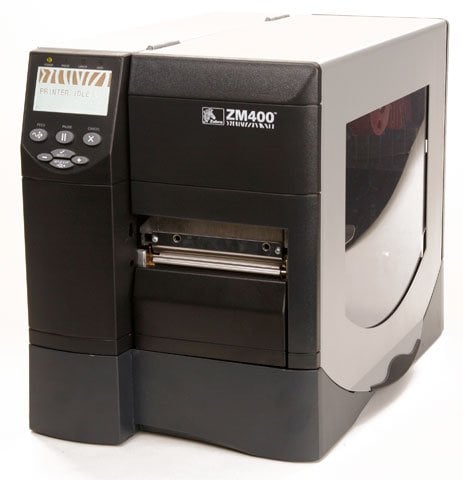

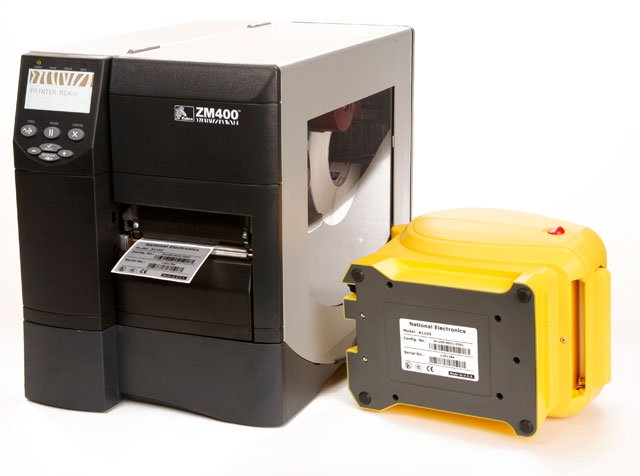

Zebra ZM400-6001-5100T Barcode Label Printer

A newer version of this item is available.
It is replaced by the Zebra ZT41042-T410000Z Barcode Label Printer.

Zebra ZM400 - Thermal Transfer printing, 600 dpi, 4" print width, USB, Parallel, Serial, and Ethernet Interfaces, Peeler with Full Roll Rewinder. Includes US Power cord. Cables sold separately.

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Ethernet, Parallel, Serial (RS-232), USB

Print Resolution

609 dpi

Printer Options

Peeler, Rewinder

Max Print Width

4.5 inch

Ribbon Core Size

1 inch

Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
600 maximum print resolution (dpi) offers great dependability with added efficiency
Produce high-quality documents with this monochrome printer to increase your productivity
Delivers high-speed, hassle-free labeling solution for your business needs
Save time and money for your business by using one printer for all your employees
4.25" maximum label width for dependable, desired results
39" maximum label length to easily accommodate your needs with added productivity
Supports continuous form media type for dependable, efficient results with maximum productivity
Comes with 16 MB standard memory to ensure maximum efficiency with great quality printing results

Need a different version? See all Zebra ZM400 Barcode Label Printers

Discontinued See Replacement

Add to Quote

Zebra ZM400-6001-5100T Barcode Label Printer

Overview

Full specifications (PDF)

Zebra ZM400 Barcode Label Printer Model Overview

Zebra's best-in-class Z Series printers just got better! The Zebra ZM400 includes additional productivity-enhancing features and modern, flexible network connectivity for easy system integration in most manufacturing, warehousing and business applications. This industrial/commercial workhorse also delivers efficient 4-inch-wide labeling thanks to its quick throughput and 10 inches-per-second print speed. Built RFID Ready and offering a multitude of options including 600-dpi (24 dots/mm) resolution, the ZM400 is upgradeable to grow with changing needs. Plus, design enhancements make this new-generation Z Series printer even easier to operate, load, and maintain.

Zebra ZM400-6001-5100T Barcode Label Printer Overview

The ZM400 includes additional productivity-enhancing features and modern, flexible network connectivity for easy system integration in most manufacturing, warehousing and business applications. This industrial/commercial workhorse also delivers efficient 4-inch-wide labeling thanks to its quick throughput the ZM400 is upgradeable to grow with changing needs.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

4 in/s

Maximum Print Resolution (dpi):

600

Maximum Print Width:

4.09"

Barcode Symbology Supported:

Codabar
Code 11
Code 128-A
Code 128-B
Code 128-C
UCC Case Codes
Code 39
Code 93
EAN-13
EAN-8
Industrial 2 of 5
Interleaved 2 of 5
LOGMARS
MSI
Planet Code
Plessey
POSTNET
Standard 2 of 5
UPC 2 or 5 Digit Extension
EAN With 2 or 5 Digit Extension
UPC-A
UPC-E
Aztec Code
Codablock
Code 49
Data Matrix
Maxi Code
QR Code
PDF-417
Micro PDF-417
RSS

Peel Facility:

Yes

Rewinder:

Yes

Memory

Standard Memory:

16 MB

Memory Technology:

DRAM

Flash Memory:

8 MB

Interfaces/Ports

Parallel Port:

Yes

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Media Types & Handling

Media Type:

Continuous Form
Die-cut Label
Tag Stock
Black Mark
Fanfold
Notched
Perforated Label

Media Sensor:

Reflective Media Sensor
Transmissive Media Sensor

Media Thickness:

10 mil

Maximum Roll Diameter:

Maximum Label Width:

4.25"

Maximum Label Length:

39"

Label Core Size:

Ribbon Core Size:

Fonts & Emulation

Language Emulation:

ZPL II
XML

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

13.3"

Width:

10.9"

Depth:

18.7"

Miscellaneous

Package Contents:

ZM400 Network Thermal Label Printer
Power Cord with US plug
Driver and Software CD
Safety Guide

Cables Included:

Additional Information:

RFID Ready
Auto-calibration
Real Time Clock
32-bit processor
Unicode - Compliant
Color-coded operator cues
Quick change printhead and platen
Standard Ribbon coated-out spindle
Multi-lingual backlit 240x128 pixel graphic display
Element Energy Equalizer (E3) (for print head energy control)
7 bitmapped and 1 scalable font (CG Triumvarate Bold Condensed)

Platform Supported:

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43212108

Q&A

Questions? Get help from a
Printer Expert!

The Zebra ZM400-6001-5100T Barcode Label Printer is also known as ZEB-ZM40060015100T or ZM40060015100T.
