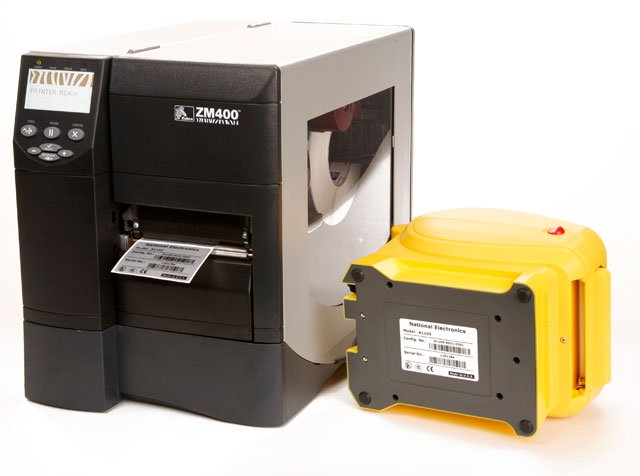

Zebra ZM400-6001-1100T Barcode Label Printer

Zebra ZT41046-T010000Z Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZT41046-T010000Z Barcode Label Printer.
Zebra ZM400 - Thermal Transfer printing, 600 dpi, 4" print width, USB, Parallel, Serial, and Ethernet Interfaces, Cutter. Includes US Power cord. Cables sold separately.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Parallel, Serial (RS-232), USB
Print Resolution
609 dpi
Max Print Width
4.5 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • 600 maximum print resolution (dpi) offers great dependability with added efficiency
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Label Print gives dependable results with maximum productivity
  • Save time and money for your business by using one printer for all your employees
  • 4.25" maximum label width to easily accommodate your needs with added productivity
  • 39" maximum label length for your convenience and feasible usability
  • Supports continuous form media type for maximum feasibility and better accommodation of your requirements
  • Comes with 16 MB standard memory for timely printing with added reliability
Read More

Need a different version? See all Zebra ZM400 Barcode Label Printers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Zebra ZM400-6001-1100T Barcode Label Printer
Zebra ZM400-6001-1100T Barcode Label Printer Zebra ZM400-6001-1100T Barcode Label Printer Zebra ZM400-6001-1100T Barcode Label Printer Zebra ZM400-6001-1100T Barcode Label Printer Zebra ZM400-6001-1100T Barcode Label Printer
Zebra ZM400-6001-1100T Barcode Label Printer
Zebra ZM400-6001-1100T Barcode Label Printer
Zebra ZM400-6001-1100T Barcode Label Printer
Zebra ZM400-6001-1100T Barcode Label Printer

Full specifications (PDF)
Zebra ZM400 Barcode Label Printer Model Overview
Zebra's best-in-class Z Series printers just got better! The Zebra ZM400 includes additional productivity-enhancing features and modern, flexible network connectivity for easy system integration in most manufacturing, warehousing and business applications. This industrial/commercial workhorse also delivers efficient 4-inch-wide labeling thanks to its quick throughput and 10 inches-per-second print speed. Built RFID Ready and offering a multitude of options including 600-dpi (24 dots/mm) resolution, the ZM400 is upgradeable to grow with changing needs. Plus, design enhancements make this new-generation Z Series printer even easier to operate, load, and maintain.
Zebra ZM400-6001-1100T Barcode Label Printer Overview

The ZM400 includes additional productivity-enhancing features and modern, flexible network connectivity for easy system integration in most manufacturing, warehousing and business applications. This industrial/commercial workhorse also delivers efficient 4-inch-wide labeling thanks to its quick throughput the ZM400 is upgradeable to grow with changing needs.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
600
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Aztec Code
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • PDF-417
  • Micro PDF-417
  • RSS
Memory
Standard Memory:
16 MB
Memory Technology:
DRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Tag Stock
  • Black Mark
  • Fanfold
  • Notched
  • Perforated Label
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • XML
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13.3"
Width:
10.9"
Depth:
18.7"
Miscellaneous
Package Contents:
  • ZM400 Network Thermal Label Printer
  • Power Cord with US plug
  • Driver and Software CD
  • Safety Guide
  • Catch Tray
Cables Included:
AC
Additional Information:
  • RFID Ready
  • Auto-calibration
  • Real Time Clock
  • 32-bit processor
  • Unicode - Compliant
  • Color-coded operator cues
  • Quick change printhead and platen
  • Standard Ribbon coated-out spindle
  • Multi-lingual backlit 240x128 pixel graphic display
  • Element Energy Equalizer (E3) (for print head energy control)
  • 7 bitmapped and 1 scalable font (CG Triumvarate Bold Condensed)
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra ZM400-6001-1100T Barcode Label Printer is also known as ZEB-ZM40060011100T or ZM40060011100T.
