You've just added this product to the cart:

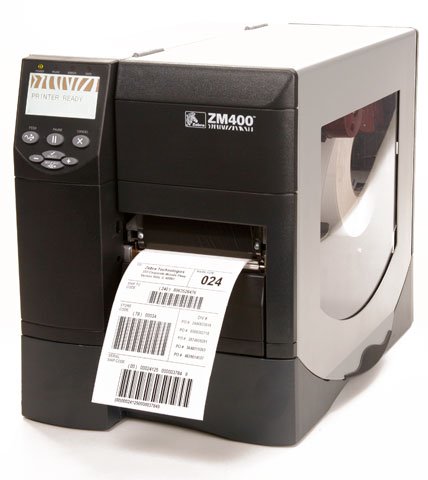

Zebra ZM400-6001-0100T Barcode Label Printer

Zebra ZM400 - Thermal transfer printing, 600 dpi, 4" print width, USB, Parallel, Serial, and Ethernet Interfaces. Includes US Power cord. Cables sold separately.
Large LCD for quick printer configuration

Zebra's best-in-class Z Series printers just got better! The Zebra ZM400 includes additional productivity-enhancing features and modern, flexible network connectivity for easy system integration in most manufacturing, warehousing and business applications. This industrial/commercial workhorse also delivers efficient 4-inch-wide labeling thanks to its quick throughput and 10 inches-per-second print speed. Built RFID Ready and offering a multitude of options including 600 dpi (24 dots/mm) resolution, the ZM400 is upgradeable to grow with changing needs. Plus, design enhancements make this new-generation Z Series printer even easier to operate, load, and maintain.

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 600 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • Code 39
    • Code 93
    • EAN-13
    • EAN-8
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Planet Code
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • Aztec Code
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • PDF-417
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Z Series
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: ZM400
  • Product Name: ZM400 Network Thermal Label Printer

Physical Characteristics

  • Height: 13.3"
  • Width: 10.9"
  • Depth: 18.7"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • ZM400 Network Thermal Label Printer
    • Power Cord with US plug
    • Driver and Software CD
    • Safety Guide
    • ZM400 Network Thermal Label Printer
    • Power Cord with US plug
    • Driver and Software CD
    • Safety Guide
  • Additional Information:
    • RFID Ready
    • Auto-calibration
    • Real Time Clock
    • 32-bit processor
    • Unicode - Compliant
    • Color-coded operator cues
    • Quick change printhead and platen
    • Standard Ribbon coated-out spindle
    • Multi-lingual backlit 240x128 pixel graphic display
    • Element Energy Equalizer (E3) (for print head energy control)
    • 7 bitmapped and 1 scalable font (CG Triumvarate Bold Condensed)

Media Types & Handling

  • Maximum Label Width: 4.25"
  • Maximum Label Length: 39"
  • Media Type:
    • Continuous Form
    • Die-cut Label
    • Tag Stock
    • Black Mark
    • Fanfold
    • Notched
    • Perforated Label
  • Media Thickness: 10 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: DRAM
  • Flash Memory: 8 MB

Fonts & Emulation

  • Language Emulation:
    • ZPL II
    • XML

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model ZM400
Maximum Print Width 4.09
Max Label Width 4.50
Interface Options USB, Parallel, Serial, Ethernet
Printer Type Industrial
Print Speed 4
Max Roll Outer Diameter 8
Print Method Thermal Transfer
Label Core 3 inches
Print Resolution 609 dpi
Printer Mobility Not Mobile
Ribbon Core 1
