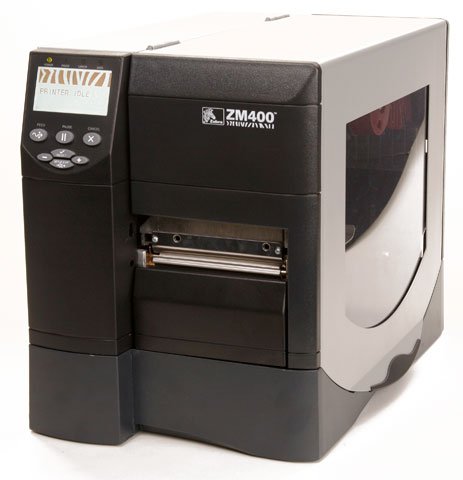

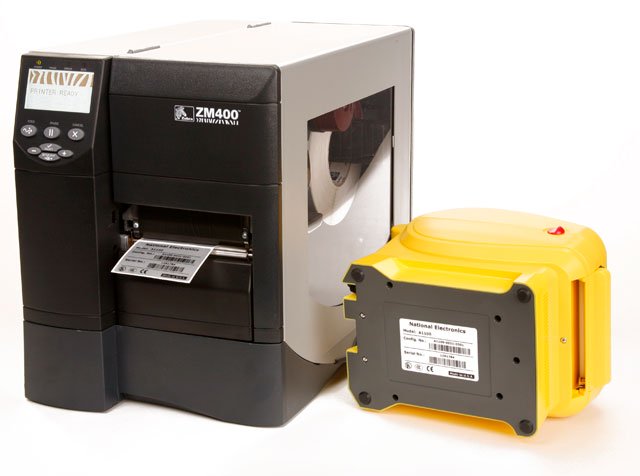

Zebra ZM400-3004-5000T Barcode Label Printer

The Zebra ZM400-3004-5000T Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Zebra ZM400 - 300DPI,EURO/UK,PELL W/REWIND,RS-232 serial, parallel and USB

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Parallel, Serial (RS-232), USB

Print Resolution

300 dpi, 305 dpi

Ribbon Core Size

1 inch

Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
300 maximum print resolution (dpi) for your convenience and easy usage
The printer is capable of printing sharp and detailed monochrome documents quickly
Delivers high-speed, hassle-free labeling solution for your business needs
4.25" maximum label width to easily accommodate your needs with added productivity
39" maximum label length for your convenience and feasible usability
Supports continuous form media type for dependable, efficient results with maximum productivity
Comes with 16 MB standard memory to make you productive with the direct thermal/thermal transfer printer?s smooth performance

Need a different version? See all Zebra ZM400 Barcode Label Printers

Discontinued Need Assistance?

Add to Quote

Zebra ZM400-3004-5000T Barcode Label Printer

Overview

Full specifications (PDF)

Zebra ZM400 Barcode Label Printer Model Overview

Zebra's best-in-class Z Series printers just got better! The Zebra ZM400 includes additional productivity-enhancing features and modern, flexible network connectivity for easy system integration in most manufacturing, warehousing and business applications. This industrial/commercial workhorse also delivers efficient 4-inch-wide labeling thanks to its quick throughput and 10 inches-per-second print speed. Built RFID Ready and offering a multitude of options including 600-dpi (24 dots/mm) resolution, the ZM400 is upgradeable to grow with changing needs. Plus, design enhancements make this new-generation Z Series printer even easier to operate, load, and maintain.

Zebra ZM400-3004-5000T Barcode Label Printer Overview

The ZM400 includes additional productivity-enhancing features and modern, flexible network connectivity for easy system integration in most manufacturing, warehousing and business applications. This industrial/commercial workhorse also delivers efficient 4-inch-wide labeling thanks to its quick throughput the ZM400 is upgradeable to grow with changing needs.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

8 in/s

Maximum Print Resolution (dpi):

300

Maximum Print Width:

4.09"

Barcode Symbology Supported:

Codabar
Code 11
Code 128-A
Code 128-B
Code 128-C
UCC Case Codes
Code 39
Code 93
EAN-13
EAN-8
Industrial 2 of 5
Interleaved 2 of 5
LOGMARS
MSI
Planet Code
Plessey
POSTNET

Peel Facility:

Yes

Rewinder:

Yes

Memory

Standard Memory:

16 MB

Memory Technology:

DRAM

Flash Memory:

8 MB

Interfaces/Ports

Parallel Port:

Yes

Serial Port:

Yes

USB:

Yes

Media Types & Handling

Media Type:

Continuous Form
Die-cut Label
Tag Stock
Black Mark
Fanfold
Notched
Perforated Label

Media Sensor:

Reflective Media Sensor
Transmissive Media Sensor

Media Thickness:

10 mil

Maximum Roll Diameter:

Maximum Label Width:

4.25"

Maximum Label Length:

39"

Label Core Size:

Ribbon Core Size:

Fonts & Emulation

Language Emulation:

ZPL II
XML

Power Description

Input Voltage:

220 V AC

Physical Characteristics

Height:

13.3"

Width:

10.9"

Depth:

18.7"

Miscellaneous

Package Contents:

ZM400 Thermal Label Printer
Power Cord with European and UK plug
Driver and Software CD
Safety Guide

Cables Included:

Additional Information:

RFID Ready
Auto-calibration
Real Time Clock
32-bit processor
Unicode - Compliant
Color-coded operator cues
Quick change printhead and platen
Standard Ribbon coated-out spindle
Multi-lingual backlit 240x128 pixel graphic display
Element Energy Equalizer (E3) (for print head energy control)
7 bitmapped and 1 scalable font (CG Triumvarate Bold Condensed)

Platform Supported:

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43212108

Q&A

Questions? Get help from a
Printer Expert!

The Zebra ZM400-3004-5000T Barcode Label Printer is also known as ZEB-ZM40030045000T
