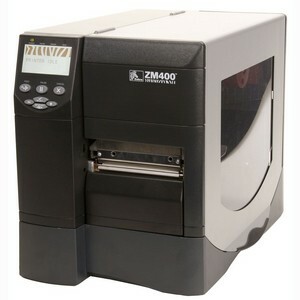

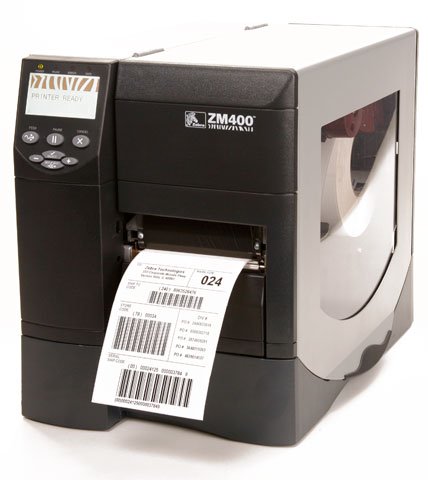

Zebra ZM400-3001-0200T Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Zebra ZM400 - Thermal transfer printing, 300 dpi, 4" print width, USB, Parallel, Serial, and Wi-Fi (Radio Card NOT Included (Part# AIR-CB21AG-A-K9)) Interfaces. Includes US Power cord. Cables sold separately.
Large LCD for quick printer configuration

Zebra's best-in-class Z Series printers just got better! The Zebra ZM400 includes additional productivity-enhancing features and modern, flexible network connectivity for easy system integration in most manufacturing, warehousing and business applications. This industrial/commercial workhorse also delivers efficient 4-inch-wide labeling thanks to its quick throughput and 10 inches-per-second print speed. Built RFID Ready and offering a multitude of options including 600 dpi (24 dots/mm) resolution, the ZM400 is upgradeable to grow with changing needs. Plus, design enhancements make this new-generation Z Series printer even easier to operate, load, and maintain.

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 128-A
    • Code 128-B
    • Code 128 UCC
    • Code 39
    • Code 93
    • EAN-13
    • EAN-8
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • UCC
    • Case Code
    • UPC-A
    • UPC-E
    • UPC
    • EAN With 2 and 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Planet Code
    • Code 128-C
    • RSS
    • Aztec Code
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code Mode 1
    • QR Code
    • PDF-417
    • Micro PDF-417
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Z Series
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: ZM400
  • Product Name: ZM400 Network Thermal Label Printer

Physical Characteristics

  • Height: 13.3"
  • Width: 10.9"
  • Depth: 18.7"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • ZM400 Label Printer
    • Safety Guide
    • User's CD
    • Power Cord with US plug
    • ZM400 Label Printer
    • Safety Guide
    • User's CD
    • Power Cord with US plug
  • Additional Information:
    • RF ID Ready
    • Real Time Clock
    • Unicode - Compliant
    • Standard Ribbon coated-out spindle
    • Quick change print head and platen
    • Metal media cover with large clear window
    • Multi-lingual back lit 240x128 pixel graphic display
    • Die-cast aluminum base, frame, and print head mechanism
    • 7 bit mapped and 1 scalable font (CG Triumvirate Bold Condensed)

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Maximum Label Length: 39"
  • Media Type:
    • Black Mark
    • Continuous Form
    • Die-cut Label
    • Fanfold
    • Notched
    • Perforated Label
    • Tag Stock
  • Media Thickness: 2.30 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: DRAM
  • Flash Memory: 8 MB

Fonts & Emulation

  • Language Emulation:
    • ZPL II
    • XML

Network & Communication

  • Wireless LAN: Yes

Warranty

  • Limited Warranty: 1 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model ZM400
Print Method Thermal Transfer
Maximum Print Width 4.09
Max Label Width 4.50
Interface Options Wireless, Serial, Parallel, USB
Print Speed 8
Max Roll Outer Diameter 8
Print Resolution 305 dpi
Printer Type Industrial
Label Core 3 inches
Printer Mobility Not Mobile
Ribbon Core 1
