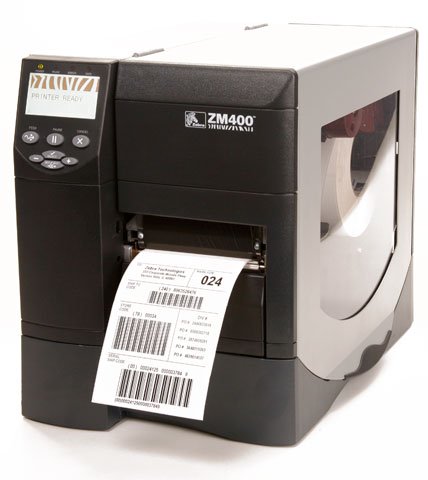

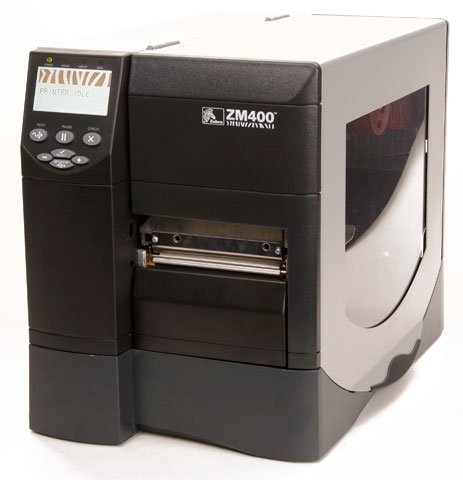

Zebra ZM400-2101-0100T Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Zebra ZM400 - Thermal transfer printing, 203 dpi, 4" print width, USB, Parallel, Serial, Ethernet Interfaces, Eltron Programming Language (EPL). Includes US Power cord. Cables sold separately.
Large LCD for quick printer configuration

Zebra's best-in-class Z Series printers just got better! The Zebra ZM400 includes additional productivity-enhancing features and modern, flexible network connectivity for easy system integration in most manufacturing, warehousing and business applications. This industrial/commercial workhorse also delivers efficient 4-inch-wide labeling thanks to its quick throughput and 10 inches-per-second print speed. Built RFID Ready and offering a multitude of options including 600 dpi (24 dots/mm) resolution, the ZM400 is upgradeable to grow with changing needs. Plus, design enhancements make this new-generation Z Series printer even easier to operate, load, and maintain.

Technical Information

  • Maximum Mono Print Speed: 10 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • Code 39
    • Code 93
    • EAN-13
    • EAN-8
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Planet Code
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • Aztec Code
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • PDF-417
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Z Series
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: ZM400
  • Product Name: ZM400 Network Thermal Label Printer

Physical Characteristics

  • Height: 13.3"
  • Width: 10.9"
  • Depth: 18.7"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • ZM400 Network Thermal Label Printer
    • Power Cord with US plug
    • Driver and Software CD
    • Safety Guide
    • ZM400 Network Thermal Label Printer
    • Power Cord with US plug
    • Driver and Software CD
    • Safety Guide
  • Additional Information:
    • RFID Ready
    • Auto-calibration
    • Real Time Clock
    • 32-bit processor
    • Unicode - Compliant
    • Color-coded operator cues
    • Quick change printhead and platen
    • Standard Ribbon coated-out spindle
    • Multi-lingual backlit 240x128 pixel graphic display
    • Element Energy Equalizer (E3) (for print head energy control)
    • 7 bitmapped and 1 scalable font (CG Triumvarate Bold Condensed)

Media Types & Handling

  • Maximum Label Width: 4.25"
  • Maximum Label Length: 39"
  • Media Type:
    • Continuous Form
    • Die-cut Label
    • Tag Stock
    • Black Mark
    • Fanfold
    • Notched
    • Perforated Label
  • Media Thickness: 10 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: DRAM
  • Flash Memory: 8 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Fonts & Emulation

  • Language Emulation: EPL

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model ZM400
Max Roll Outer Diameter 8
Maximum Print Width 4.09
Max Label Width 4.50
Print Method Thermal Transfer
Print Resolution 203 dpi
Interface Options Serial, Parallel, Ethernet, USB
Printer Type Industrial
Print Speed 10
Label Core 3 inches
Printer Mobility Not Mobile
Ribbon Core 1
