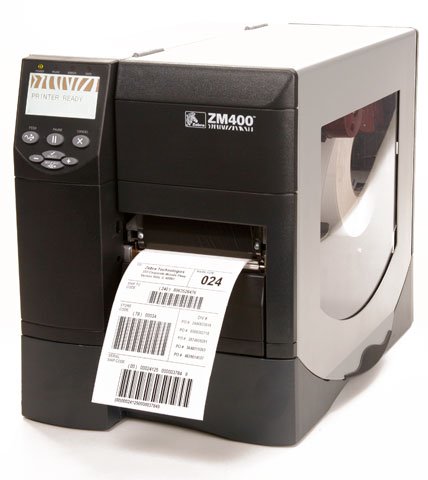

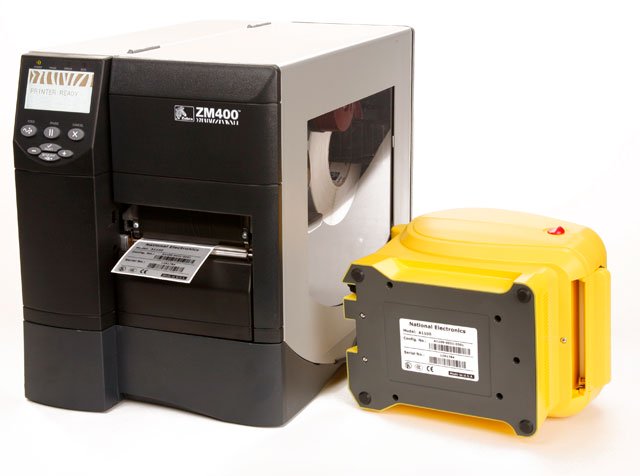

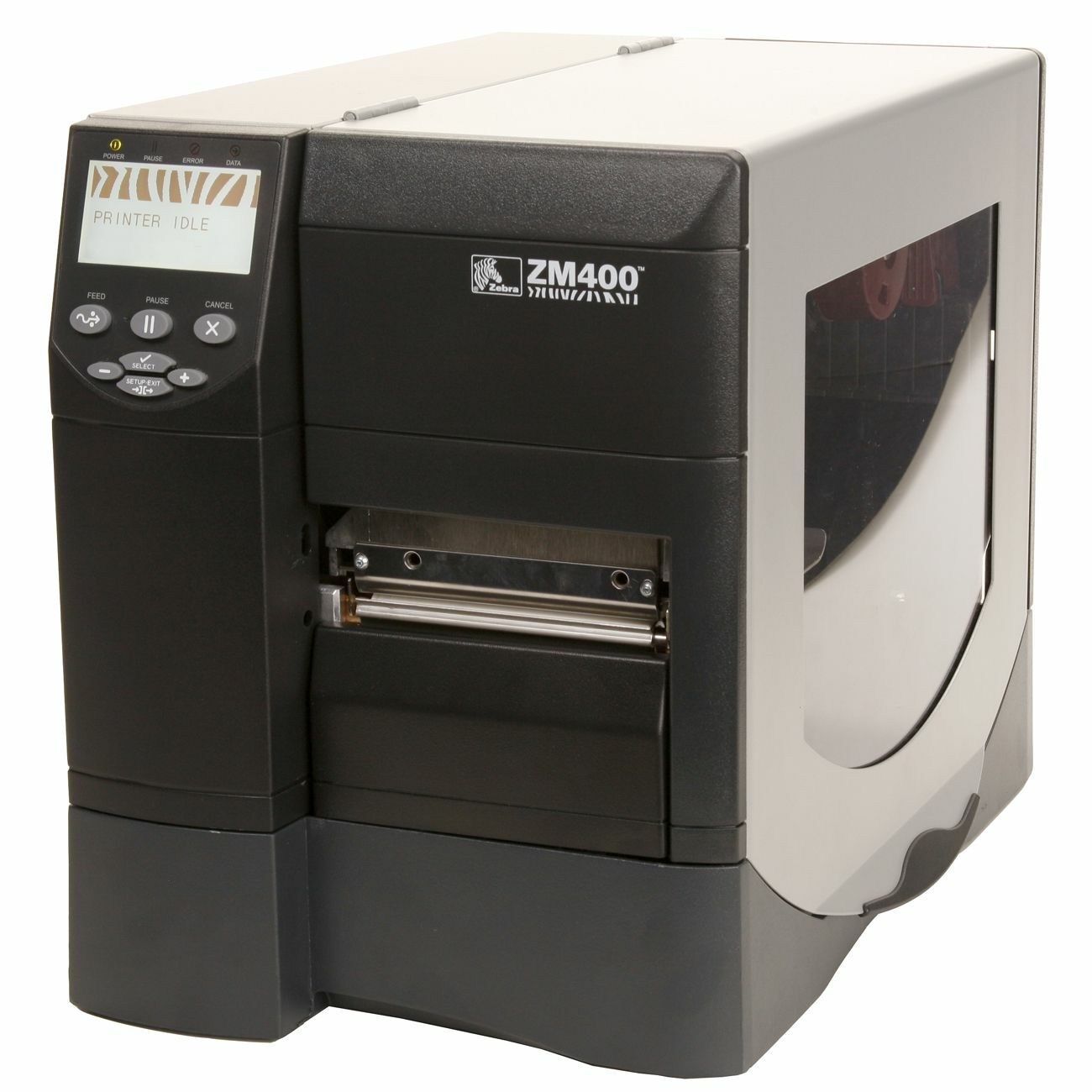

Zebra ZM400-2001-4000T Barcode Label Printer

A newer version of this item is available.
It is replaced by the Zebra ZT41042-T310000Z Barcode Label Printer.

Zebra ZM400 - Thermal Transfer printing, 203 dpi, 4" print width, USB, Parallel, and Serial Interfaces, Peeler with Liner Take-Up. Includes US Power cord. Cables sold separately.

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Parallel, Serial (RS-232), USB

Print Resolution

203 dpi

Printer Options

Peeler

Max Print Width

4.5 inch

Ribbon Core Size

1 inch

Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
203 maximum print resolution (dpi) for better reliance and added usability
Enjoy the optimal performance in today's on-demand labeling applications
4.25" maximum label width to easily accommodate your needs with added productivity
39" maximum label length for dependable, desired results
Supports continuous form media type for dependable, efficient results with maximum productivity
Comes with 16 MB standard memory for timely printing with added reliability

Need a different version? See all Zebra ZM400 Barcode Label Printers

Discontinued See Replacement

Add to Quote

Zebra ZM400-2001-4000T Barcode Label Printer

Overview

Full specifications (PDF)

Zebra ZM400 Barcode Label Printer Model Overview

Zebra's best-in-class Z Series printers just got better! The Zebra ZM400 includes additional productivity-enhancing features and modern, flexible network connectivity for easy system integration in most manufacturing, warehousing and business applications. This industrial/commercial workhorse also delivers efficient 4-inch-wide labeling thanks to its quick throughput and 10 inches-per-second print speed. Built RFID Ready and offering a multitude of options including 600-dpi (24 dots/mm) resolution, the ZM400 is upgradeable to grow with changing needs. Plus, design enhancements make this new-generation Z Series printer even easier to operate, load, and maintain.

Zebra ZM400-2001-4000T Barcode Label Printer Overview

The ZM400 includes additional productivity-enhancing features and modern, flexible network connectivity for easy system integration in most manufacturing, warehousing and business applications. This industrial/commercial workhorse also delivers efficient 4-inch-wide labeling thanks to its quick throughput the ZM400 is upgradeable to grow with changing needs.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Maximum Mono Print Speed:

10 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.09"

Barcode Symbology Supported:

Codabar
Code 11
Code 128-A
Code 128-B
Code 128-C
UCC Case Codes
Code 39
Code 93
EAN-13
EAN-8
Industrial 2 of 5
Interleaved 2 of 5
LOGMARS
MSI
Planet Code
Plessey
POSTNET
RSS
Standard 2 of 5
UPC 2 or 5 Digit Extension
EAN With 2 or 5 Digit Extension
UPC-A
UPC-E
Aztec Code
Codablock
Code 49
Data Matrix
Maxi Code
QR Code
PDF-417
Macro PDF-417

Peel Facility:

Yes

Rewinder:

Yes

Memory

Standard Memory:

16 MB

Memory Technology:

DRAM

Flash Memory:

8 MB

Media Types & Handling

Media Type:

Continuous Form
Die-cut Label
Tag Stock
Black Mark
Fanfold
Notched
Perforated Label

Maximum Roll Diameter:

Maximum Label Width:

4.25"

Maximum Label Length:

39"

Label Core Size:

Ribbon Core Size:

Fonts & Emulation

Language Emulation:

ZPL

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

13.3"

Width:

10.9"

Depth:

18.7"

Miscellaneous

Package Contents:

ZM400 Label Printer
Safety Guide
User's Cd
Power Cord with US plug

Cables Included:

Additional Information:

RFID Ready
Real Time Clock
Unicode Compliant
Ribbon coated-out spindle
Power Cords: Power Cord with US plug
Transmissive and reflective media sensors

Platform Supported:

Certifications & Standards:

IEC 60950-1 EN 55022 Class B
EN 55024
EN 61000-3-2
EN 61000-3-3
cTUVus
CE
FCC-B
ICES-003
VCCI
C-Tick
NOM
CCC
GOST-R
BSMI
S-Mark
SABS
MIC
ZIK

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0777786348939, 0853585466224

UPC: 777786348939, 853585466224

EAN: 0777786348939, 0853585466224

UNSPSC: 43212108
