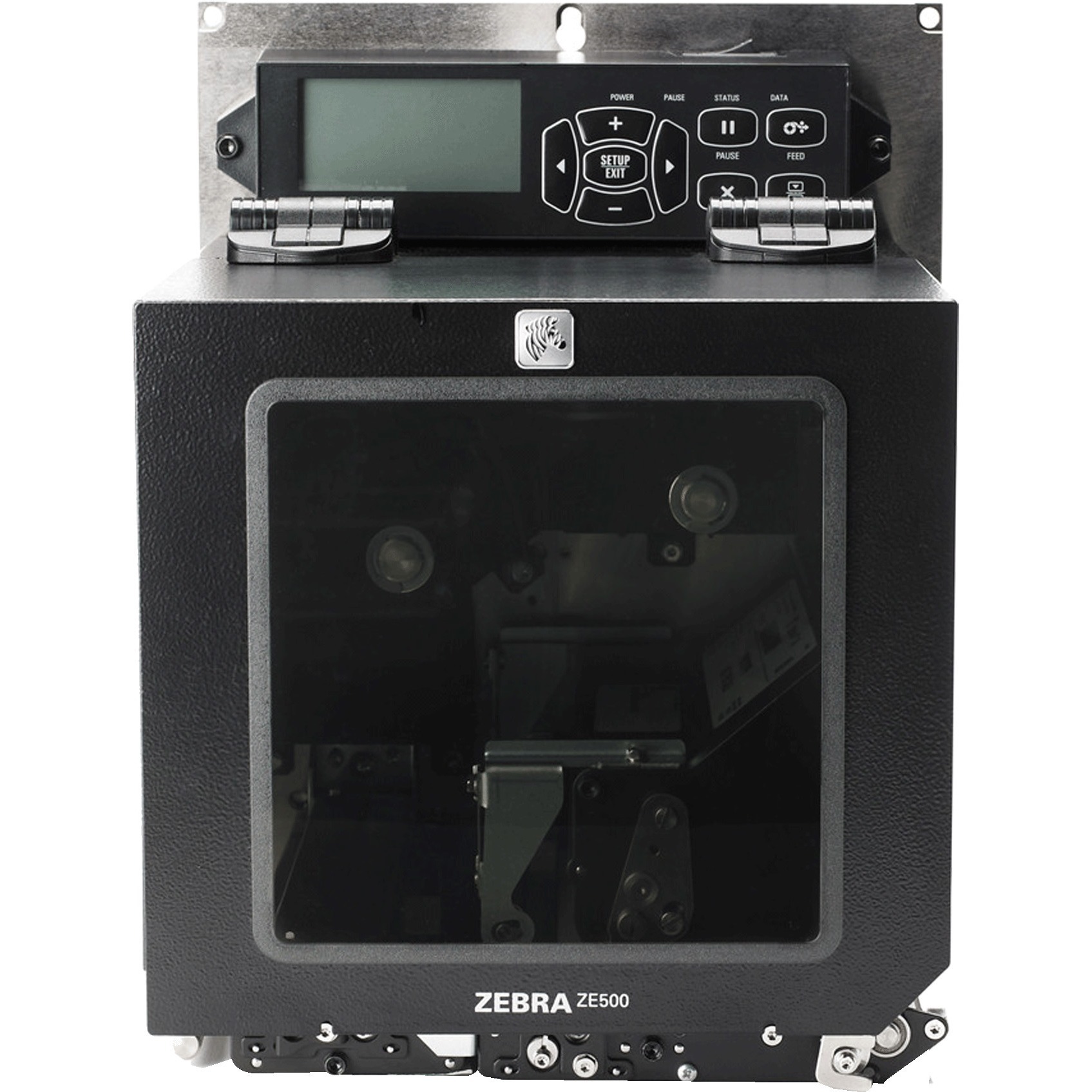

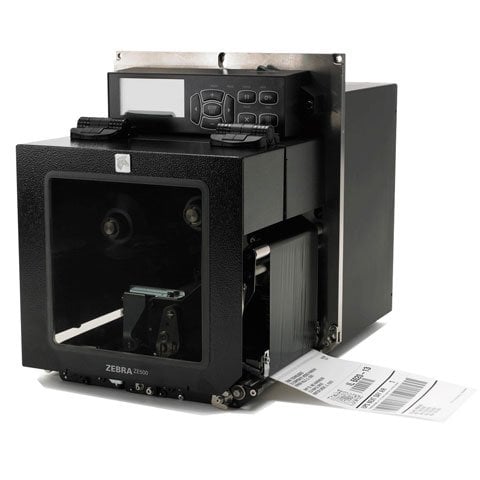

Zebra ZE50043-L010R00Z Print Engine

Zebra ZE51143-L0100A0Z Print Engine A newer version of this item is available.
It is replaced by the Zebra ZE51143-L0100A0Z Print Engine.
Zebra ZE500R - Left Hand Print Engine, Zebra ZE500R, 4-Inch, 300 dpi, RS-232 Serial/Parallel/USB, Int 10/100, RFID, US Cord, US/Canada
  • A better-quality solution to print permanent-use documents
  • 300 maximum print resolution (dpi) for your convenience and easy usage
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Designed for today's dynamic enterprise applications
  • Save time and money for your business by using one printer for all your employees
  • 4.49" maximum label width for your convenience and feasible usability
  • 39" maximum label length for your convenience and feasible usability
  • Supports black mark media type for maximum feasibility and better accommodation of your requirements
  • Thermal Transfer Printer with desktop application/usage provides dependable printing solution with added productivity
  • Element Energy Equalizer feature for better reliance and usability
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Zebra ZE500 Print Engine Model Overview
Zebra's ZE500 Series Print Engines are innovatively engineered for ease of use and servicing. The ZE500 is designed to keep your mission-critical print-and-apply applications operating without interruptions. The ZE500 Series can endure harsh environments and are easy to integrate, operate and maintain. The large, graphical display with simple five-button menu can be rotated or remotely located up to two meters with an optional kit, so it is easily accessible even for unusual mounting orientations. Maximize print and image quality with the easy-to-use outboard cam system that adjusts the printhead to the platen roller on all three different axes, no matter what media is in use. Engineered without the need for cooling fans, the ZE500 Series' external cabinet is impervious to prevent debris and water from entering the print engine.
Zebra ZE50043-L010R00Z Print Engine Overview
The ZE500 series takes an innovative approach to OEM print engines. Leveraging customer research, the design focuses on ease of use, integration and servicing. Built with the customer in mind, the ZE500 is designed to keep mission-critical print-and-apply applications operating with no interruptions.
Technical Information
Recommended Use:
RFID Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • UPC-E
  • UPC-A
  • EAN-13
  • EAN-8
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • Codablock
  • PDF-417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF
  • RSS-14
  • RSS Composite
  • Aztec Code
Encoding Technology:
RFID Encoder
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
  • Element Energy Equalizer
  • Rotatable Display
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
64 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
RFID:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Black Mark
  • Continuous Label
  • Die-cut Label
  • RFID Label
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Label Width:
4.49"
Maximum Label Length:
39"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL
  • ZPL 1
  • ZPL II
Power Description
Power Source:
AC Supply
Input Voltage:
  • 120 V AC
  • 230 V AC
Physical Characteristics
Height:
11.8"
Width:
9.6"
Depth:
14.9"
Weight (Approximate):
33.95 lb
Miscellaneous
Package Contents:
  • ZE500-4 RFID Label Printer Left-Handed
  • ZebraNet Connectivity Guide
  • Software & Drivers CD
  • North America Power Cords
  • User's Guide
  • ZPL II Programming Guide
Cables Included:
AC
Platform Supported:
PC
Certifications & Standards:
  • IEC 60950-1
  • EN55022
  • Class A
  • EN55024
  • EN61000-3-2, 3-3
  • NRTL
  • CE
  • FCC A
  • ICES-003
  • VCCI
  • C-Tick
  • CCC
  • NOM
  • Gost-R
  • S- Mark
  • KCC
  • BSMI
  • Unicode
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra ZE50043-L010R00Z Print Engine is also known as ZEB-ZE50043L010R00Z or ZE50043L010R00Z.
