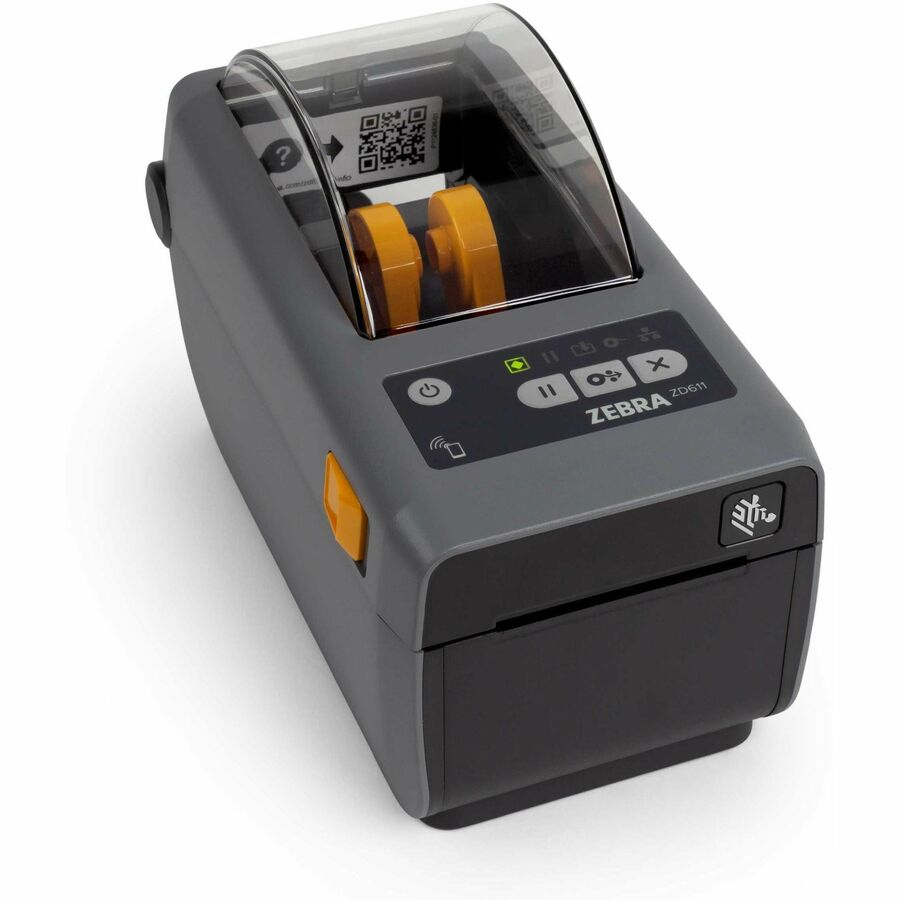

Zebra ZD6AH22-D01Q01EZ Barcode Label Printer

Part Number: ZD6AH22-D01Q01EZ
Model: ZD611
$892.66
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recommended Use
Label/Receipt Print
Print Color Capability
Monochrome
Maximum Mono Print Speed
7.99 in/s
Maximum Print Resolution (dpi)
203

Product Description:

  Direct Thermal Printer ZD611 Healthcare; 203 dpi USB USB Host Ethernet 802.11ax BT5.3 USA/Canada US Cord Swiss Font EZPL

Zebra ZD611 Barcode Label Printer Model Overview

The Zebra ZD611 printers are engineered to deliver high performance in a compact design, making them ideal for a wide array of applications. With a maximum print speed of 8 inches per second and unmatched reliability under tough environmental conditions, these printers ensure crisp and precise thermal transfer and direct thermal prints. Featuring an intuitive 4.3-inch full-color touch LCD interface and comprehensive connectivity options, the ZD611 simplifies setup and operation, making it an optimal choice for both office and healthcare settings.
Key Features:
  • Maximum print speed: 8 ips
  • Connectivity: Ethernet, USB 2.0, Bluetooth
  • Easy media loading: OpenACCESS™ design
  • Durability: Robust tolerance to temperature, humidity, and dust
  • Healthcare-ready: Disinfectant-ready and UV-resistant housing

Specifications:
  • Print resolution: 203 dpi (8 dots/mm) and 300 dpi (12 dots/mm)
  • Maximum print width: 2.2 in./56 mm
  • Memory: 512 MB Flash and 256 MB DDR3 SDRAM
  • Media thickness: 0.0024 in./0.06 mm min to 0.0075 in./0.1905 mm max
  • Operating temperature: 40° to 105°F (4.4° to 41°C)
  • Weight: ZD611 thermal transfer model - 3.59 lbs; ZD611 direct thermal model - 2.36 lbs
Zebra ZD6AH22-D01Q01EZ Barcode Label Printer Overview

Invest in the best: premium features, maximum performance and unmatched security for years of quality printing

You need a premium, compact printer that's feature-rich and built to perform flawlessly - day in and day out. Don't compromise. Get it all with Zebra's ZD611 desktop printers, featuring an innovative new architecture to power our ever-expanding printer capabilities and software. They offer unmatched security that's constantly evolving to safeguard your sensitive data and shield you from cyberattacks. And, add enhanced features, connectivity and media-handling options whenever you're ready. The full-color LCD touch display with intuitive menu - standard on all thermal transfer models - and increased remote-management capabilities make ZD611 printers easy to use. Together, these give you outstanding print performance, years of optimal use, industry-leading reliability and unparalleled intelligence and security.

Your Future Printing Starts Here | Technology for Today, Innovation for Tomorrow

Technology is constantly advancing and so will ZD600 Series printers. They're engineered to power future printing at the highest level with an innovative architecture that can perform more operations simultaneously and evolve with emerging technology. With the latest 802.11ax/Bluetooth® 5.3 option for the ZD600 Series, you can take advantage of your Wi-Fi™ 6/6E network upgrade and get best-in-class WPA3 security, lightning-fast speeds and enhanced roaming.

Enhance Productivity Sustainably With ZeroLiner

With the Zebra ZeroLiner Linerless Printing Solution, you can boost productivity with up to 50% more labels per roll, minimizing downtime from roll changes and eliminating the hassle of peeling backing liners. Embrace sustainability with reduced waste and CO2 emissions, thanks to the elimination of backing liners and reduced material usage. ZD611 and ZD621 linerless models are specifically designed and tested for use with Zebra ZeroLiner labels.

Expect the Best | Premium Printing Performance

Rely on the ZD611 to help you power through - day after day. From outstanding print quality to portability for application flexibility to emerging technology to field-installable options, the ZD611 stands apart. Available in direct thermal, thermal transfer, linerless, healthcare and RFID models, the ZD611 supports a wide variety of use cases.

Simple to Setup, Easy to Maintain | Operate with Ease, Securely

Backed by Zebra's innovative Print DNA software suite, ZD611 printers are incredibly simple to operate. Deploy them anywhere with setup tools, wizards and emulation capabilities. The intuitive user interface is easy to use with minimal training and allows you to see status at a glance with the five LED icons. Take advantage of robust remote management capabilities that alleviate IT burdens. And, built-in security hardens your infrastructure from cyberattacks.

Load Media Easily

Color-coded touch points and a new media-handling design guide you through speedy media changes to keep your printers operational and your workers on task. Replace ribbon intuitively and quickly with less mess, hassle and training time - and fewer calls into IT.

Engineered for Outstanding Print Quality

Like Zebra's industrial printers, the ZD600 Series thermal transfer printers include a media dancer to ensure maximum quality on every label and tag, regardless of print speed. Further boost print quality with the optional 300 dpi print resolution.

Technical Information
Recommended Use:
Label/Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
7.99 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
2.20"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 128
  • ISBT-128
  • Code 93
  • UPC-A
  • UPC-E
  • EAN-13
  • EAN-8
  • UPC
  • EAN With 2 and 5 Digit Extension
  • POSTNET
  • Plessey
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • Codablock
  • PDF417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • Micro PDF
  • AZTEC
  • 1D
  • 2D
Peel Facility:
Yes
Real Time Clock:
Yes
Application/Usage:
  • Retail
  • Hospitality
  • Healthcare
  • Government
Features:
  • LCD Display
  • Dual Wall Frame
Connectivity Technology:
Wired & Wireless
Printing Color:
Black
Fonts Included:
Swiss
Print Technology:
Direct Thermal
Memory
Standard Memory:
256 MB
Flash Memory:
512 MB
Interfaces/Ports
USB Host:
Yes
USB:
Yes
USB Standard:
USB 2.0
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Bluetooth:
Yes
Bluetooth Version:
5.3
Wireless LAN:
Yes
Wireless LAN Standard:
  • IEEE 802.11ac
  • IEEE 802.11ax
Near Field Communication (NFC):
Yes
Display & Graphics
Display Screen:
Yes
Screen Size:
4.3"
Display Screen Type:
LCD
Touchscreen:
Yes
Media Types & Handling
Media Type:
  • Label
  • Receipt
  • Fanfold
  • Roll Fed
  • Die-cut Label
  • Continuous Label
  • Tag Stock
  • Continuous Receipt
  • Wristband
Media Sensor:
  • Full Width Sensor
  • Moveable Reflective/Black Mark Sensor
  • Multi-position Transmissive/Gap Sensor
Media Thickness:
7.48 mil
Maximum Roll Diameter:
5"
Maximum Label Length:
39.02"
Fonts & Emulation
Language Emulation:
  • EZPL
  • ZPL II
  • EPL2
  • XML
  • ZPL
  • ZBI
  • EPL
Software
Operating System Supported:

Zebra Link-OS

Power Description
Power Source:
AC Supply
Frequency:
  • 60 Hz
  • 50 Hz
Environmental Conditions
Operating Temperature:
40°F (4.4°C) - 105°F (40.6°C)
Operating Relative Humidity:
10% - 90%
Storage Temperature:
-40°F (-40°C) - 140°F (60°C)
Storage Relative Humidity:
5% - 95%
Physical Characteristics
Form Factor:
Desktop
Height:
5.9"
Width:
4.5"
Depth:
8.7"
Weight (Approximate):
2.36 lb
Miscellaneous
Power Cable Localization:
US
Package Contents:
  • ZD611 Direct Thermal Printer
  • AC Power Supply
  • Power Cord(s)
  • USB Cable
  • Getting Started Guide
  • Regulatory Guide
  • ZD611 includes 0.5 core only
Cables Included:
USB
Power Adapter Included:
Yes
Compatibility:
  • iPad
  • iPhone
  • iPod
Platform Supported:
  • PC
  • iOS
  • Android
  • Windows
Certifications & Standards:

cTUVus

Energy Star:
Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 45101512
