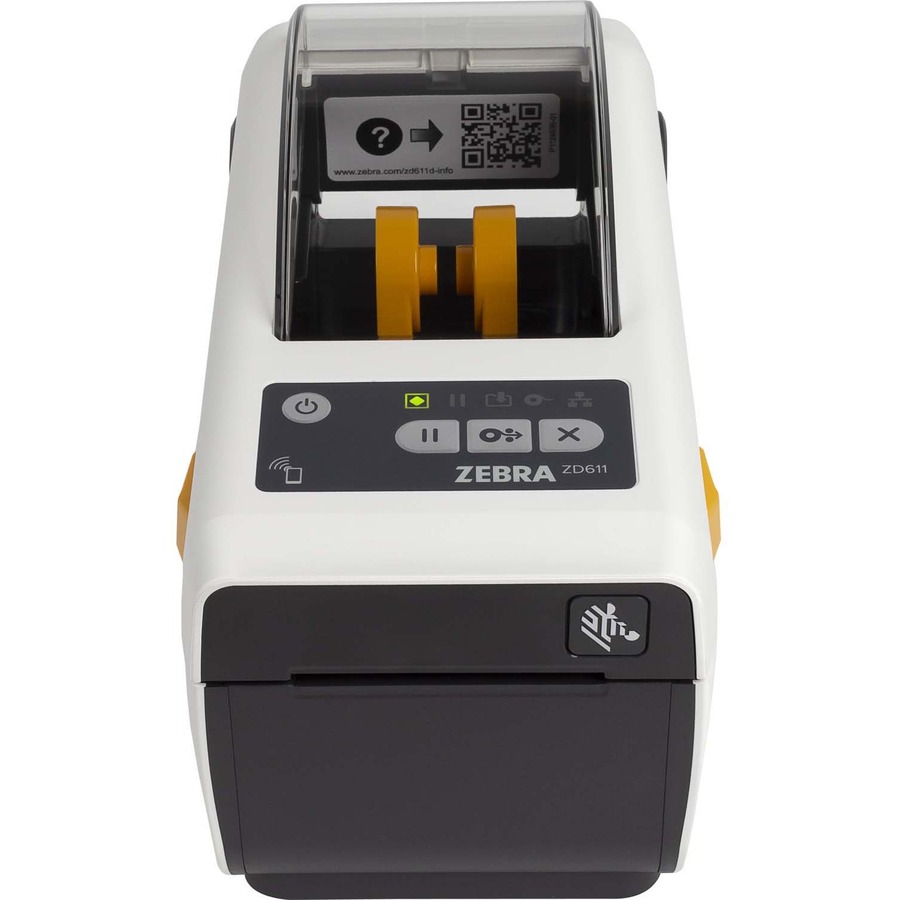

Zebra ZD611d – Barcode Label Printer – 300 dpi – Direct Thermal

Part Number: ZD6A023-D01B01EZ
Model: ZD611
3-year Premium Plus ($266.99)
3-year Premium ($112.99)
No Support
Add to My Shopping List Add to Compare
$726.96
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Direct Thermal
Interface Options
Bluetooth, Ethernet, USB, USB Host
Print Resolution
300 dpi

Product Description:

  Desktop Printers, Zebra ZD611d, Direct Thermal Printer, 300 dpi, USB, USB Host, Ethernet, Wi-Fi, BT4, USA/Canada, US Cord, Swiss Font, EZPL
Explore all Zebra ZD611 Barcode Label Printers
Add to Quote
Zebra ZD6A023-D01B01EZ Barcode Label Printer
Zebra ZD6A023-D01B01EZ Barcode Label Printer
Zebra ZD6A023-D01B01EZ Barcode Label Printer Zebra ZD6A023-D01B01EZ Barcode Label Printer
Full specifications (PDF)

Zebra ZD611 Barcode Label Printer Model Overview

The Zebra ZD611 printers are engineered to deliver high performance in a compact design, making them ideal for a wide array of applications. With a maximum print speed of 8 inches per second and unmatched reliability under tough environmental conditions, these printers ensure crisp and precise thermal transfer and direct thermal prints. Featuring an intuitive 4.3-inch full-color touch LCD interface and comprehensive connectivity options, the ZD611 simplifies setup and operation, making it an optimal choice for both office and healthcare settings.
Key Features:
  • Maximum print speed: 8 ips
  • Connectivity: Ethernet, USB 2.0, Bluetooth
  • Easy media loading: OpenACCESS™ design
  • Durability: Robust tolerance to temperature, humidity, and dust
  • Healthcare-ready: Disinfectant-ready and UV-resistant housing

Specifications:
  • Print resolution: 203 dpi (8 dots/mm) and 300 dpi (12 dots/mm)
  • Maximum print width: 2.2 in./56 mm
  • Memory: 512 MB Flash and 256 MB DDR3 SDRAM
  • Media thickness: 0.0024 in./0.06 mm min to 0.0075 in./0.1905 mm max
  • Operating temperature: 40° to 105°F (4.4° to 41°C)
  • Weight: ZD611 thermal transfer model - 3.59 lbs; ZD611 direct thermal model - 2.36 lbs
Zebra ZD6A023-D01B01EZ Barcode Label Printer Overview

Invest in the best: premium features, maximum performance and unmatched security for years of quality printing

You need a premium, compact printer that's feature-rich and built to perform flawlessly - day in and day out. Don't compromise. Get it all with Zebra's ZD611 desktop printers, featuring an innovative new architecture to power our ever-expanding printer capabilities and software. They offer unmatched security that's constantly evolving to safeguard your sensitive data and shield you from cyberattacks. And, add enhanced features, connectivity and media-handling options whenever you're ready. The full-color LCD touch display with intuitive menu - standard on all thermal transfer models - and increased remote-management capabilities make ZD611 printers easy to use. Together, these give you outstanding print performance, years of optimal use, industry-leading reliability and unparalleled intelligence and security.

Expect the Best | Premium Printing Performance

Rely on the ZD611 to help you power through - day after day. From outstanding print quality to portability for application flexibility to emerging technology to field-installable options, the ZD611 stands apart. Available in direct thermal, thermal transfer, linerless, healthcare and RFID models, the ZD611 supports a wide variety of use cases.

Simple to Setup, Easy to Maintain | Operate with Ease, Securely

Backed by Zebra's innovative Print DNA software suite, ZD611 printers are incredibly simple to operate. Deploy them anywhere with setup tools, wizards and emulation capabilities. The intuitive user interface is easy to use with minimal training and allows you to see status at a glance with the five LED icons. Take advantage of robust remote management capabilities that alleviate IT burdens. And, built-in security hardens your infrastructure from cyberattacks.

Load Media Easily

Color-coded touch points and a new media-handling design guide you through speedy media changes to keep your printers operational and your workers on task. Replace ribbon intuitively and quickly with less mess, hassle and training time - and fewer calls into IT.

Your Future Printing Starts Here | Technology for Today, Innovation for Tomorrow

Technology is constantly advancing and so will ZD611 printers. They're engineered to power future printing at the highest level with an innovative architecture that can perform more operations simultaneously and evolve with emerging technology.

Engineered for Outstanding Print Quality

Like Zebra's industrial printers, the ZD611 thermal transfer printer includes a media dancer to ensure maximum quality on every label and tag, regardless of print speed. Further boost print quality with the optional 300 dpi print resolution.

Full specifications (PDF)
Technical Information
Recommended Use:
Label/Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
5.98 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
2.13"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 128
  • ISBT-128
  • Code 93
  • UPC-A
  • UPC-E
  • EAN-13
  • EAN-8
  • UPC
  • EAN With 2 and 5 Digit Extension
  • POSTNET
  • Plessey
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • Codablock
  • PDF417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • Micro PDF
  • AZTEC
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
  • LCD Display
  • Dual Wall Frame
Connectivity Technology:
Wireless
Optional Connectivity:
Serial (RS-232)
Print Technology:
Direct Thermal
Memory
Standard Memory:
256 MB
Interfaces/Ports
USB Host:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Bluetooth:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11ac
Near Field Communication (NFC):
Yes
Display & Graphics
Display Screen:
Yes
Screen Size:
4.3"
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Label
  • Receipt
  • Fanfold
  • Roll Fed
  • Die-cut Label
  • Continuous Label
  • Tag Stock
  • Continuous Receipt
  • Wristband
Media Sensor:
  • Full Width Sensor
  • Moveable Reflective/Black Mark Sensor
  • Multi-position Transmissive/Gap Sensor
Media Thickness:
7.50 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
2.24"
Maximum Label Length:
39.02"
Fonts & Emulation
Language Emulation:
  • EZPL
  • ZPL II
  • EPL2
  • XML
  • ZPL
  • ZBI
  • EPL
Software
Operating System Supported:

Link-OS

Power Description
Power Source:
AC Supply
Environmental Conditions
Operating Temperature:
40°F (4.4°C) - 105°F (40.6°C)
Operating Relative Humidity:
10% - 90%
Storage Temperature:
-40°F (-40°C) - 140°F (60°C)
Storage Relative Humidity:
5% - 95%
Physical Characteristics
Height:
5.9"
Width:
4.5"
Depth:
8.7"
Weight (Approximate):
2.36 lb
Miscellaneous
Power Cable Localization:
US
Package Contents:
  • ZD611 Direct Thermal Printer
  • AC Power Supply
  • Power Cord
  • USB Cable
  • Quick Start Guide
  • Regulatory Guide
Cables Included:
USB
Power Adapter Included:
Yes
Platform Supported:
  • PC
  • iOS
  • Android
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 45101512

Recommended Accessories

Category

  • Batteries (1)
  • Cables, Connectors, and Adapters (1)
  • Carrying and Protective Accessories (2)
  • Printer Accessories (43)
  • Spare Parts (3)
  • Wireless Adapters (1)

Recommended Accessories for Model: Zebra ZD6A023-D01B01EZ Barcode Label Printer

Top Batteries Purchased With Zebra ZD6A023-D01B01EZ

  • Zebra P1080383-603 Battery
    Zebra P1080383-603 Battery
    Batteries, Zebra, Kit, Battery For Desktop Printers, ZD41X Series, ZD611 Series, ZD42X Series, ZD62X Series, ZD42X Cartridge
    In Stock
    $724.37
    Add to Quote

Top Cables, Connectors, and Adapters Purchased With Zebra ZD6A023-D01B01EZ

Top Carrying and Protective Accessories Purchased With Zebra ZD6A023-D01B01EZ

Top Printer Accessories Purchased With Zebra ZD6A023-D01B01EZ

See All Printer Accessories for Zebra ZD6A023-D01B01EZ Barcode Label Printer >

Top Spare Parts Purchased With Zebra ZD6A023-D01B01EZ

Top Wireless Adapters Purchased With Zebra ZD6A023-D01B01EZ

  • Zebra P1112640-017A Wireless Adapters
    Zebra P1112640-017A Wireless Adapters
    Wireless Adapters, Zebra, Kit, Wireless Module, Wi-Fi 802.11AC, Mfi 3.0, Bluetooth 4.1, USA & Canada, ZD421D, ZD621D, ZD421T, ZD411D, ZD411T, ZD611D, ZD611T
    In Stock
    $189.79
    Add to Quote

Frequently Asked Questions

The Zebra ZD611d delivers a maximum print speed of 6 inches per second at 300 dpi resolution, making it ideal for high-quality barcode and label printing in warehouse and logistics environments. The printer supports both 203 dpi and 300 dpi resolutions, with a maximum print width of 2.2 inches at 203 dpi. We offer this model with factory-installed 300 dpi capability to meet your demanding labeling requirements.

The ZD611d includes multiple connectivity options: USB 2.0, USB Host, Ethernet, Wi-Fi, and Bluetooth 4.0 (BLE), giving you flexibility in how you integrate it into your network. For best printing performance, we recommend using USB, Ethernet, or Wi-Fi connections, while Bluetooth Low Energy is optimized for printer setup and light data transfer via the mobile app. Contact us today to discuss which connectivity option works best for your operation.

Yes, we offer healthcare-specific variants of the ZD611d that feature a healthcare-preferred white color scheme and an IEC 60601-1 certified power supply for compliance with healthcare standards. The printer's disinfectant-ready, easy-to-clean plastics make it ideal for medical facilities and regulated environments. Visit barcodesinc.com to explore our healthcare-compliant printer options.

The ZD611d supports ZPL II and EPL2 programming languages, along with XML and ZBI firmware options for advanced integration. The printer can handle both linear and 2-D barcode symbologies, includes 16 resident expandable ZPL II bitmap fonts plus two scalable fonts, and offers Unicode compliance for multi-language printing. This makes it highly versatile for global supply chain and logistics operations available from us.

The ZD611d supports direct thermal and thermal transfer printing with a maximum print width of 2.2 inches and can handle media with a maximum outside diameter of 5 inches. It features OpenACCESS design for easy media loading, multi-position transmissive and full-width reflective sensors, and a fan-fold media feed slot for flexible label configurations. The printer's field-installable media handling solutions allow you to adapt to changing operational demands.

The ZD611d is equipped with Zebra's Print DNA software suite, which includes PrintSecure—a comprehensive security feature designed to protect against cyberattacks and costly downtime. The printer also features a Real Time Clock and Link-OS operating system for secure, authenticated printing operations. We recommend the ZD611d for enterprises requiring enterprise-grade security in their label printing infrastructure.

The Zebra ZD6A023-D01B01EZ Barcode Label Printer is also known as ZEB-ZD6A023D01B01EZ or ZD6A023D01B01EZ.
