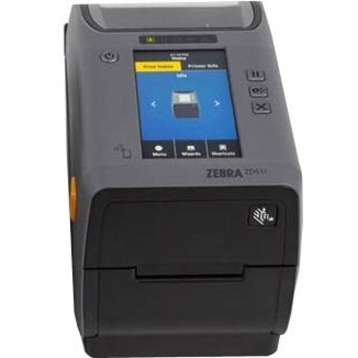

The Zebra ZD611 printers are engineered to deliver high performance in a compact design, making them ideal for a wide array of applications. With a maximum print speed of 8 inches per second and unmatched reliability under tough environmental conditions, these printers ensure crisp and precise thermal transfer and direct thermal prints. Featuring an intuitive 4.3-inch full-color touch LCD interface and comprehensive connectivity options, the ZD611 simplifies setup and operation, making it an optimal choice for both office and healthcare settings. Key Features:
Maximum print speed: 8 ips
Connectivity: Ethernet, USB 2.0, Bluetooth
Easy media loading: OpenACCESS™ design
Durability: Robust tolerance to temperature, humidity, and dust
Healthcare-ready: Disinfectant-ready and UV-resistant housing
Specifications are provided for reference and are based on printer tests using Zebra brand supplies. Results may vary in actual application settings or when using other than recommended Zebra supplies. Zebra recommends always qualifying any application with thorough testing.
What is the maximum print speed of the Zebra ZD611d printer?
The Zebra ZD611d delivers a maximum print speed of 6 inches per second, making it suitable for moderate-volume labeling operations in warehouses and logistics environments. This speed, combined with 203 dpi resolution, provides an excellent balance between throughput and label quality for barcode printing applications.
What connectivity options does the ZD611d support?
The ZD611d offers multiple connectivity options including USB 2.0, USB Host, Ethernet, Wi-Fi, and Bluetooth 4.0 (BLE), giving you flexibility in how you integrate it into your warehouse network. We recommend using Bluetooth Low Energy for printer setup and light data transfer, while leveraging Ethernet or Wi-Fi for optimal printing performance in production environments.
Can the Zebra ZD611d printer handle both direct thermal and thermal transfer printing?
Yes, the ZD611d supports both direct thermal and thermal transfer printing methods, allowing you to print barcodes, text, and graphics on various label materials. This versatility makes it an excellent choice for operations that need to switch between label types without changing equipment.
What programming languages does the ZD611d support?
The ZD611d supports ZPL II® and EPL2™ programming languages, which are industry-standard formats for barcode printer control. It also includes 16 resident expandable ZPL II bitmap fonts and two resident scalable ZPL fonts, plus Unicode compliance for multi-language printing capabilities.
Is the Zebra ZD611d suitable for healthcare environments?
Yes, healthcare-specific variants of the ZD611d are available featuring a healthcare-preferred white color scheme and IEC 60601-1 certified healthcare-compliant power supply. These models are also designed with disinfectant-ready, easy-to-clean plastics to meet strict healthcare facility requirements.
What is the maximum label width the ZD611d can print?
The ZD611d has a maximum print width of 2.2 inches (56 mm) at 203 dpi resolution, with support for media up to 5 inches (127 mm) outside diameter on the roll. This compact 2-inch desktop design makes it ideal for space-constrained warehouse and logistics operations while maintaining excellent print quality.
The Zebra ZD6A022-D11B01EZ Barcode Label Printer is also known as
ZEB-ZD6A022D11B01EZ
or ZD6A022D11B01EZ.
Full specifications (PDF)
