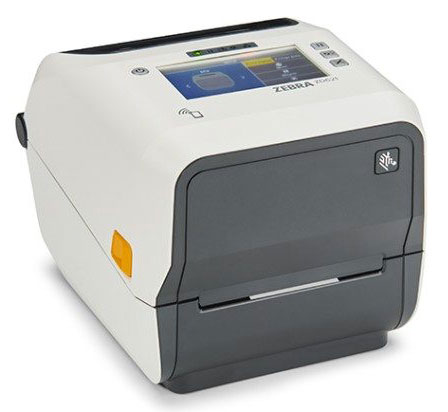

Zebra ZD62H43-T01F00EZ Barcode Label Printer

Zebra ZD6AH43-301F00EZ Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZD6AH43-301F00EZ Barcode Label Printer.
Zebra ZD620t-HC - Healthcare Desktop Label Printer, Zebra ZD620t-HC, Thermal Transfer, 300 dpi, 6ips, USB/USB Host/Bluetooth/Serial/Ethernet, 4-inch Print Width
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Bluetooth, Ethernet, Serial (RS-232), USB, USB Host
Print Resolution
300 dpi
Max Print Width
4.75 inch
Ribbon Core Size
1 inch
  • Print methods: Thermal Transfer or Direct Thermal
  • IEC 60601-1 compliant power supply and healthcare
  • Wipeable plastics
  • ZPL and EPL programming languages
  • 5 status icon, 3 button user interface
  • USB 2.0, USB Host, Serial, Ethernet, BTLE
  • Media dancer
  • OpenACCESS™ for easy media loading
  • Dual-wall frame construction
  • ENERGY STAR qualified
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Zebra ZD620-HC Barcode Label Printer Model Overview
Zebra's ZD620 Healthcare Desktop Printers provide maximum print quality, efficiency and manageability. The ZD620-HC rises above conventional desktop printers, offering premium print quality and state of the art features. Available in direct thermal and thermal transfer models that deliver the most standard features of any Zebra desktop printer, as well as an optional LCD and 10-button interface that simplify printer setup and status. The ZD620-HC was designed for healthcare and is ready for constant disinfecting. With its optional 300 dpi printing, the tiniest labels are crisp and legible. Every ZD620-HC comes with Ethernet, Serial, USB 2.0 and USB Host, as well as Bluetooth Low Energy (BLE), which enables printing from any iOS device. The ZD620-HC delivers the print speed, print quality and printer manageability you need to boost productivity, accuracy and the quality of care.
Zebra ZD62H43-T01F00EZ Barcode Label Printer Overview
ZD620 Performance Healthcare Desktop Printers

MAXIMUM PRINT QUALITY, EFFICIENCY AND MANAGEABILITY


As a healthcare provider, you need to give your healthcare professionals the tools to provide the very best in patient care, every second of every day. Zebra's ZD620-HC rises above conventional desktop printers with premium print quality and state of the art features. Available in both direct thermal and thermal transfer models, the ZD620-HC offers the most standard features of any Zebra desktop printer, as well as an optional color LCD and 10-button interface that simplify printer setup and status. Designed for healthcare, the ZD620-HC is ready for constant disinfecting and offers a healthcare-compliant power supply. With its optional 300 dpi printing, the tiniest labels are crisp and legible. The ZD620 runs Link-OS® and is supported by our powerful Print DNA suite of applications, utilities and developer tools that deliver a superior printing experience through better performance, simplified remote manageability and easier integration. The Zebra ZD620 - delivering the print speed, print quality and printer manageability you need to keep boost productivity, accuracy and the quality of care.

Comprehensive connectivity options

With comprehensive connection options, you can connect the ZD620-HC to your existing wired and wireless networks, or directly to any PC. Every ZD620-HC comes with Ethernet, Serial, USB 2.0 and USB Host, as well as Bluetooth Low Energy (BLE), which enables printing from any iOS device. Wireless models include fast 802.11ac Wi-Fi and Bluetooth 4.1. And using the included Print Touch tag (NFC), users can simply tap a compatible mobile device on the ZD620-HC to pair and print - as well as instantly access Zebra's extensive knowledge base of how-to videos.

Movable sensor for comprehensive media compatibility

While Zebra Certified Printer Supplies provide optimal printer performance, the ZD620-HC's movable media sensor lets you use virtually any media from any manufacturer.

Easy to clean and sanitize with a healthcare compliant power supply

Disinfectant-ready plastics and a sealed button interface make the ZD620-HC easy to clean and disinfect, helping prevent the spread of germs in hospitals and clinics. With UV-resistant housing, the ZD620-HC supports the growing use of UV-cleaning protocols. And the power supply is IEC 60601-1 compliant for use in healthcare facilities.

Sharp 300 dpi printing for crisp labels

The ZD620-HC offers 300 dpi high resolution printing - ideal for printing the tiny labels for a wide variety of items, from patient records and patient wristbands to medication prescriptions and tiny specimen vials. And if you don't need 300 dpi printing today, you can easily change it onsite using an accessory kit.
Technical Information
Recommended Use:
Label/Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
7.99 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.25"
Application/Usage:
Desktop
Memory
Standard Memory:
256 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Bluetooth:
Yes
Wireless LAN:
Yes
Media Types & Handling
Media Type:
  • Tag
  • Label
  • Receipt
  • Black Mark
  • Reflective
  • Gap
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Roll
  • Tag Stock
  • Continuous Receipt
  • Wristband
Maximum Roll Diameter:
5"
Maximum Label Width:
4.65"
Maximum Label Length:
39.02"
Power Description
Power Source:
AC Supply
Physical Characteristics
Height:
7.6"
Width:
8"
Depth:
10.5"
Weight (Approximate):
5.50 lb
Miscellaneous
Package Contents:
  • ZD620d-HC Direct Thermal Printer
  • Power Cords
  • USB Cable
  • Quick Start Guide
  • Regulatory Guide
Cables Included:
  • USB
  • AC
Platform Supported:
  • PC
  • iOS
Energy Star:
Yes
Country of Origin:
China
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra ZD62H43-T01F00EZ Barcode Label Printer is also known as ZEB-ZD62H43T01F00EZ or ZD62H43T01F00EZ.
